Description
5.5" (720 x 1440), 2GHz, Android 12, 4GB/64GB, BT/WLAN, 4000mAh

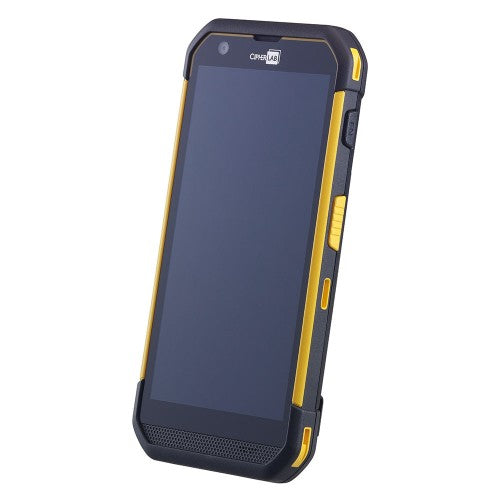

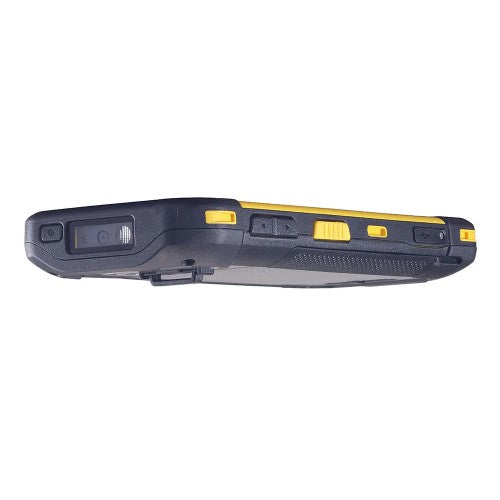

The CipherLab RS36 touch mobile computer is the upgrade to the hugely successful RS35. Built on Android 12 with a commitment to Android 14, the RS36 offers a familiar and user-friendly interface that shortens the learning and onboarding process. Its advanced scanning and reading capabilities, including 1D and 2D barcode scanning, HF RFID functionality and contactless NFC applications, make it ideal for retail, transportation, and logistics operations.
The RS36 features a powerful processor, high-resolution camera, Wi-Fi 6 transmission, Bluetooth 5.1 connectivity, OCR solution, sunlight-readable screen, and rugged design with IP65 and IP68 ratings. The RS36 is the perfect handheld terminal for mobile and frontline employees.
Description
The CipherLab RS36 touch mobile computer is the upgrade to the hugely successful RS35. Built on Android 12 with a commitment to Android 14, the RS36 offers a familiar and user-friendly interface that shortens the learning and onboarding process. Its advanced scanning and reading capabilities, including 1D and 2D barcode scanning, HF RFID functionality and contactless NFC applications, make it ideal for retail, transportation, and logistics operations.
The RS36 features a powerful processor, high-resolution camera, Wi-Fi 6 transmission, Bluetooth 5.1 connectivity, OCR solution, sunlight-readable screen, and rugged design with IP65 and IP68 ratings. The RS36 is the perfect handheld terminal for mobile and frontline employees.
Specifications
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Display | IPS |
| Touchscreen | Yes |
| Display resolution | 720 x 1440 pixels |
| Display diagonal | 14 cm (5.5") |
| Display glass type | Gorilla Glass |
| Memory | |
| Internal memory | 4 GB |
| Maximum memory card size | 2 TB |
| Internal memory type | LPDDR4 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 64 GB |
| Flash memory type | UFS |
| Processor | |
| Processor frequency | 2 GHz |
| Processor manufacturer | Qualcomm |
| Processor family | Qualcomm |
| Number of cores | 8 |
| Processor model | 4290 |
| Network | |
| Near Field Communication (NFC) | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Data network | Edge, GPRS, GSM, HSPA+, LTE, UMTS |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| 4G standard | LTE-TDD & LTE-FDD |
| GPS Performance | |
| GLONASS | Yes |
| GPS (satellite) | Yes |
| Assisted GPS (A-GPS) | Yes |
| BeiDou | Yes |
| Galileo | Yes |
| Camera | |
| Built-in flash | Yes |
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 16 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Audio | |
| Noise-canceling | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Performance | |
| RFID reader | Yes |
| Barcode reader | Yes |
| International Protection (IP) code | IP65, IP68 |
| Product colour | Black |
| Phone function | Yes |
| Vibrating alert | Yes |
| Scanner type | 2D |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
| Software | |
| Operating system installed | Android 12 |
| Power | |
| Battery voltage | 3.85 V |
| Battery capacity | 4000 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 12 h |
| Weight & dimensions | |
| Width | 76.8 mm |
| Depth | 17.9 mm |
| Height | 165 mm |
| Weight | 288 g |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Wireless LAN features | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Data transmission | |
| Data network | Edge, GPRS, GSM, HSPA+, LTE, UMTS |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Technical details | |
| RFID reader | Yes |
| Barcode reader | Yes |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| International Protection (IP) code | IP65, IP68 |
| Product colour | Black |
| Phone function | Yes |
| Vibrating alert | Yes |
| Scanner type | 2D |
