4-port 1G/10G LAN/WAN NIM with IEEE 802.1AE MACsec
Description

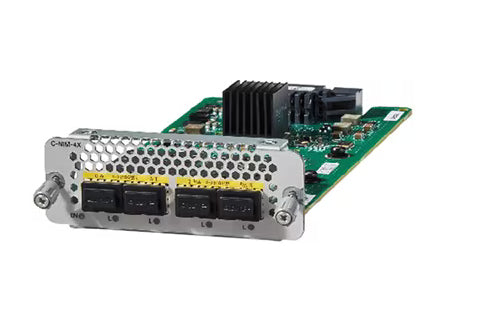

The C-NIM-4X is a Next-Generation 1G/10G LAN/WAN module with local Layer 2 switching capabilities on all four ports. This provides a price-effective, low-density 4-port Layer 2 LAN switch with capacity for switching four Small form-Factor Pluggable (SFP)/SFP+ ports at speeds up to 10 Gbps. The two highest-numbered ports can be configured for native Layer 3 operation. Configuring ports for Layer 3 will provide full feature parity with the router’s embedded WAN ports. This module provides high-speed WAN connectivity through four ports supporting serial gigabit media-independent interface (SGMII)/1000BASE-X-based SFP and 10GBASE-R-based SFP+ pluggables. A 100-Mbps optic pluggable connection can also be supported by using the GLC-GE-100FX SFP transceiver. The four 1G/10G WAN ports are connected to the backplane using a single 10-Gbps-capable internal link. When used at maximum capacity, they thus form what is known as an oversubscribed connection of 4 to 1. IEEE 802.1AE MACsec is supported as described in the Product Overview.
Specifications
| Network |
|---|
| Ethernet interface type |
10 Gigabit Ethernet, Gigabit Ethernet |
| Optical fiber |
|---|
| Fiber optic connector |
SFP, SFP+ |
| Ports & interfaces |
|---|
| Fiber ports quantity |
4 |
| Performance |
|---|
| Compatibility |
Catalyst 8300 Series |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-5 - 55 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
|---|
| Weight |
195 g |
| Width |
89 mm |
| Depth |
184 mm |
| Height |
32 mm |
| Technical details |
|---|
| Fiber optic connector |
SFP, SFP+ |
| Ethernet interface type |
10 Gigabit Ethernet, Gigabit Ethernet |
| Compatibility |
Catalyst 8300 Series |
