Description
24 fixed 1/10Gbps SFP+ ports, Layer 2/Layer 3 (up to 480Gbps), 2x 10/100/1000Mbps managenemt ports, RS-232, USB, 1RU

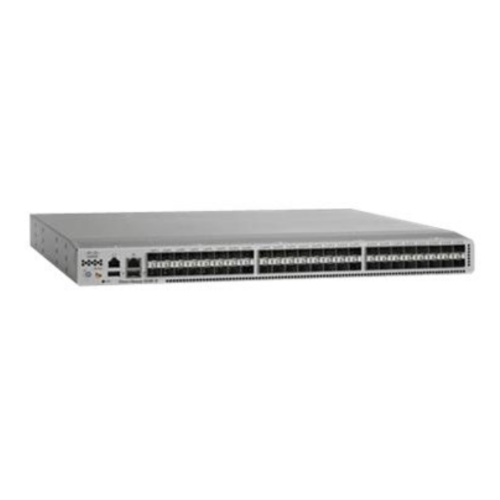

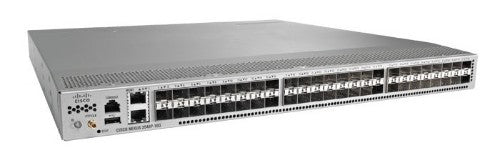

The Cisco Nexus 3524 Switch, part of the Unified Fabric Family, is well suited for mainstream top-of-rack (TOR) data center deployments. It offers wire-rate Layer 2 and Layer 3 switching with a comprehensive feature set, including Algo Boost technology, and ultra-low latency. All comes in a compact, cost effective, 1-rack-unit (1RU) form factor.
Features and Capabilities
Algo Boost technology allows the Cisco Nexus 3524 to achieve exceptionally low latencies of 250 nanoseconds (ns) or less for all workloads. That includes unicast and multicast, and Layer 2 and 3, regardless of the features applied.
Among other benefits:
- Warp mode can further reduce latency to 190 ns for small-to-midsize Layer 2 and 3 deployments.
- Warp SPAN helps enables stock market data delivery to trading servers in as little as 50 ns.
- Active Buffer Monitoring helps you take advantage of market volatility and handle micro bursts.
- Technology supports Network Address Translation (NAT) for trade execution on any venue, without a latency penalty.
- Embedded Remote SPAN with nanosecond timestamps helps you monitor your traffic with unparalleled precision.
Comprehensive Feature Set with Cisco NX-OS
The Cisco Nexus 3524 is powered by the data-center-class Cisco NX-OS operating system. Features include:
- Full-featured unicast protocols including BGP, OSPF, EIGRP, and RIP
- Multicast protocols include PIM-SM, PIM-SSM, and MSDP
- Full support for access control lists (ACLs; port, VLAN, and routed) and quality of service (QoS; queueing and marking)
- Full support for troubleshooting tools such as Switched Port Analyzer (SPAN) and Ethanalyzer
- Switch management by Cisco Prime Data Center Network Manager (DCNM)
Description
High Performance with Flexible DeploymentsThe Cisco Nexus 3524 Switch, part of the Unified Fabric Family, is well suited for mainstream top-of-rack (TOR) data center deployments. It offers wire-rate Layer 2 and Layer 3 switching with a comprehensive feature set, including Algo Boost technology, and ultra-low latency. All comes in a compact, cost effective, 1-rack-unit (1RU) form factor.
Features and Capabilities
Algo Boost technology allows the Cisco Nexus 3524 to achieve exceptionally low latencies of 250 nanoseconds (ns) or less for all workloads. That includes unicast and multicast, and Layer 2 and 3, regardless of the features applied.
Among other benefits:
- Warp mode can further reduce latency to 190 ns for small-to-midsize Layer 2 and 3 deployments.
- Warp SPAN helps enables stock market data delivery to trading servers in as little as 50 ns.
- Active Buffer Monitoring helps you take advantage of market volatility and handle micro bursts.
- Technology supports Network Address Translation (NAT) for trade execution on any venue, without a latency penalty.
- Embedded Remote SPAN with nanosecond timestamps helps you monitor your traffic with unparalleled precision.
Comprehensive Feature Set with Cisco NX-OS
The Cisco Nexus 3524 is powered by the data-center-class Cisco NX-OS operating system. Features include:
- Full-featured unicast protocols including BGP, OSPF, EIGRP, and RIP
- Multicast protocols include PIM-SM, PIM-SSM, and MSDP
- Full support for access control lists (ACLs; port, VLAN, and routed) and quality of service (QoS; queueing and marking)
- Full support for troubleshooting tools such as Switched Port Analyzer (SPAN) and Ethanalyzer
- Switch management by Cisco Prime Data Center Network Manager (DCNM)
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| Data transmission | |
| Number of VLANs | 4096 |
| Jumbo frames | 9216 |
| Throughput | 360 Mpps |
| Packet buffer memory | 18 MB |
| MAC address table | 64000 entries |
| Switching capacity | 480 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 18 MB |
| Mean time between failures (MTBF) | 317030 h |
| Flash memory | 2048 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Mean time between failures (MTBF) | 317030 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Console port | RS-232 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| IP routing | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| Security | |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SSHv2, SNMP v1/v2/v3, RADIUS, TACACS+ |
| Supported network protocols | IPv4, IPv6 |
| Memory | |
| Packet buffer memory | 18 MB |
| Flash memory | 2048 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 193 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 102 W |
| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 904 BTU/h |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 467 mm |
| Height | 43.6 mm |
| Weight | 7.9 kg |
