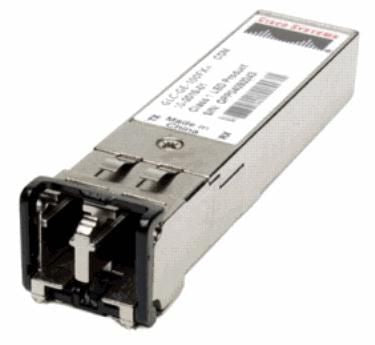

10GBASE-LR SFP+ transceiver module for SMF, 1310-nm wavelength, LC duplex connector, Refurbished
Description
Cisco offers a comprehensive range of pluggable optical modules for the Cisco ONS family of multiservice platforms. The wide variety of modules gives you flexible and cost-effective options for all types of client interfaces. Cisco offers a range of GBICs for Gigabit Ethernet use, a wide variety of SFP modules, XFP modules and has recently introduced SFP+, CXP and CFP pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Wavelength |
1310 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Duplex system |
Full |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Single-mode fiber (SMF) supported |
Yes |
| SFP transceiver standard |
LR |
| Hot-Plug support |
Yes |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Hot-Plug support |
Yes |
| Certification |
MSA |
| Certificates |
|---|
| Certification |
MSA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Weight & dimensions |
|---|
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Height |
8.5 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Hot-Plug support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Wavelength |
1310 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Duplex system |
Full |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
