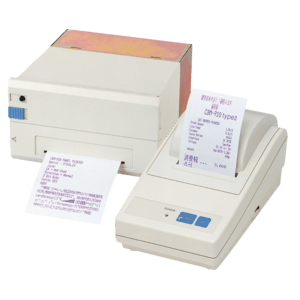

Citizen CBM-920II Wired Dot matrix POS printer

Serial dot impact, 150 mm/s, RS232, 0.47 kg

Description

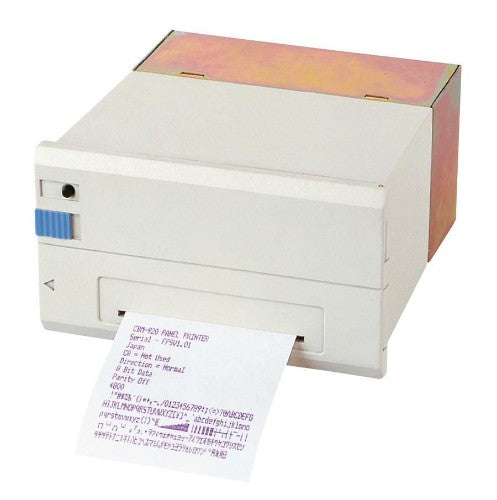

The CBM920II is built for panel mountingI. The machine also incorporates specialised auto loading and a paper end sensor for optimum efficiency. Robust construction gives total reliability, with a MCBF of at least 1.0 million lines, while the capability of bit image graphics printing and an integral memory switch increase flexibility and functionality still further.

Specifications

Printing
Colour	No
Character sets	852, 857, 863, 866, Katakana, WPC1252
Type	POS printer
Print technology	Dot matrix
Print speed	150 mm/sec
Character size	1.08 x 2 mm
Performance
Character sets	852, 857, 863, 866, Katakana, WPC1252
Type	POS printer
Print technology	Dot matrix
Print speed	150 mm/sec
Character size	1.08 x 2 mm
Paper handling
Supported paper width	57.5 mm
Printing media thickness	130 µm
Maximum roll diameter	6.9 cm
Maximum printing width	5.75 cm
Ports & interfaces
Connectivity technology	Wired
Serial ports quantity	1
Network
Ethernet LAN	No
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Dot matrix
Print speed	150 mm/sec
Character size	1.08 x 2 mm
Print quality
Maximum printing width	5.75 cm
Technical details
Character sets	852, 857, 863, 866, Katakana, WPC1252
Ribbon life	1.5 million characters
Maximum printing width	5.75 cm
Product colour	White
Buffer size	2 KB
Colour	No
Harmonized System (HS) code	84433210
Features
Character sets	852, 857, 863, 866, Katakana, WPC1252
Ribbon life	1.5 million characters
Product colour	White
Design
Product colour	White
Memory
Buffer size	2 KB
Power
Power source type	DC
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 85%
Weight & dimensions
Width	106 mm
Depth	180 mm
Height	88 mm
Weight	470 g
Other features
Buffer size	2 KB
