Description
CMP-20II, CPCL/ESC, 203 dpi, 80 mm/s, USB, Serial, Bluetooth, 96 x 136 x 58 mm, 442 g
Key Features
- High capacity 2-inch diameter media roll
- Long life Lithium Ion batteries
- Bluetooth 4.2 Low Energy
- 2.4 and 5.0 Ghz Wireless LAN
Description

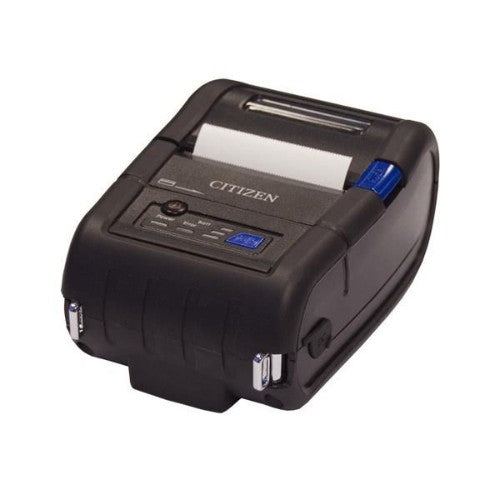

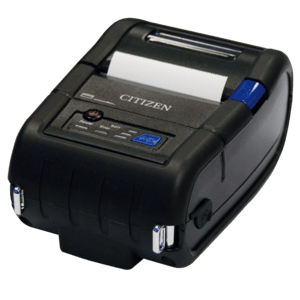

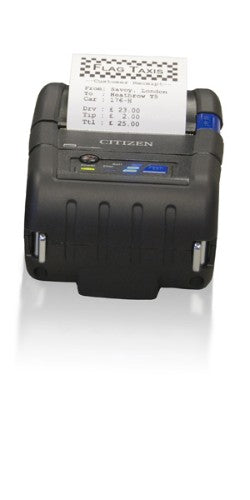

The CMP-20II mobile printer provides compact and robust printing virtually anywhere, with both Bluetooth and WiFi connectivity. Quick and simple to use, the CPM-20II is designed to save you time when printing 2 inch wide mobile receipts. Fast operation and reliable printing is assured, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.Specifications
| Printing | |
|---|---|
| Type | Mobile printer |
| Print technology | Thermal |
| Print speed | 80 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Performance | |
| Type | Mobile printer |
| Print technology | Thermal |
| Print speed | 80 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Paper handling | |
| Supported paper width | 58 mm |
| Printing media thickness | 65 µm |
| Maximum roll diameter | 4.8 cm |
| Maximum printing width | 4.8 cm |
| Ports & interfaces | |
| Standard interfaces | Bluetooth, Serial, USB |
| Connectivity technology | Wired & Wireless |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Bluetooth | Yes |
| USB port | Yes |
| USB connector | Mini-USB Type-B |
| Serial interface | Yes |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Print technology | |
| Type | Mobile printer |
| Print technology | Thermal |
| Print speed | 80 mm/sec |
| Print quality | |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.8 cm |
| Technical details | |
| International Protection (IP) code | IP42 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mobile operating systems supported | Android, Windows Mobile 5, Windows Mobile 6, iOS |
| Maximum printing width | 4.8 cm |
| Product colour | Black |
| Harmonized System (HS) code | 84433210 |
| Features | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Page description languages | CPCL-native, ESC/POS |
| Design | |
| Product colour | Black |
| Power | |
| Rechargeable | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption | 1200 mA |
| Power source type | Battery |
| Battery voltage | 7.4 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery recharge time | 2 h |
| Battery life (max) | 1.5 h |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 35 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mobile operating systems supported | Android, Windows Mobile 5, Windows Mobile 6, iOS |
| Weight & dimensions | |
| Width | 96 mm |
| Depth | 136 mm |
| Height | 58 mm |
| Weight | 442 g |
| Packaging data | |
| Cables included | Serial |
| Packaging content | |
| Cables included | Serial |
| Quick start guide | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mobile operating systems supported | Android, Windows Mobile 5, Windows Mobile 6, iOS |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| Rechargeable | Yes |
| International Protection (IP) code | IP42 |
