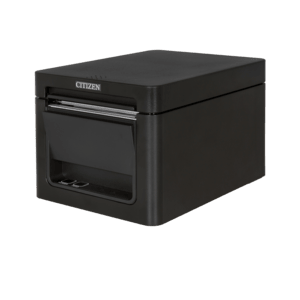

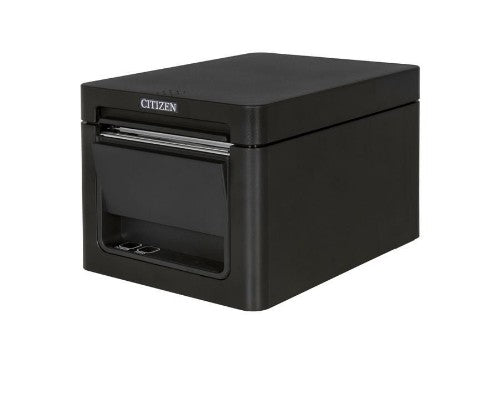

Citizen CT-E651 203 x 203 DPI Wired Direct thermal POS printer

Line thermal dot, 203x203 DPI, 300mm/s max., USB, 50 W, DC 24V, 1.3 kg, Black

Description

- High-speed printing at up to 300 mm/sec possible
- Stylish design
- Compact size with the lowest possible height

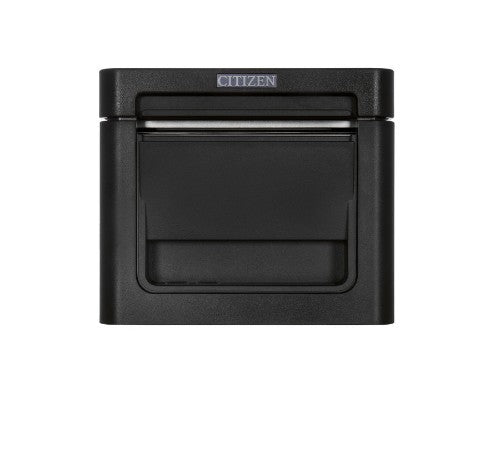

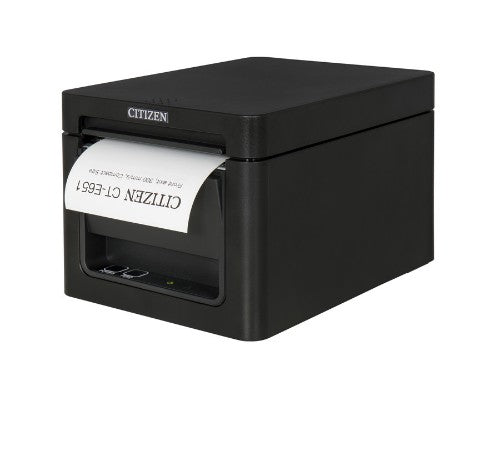

- The front paper eject structure enables use where the height is restricted
- Compliant with IPX1 for drip-proof capabilities

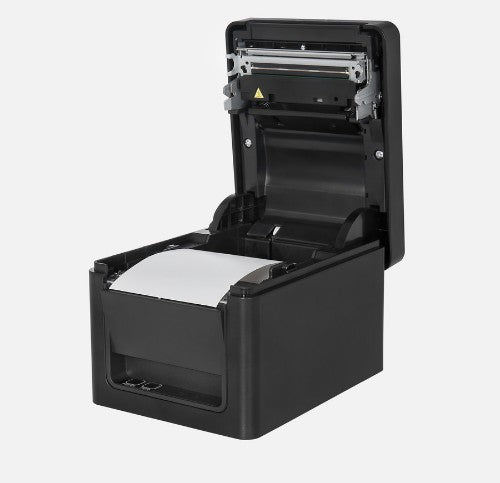

- Support for paper widths of 80 mm and 58 mm
- High-speed cutter employed
- Long Life Printing (LLP) function to increase the head life available

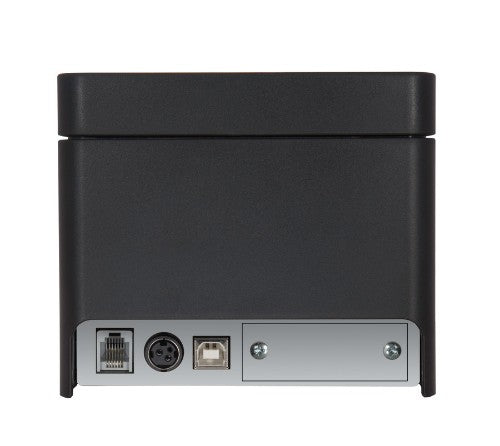

- USB interface included as standard
- Interchangeable interface board
- Printer status and errors indicated by five LEDs
- Built-in drawer kick interface
- USB-linked power OFF function available
- 16 level greyscale and clear printing
- Paper saving function available
- Support for the JIS X0213 third and fourth level Kanji character sets
- Support for the simplified and traditional Chinese character sets and Hangul character set
- Support for UTF-8 using commands
- Various customizations using the memory switches possible
- User created characters and logos can be saved in the user memory
- Support for barcodes including 2D barcodes

Specifications

Printing
Character sets	Katakana, PC437, PC850, PC858, PC860, PC863, Thai code 18, WPC1252
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Character size	1.5 x 3 mm
Performance
Character sets	Katakana, PC437, PC850, PC858, PC860, PC863, Thai code 18, WPC1252
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Maximum resolution	203 x 203 DPI
Character size	1.5 x 3 mm
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, ITF, PDF417, QR Code, UPC-A, UPC-E
Paper handling
Printing media thickness	53 - 85 µm
Maximum roll diameter	8.3 cm
Maximum printing width	7.2 cm
Ports & interfaces
Connectivity technology	Wired
USB 2.0 ports quantity	1
USB port	Yes
Network
Ethernet LAN	No
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Direct thermal
Print speed	300 mm/sec
Character size	1.5 x 3 mm
Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	7.2 cm
Technical details
Character sets	Katakana, PC437, PC850, PC858, PC860, PC863, Thai code 18, WPC1252
Maximum printing width	7.2 cm
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, ITF, PDF417, QR Code, UPC-A, UPC-E
Buffer size	4 KB
Voltage	24 V
Harmonized System (HS) code	84433210
Features
Character sets	Katakana, PC437, PC850, PC858, PC860, PC863, Thai code 18, WPC1252
LED indicators	Power
Internal memory	0.375 MB
Product colour	Black
Certification	UL, C-UL, FCC Cl. A, CE
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, ITF, PDF417, QR Code, UPC-A, UPC-E
Design
Product colour	Black
Memory
Internal memory	0.375 MB
Buffer size	4 KB
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source type	DC
Input current	2.1 A
Power consumption (printing)	50 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	UL, C-UL, FCC Cl. A, CE
Weight & dimensions
Width	125 mm
Depth	165 mm
Height	108 mm
Weight	1.3 kg
Packaging data
Cables included	AC
Packaging content
Cables included	AC
Quick start guide	Yes
AC adapter included	Yes
Indication
LED indicators	Power
Logistics data
Harmonized System (HS) code	84433210
Other features
LED indicators	Power
Buffer size	4 KB
