203dpi, 500mm/sec, 80mm, USB, 4.23mm
Key Features
- Customisable LCD operating panel
- Backwards compatibility with previous CT-S models

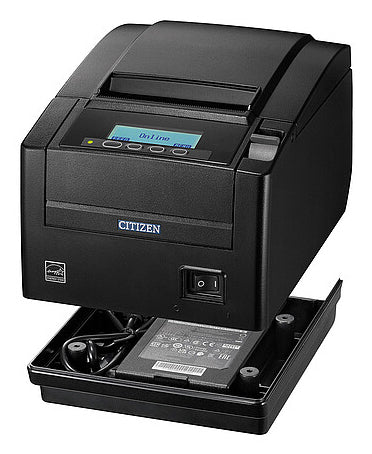

- Internal detachable power suply
- Print speeds of up to 500mm/sec
- Standard USB interface with optional WiFi, Serial, Bluetooth, Ethernet and Parallel interfaces
Description
With a print speed of 500mm/sec, the CT-S801III has set the standard for high speed POS printing and is the fastest machine in its class. Offering a top paper exit for retail applications, the CT-S801III has an advanced, customisable LCD screen, ensuring quick setup and total control of all print functions. Full error checking, with personalised messages and on-screen help make operation fast and efficient - a benefit that is extended still further through features such as a soft-close cover and the self-retracting snap-in cutter.
Specifications
| Printing |
|---|
| Character sets |
852, 857, 863, 864, 866, Katakana, PC850, PC858, PC860, PC865 |
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print speed |
500 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Line spacing |
4.23 mm |
| Performance |
|---|
| Character sets |
852, 857, 863, 864, 866, Katakana, PC850, PC858, PC860, PC865 |
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print speed |
500 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Line spacing |
4.23 mm |
| Paper handling |
|---|
| Supported paper width |
58 / 60 / 80 / 83 mm (+/- 1 mm) |
| Printing media thickness |
65 to 75 μm or 75 to 85 μm |
| Maximum roll diameter |
8.3 cm |
| Maximum printing width |
8 cm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Print technology |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print speed |
500 mm/sec |
| Print quality |
|---|
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
8 cm |
| Technical details |
|---|
| Character sets |
852, 857, 863, 864, 866, Katakana, PC850, PC858, PC860, PC865 |
| Maximum printing width |
8 cm |
| Product colour |
Black |
| Autocutter durability |
2 million cuts |
| Cutter |
Yes |
| Compliance certificates |
CE, RoHS, UL |
| Features |
|---|
| Character sets |
852, 857, 863, 864, 866, Katakana, PC850, PC858, PC860, PC865 |
| Product colour |
Black |
| Autocutter durability |
2 million cuts |
| Cutter |
Yes |
| Line spacing |
4.23 mm |
| Print head life |
150 km |
| Half-cutter |
Yes |
| Receive buffer |
4 KB |
| Design |
|---|
| Product colour |
Black |
| Built-in display |
Yes |
| Display |
LCD |
| Display |
|---|
| Built-in display |
Yes |
| Display |
LCD |
| Power |
|---|
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Power source type |
AC |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
5 - 45 °C |
| Weight & dimensions |
|---|
| Width |
145 mm |
| Depth |
192 mm |
| Height |
148 mm |
| Weight |
2 kg |
| Packaging content |
|---|
| Cash drawer included |
Yes |
| Other features |
|---|
| Print head life |
150 km |
