Description

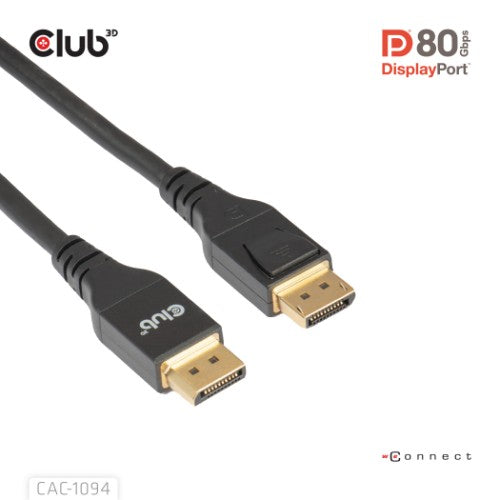

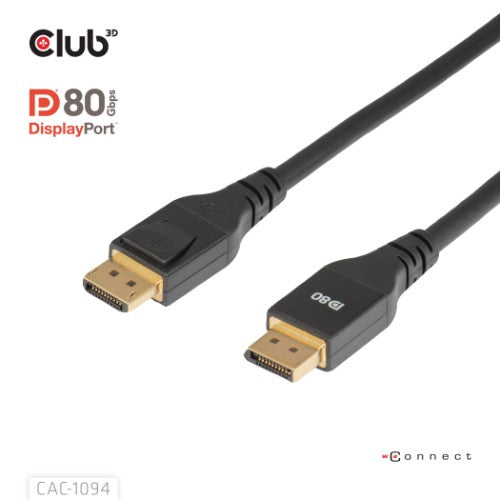

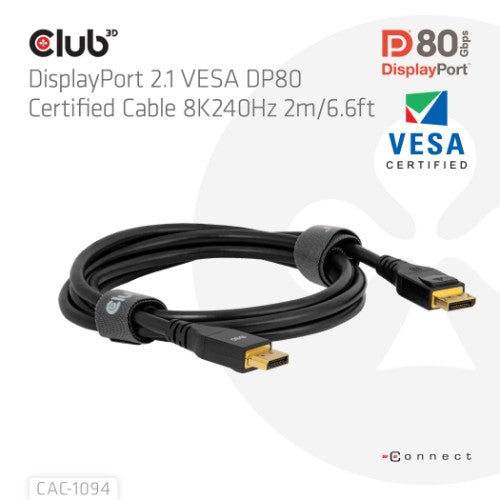

DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft
• EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.

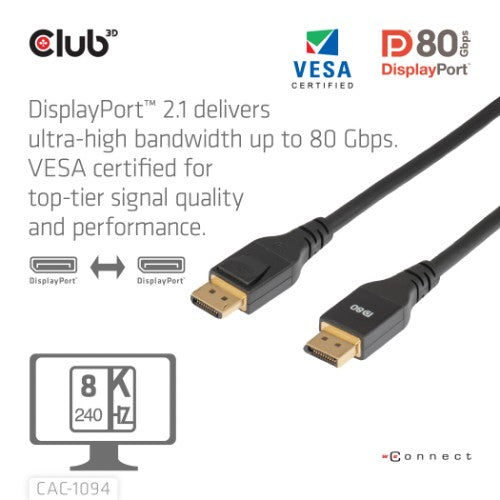

• HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
• VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality in a 26 AWG cable.
• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.
Key Features
- • EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.
- • HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
- • VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality in a 26 AWG cable.
- • QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.
Description
The Club 3D CAC-1094 DisplayPort™ 2.1 Cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 2.1 UHBR10/13.5/20 up till 80 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.Thanks to improvements in both the DisplayPort™ connector and cable design, the new VESA certified DP80 UHBR cables enable consumers to get the highest performance possible from their VESA certified devices. These new cables are backed by VESA’s UHBR Certification Program, which provides added assurance that if your cable has the DP40 or DP80 logo from VESA, it will meet the specs for the highest data rates supported by current and future products certified by VESA.• EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.
• HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
• VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality in a 26 AWG cable.
• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.
Specifications
| Features | |
|---|---|
| Product colour | Black |

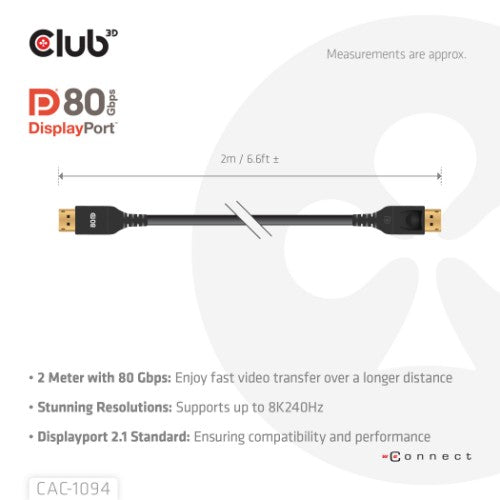

| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Magnetically shielded | Yes |
| AWG wire size | 26 |
| DisplayPort version | 2.1 |
| Data transfer rate | 80 Gbit/s |
| Maximum resolution | 10240 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320, 10328 x 7760 |
| Supported video modes | 4320p |
| Plug and Play | Yes |
| Maximum refresh rate | 240 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Display Stream Compression (DSC) | Yes |
| Connector material | Gold |
| Cable type | Round cable |
| Weight & dimensions | |
| Weight | 150 g |
| Package weight | 216 g |
| Package width | 175 mm |
| Package depth | 175 mm |
| Package height | 45 mm |
| Packaging data | |
| Package weight | 216 g |
| Weight | 150 g |
| Package width | 175 mm |
| Package depth | 175 mm |
| Package height | 45 mm |
| Plastic packaging weight | 3 g |
| Paper/cardboard packaging weight | 63 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
