Description

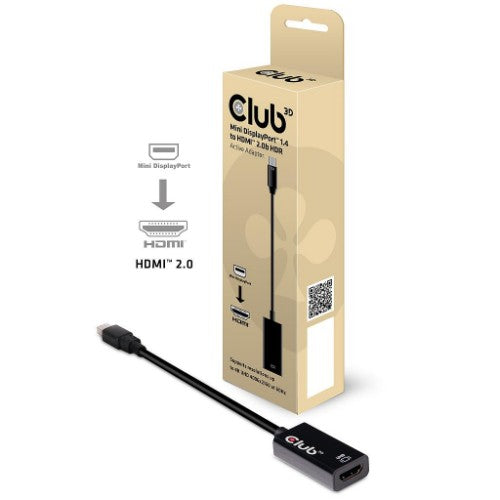

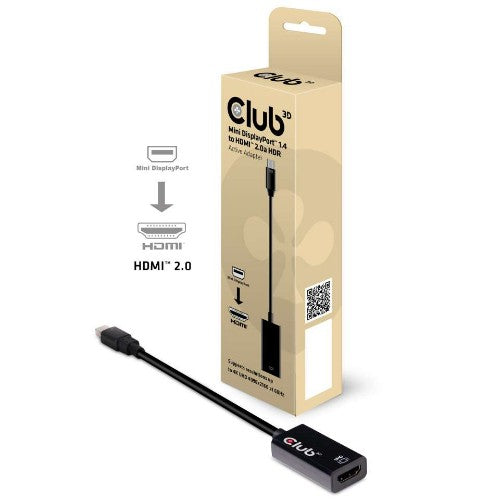

Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter
Resolution Support
The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b
Key Features
- Converts your Mini DisplayPort 1.4 output to HDMI 2.0b
- Supports resolutions up to 4096 x 2160p @ 60Hz
- Supports HDR
Description
CAC-1180 - The Club3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.Resolution Support
The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Country of origin | China |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Copper |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI, WEEE |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Colour sampling | 4:2:2, 4:4:4, 4:2:0 |
| Cable colour | Black |
| Certificates | |
| Certification | ROHS, FCC, CE EMI, WEEE |
| Compliance certificates | RoHS |
| Technical details | |
| Country of origin | China |
| Cable colour | Black |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 2 g |
| Compliance certificates | RoHS |
| Other features | |

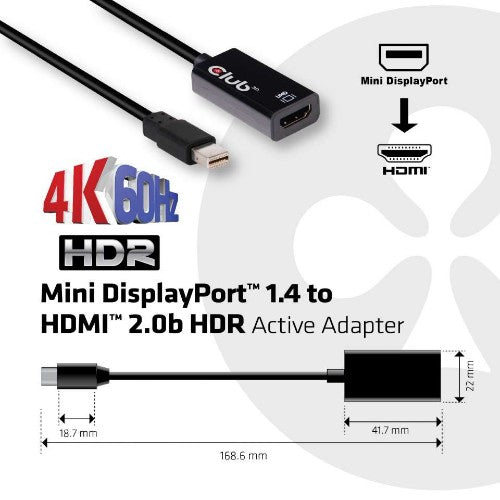

| Width | 20 mm |
| Height | 168.6 mm |
| Depth | 11 mm |
| Cable colour | Black |
| Packaging composition | |
| Plastic packaging weight | 2 g |
| Paper/cardboard packaging weight | 20 g |
| Total plastic packaging weight | 30 g |
| Total paper/cardboard packaging weight | 300 g |
| Weight & dimensions | |
| Width | 20 mm |
| Height | 168.6 mm |
| Depth | 11 mm |
| Weight | 30 g |
| Package width | 60 mm |
| Package depth | 35 mm |
| Package height | 182 mm |
| Package weight | 10 g |
| Packaging data | |
| Package width | 60 mm |
| Package depth | 35 mm |
| Package height | 182 mm |
| Package weight | 10 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8544 4290 |
