Description

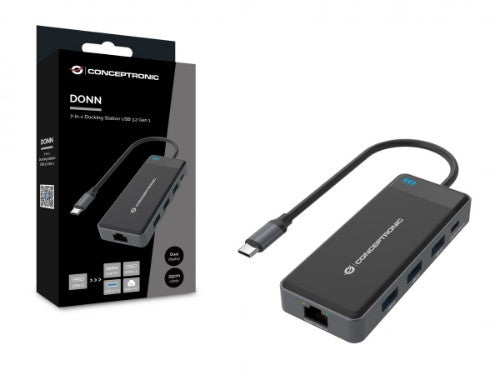

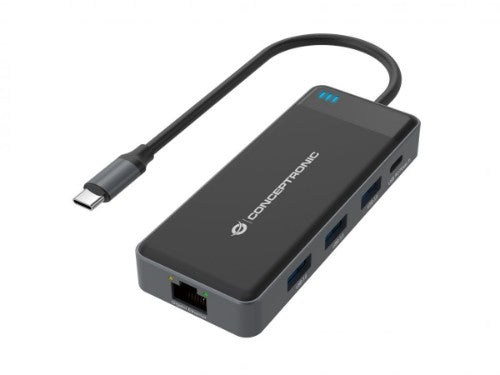

7-in-1 USB 3.2 Gen 1 Docking Station, HDMI x 2, USB-A x 3, GbE LAN, 100W USB PD

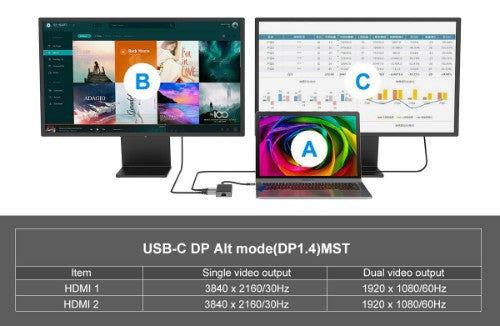

Multi Stream Transport, or MST, is a means of connecting one or more monitors together via a single display port. This technology makes it possible to connect say, two monitors to a laptop, using a docking station. This works by combining multiple video signals into one single stream and then ‘unpacking;’ them again on the display side. MST works on any Windows® device that supports DP Alt Mode (DisplayPort Alternate Mode), using USB-C.
Perfect for home entertainment, office presentations and classroom teaching.
Key Features
- 7-in-1 USB-C to HDMI/USB-C PD/USB 3.0/GbE multiport adapter
- Dual display
- Supports HDMI resolution up to 4K 30Hz
- Supports USB Power Delivery (PD) up to 100W
- Provides a Gigabit Ethernet port with speeds up to 1000Mbps
- Built-in Wake-on-LAN feature to startup computers remotely

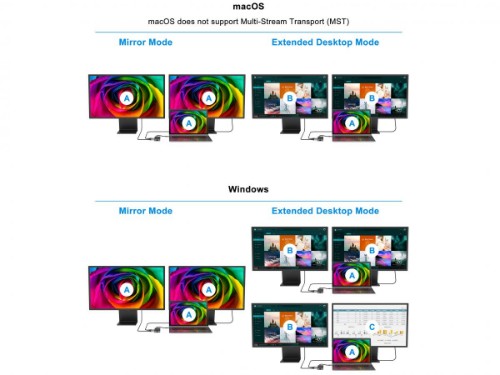

- Display modes : extended, mirror
- Supports MST mode (for Windows only)
- USB 3.2 Gen 1 SuperSpeed (5Gb/s)
- Multi-platform support: Windows, Mac OS, Chrome OS
- Simple Plug and Play installation
- Cable length: 25cm
Description

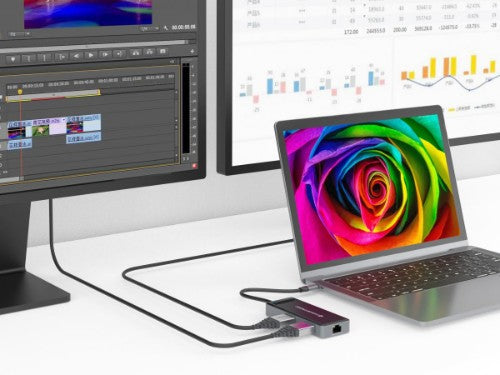

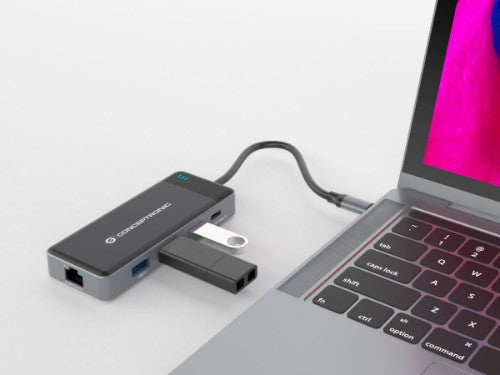

This 7-in-1 docking station makes it possible to expand your device’s USB Type-C capacity with HDMI/USB-C PD/USB 3.0/Gigabit Ethernet ports. The adapter provides an easy way to add HDTV, or equipment such as a monitor or projector to any USB-C device such as a smartphone, portable gaming console, MacBook, Chromebook Pixel or any similar late-model laptop with USB-C ports. The multiport video adapter lets you mirror or extend content on two additional monitors simultaneously (2 x HDMI), creating a dual-screen workstation.Multi Stream Transport, or MST, is a means of connecting one or more monitors together via a single display port. This technology makes it possible to connect say, two monitors to a laptop, using a docking station. This works by combining multiple video signals into one single stream and then ‘unpacking;’ them again on the display side. MST works on any Windows® device that supports DP Alt Mode (DisplayPort Alternate Mode), using USB-C.
Perfect for home entertainment, office presentations and classroom teaching.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Country of origin | China |
| Product colour | Grey |
| Card reader integrated | No |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Grey |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Wireless charging | No |
| USB cable length | 0.25 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android |
| Weight & dimensions | |
| Weight | 65 g |
| Width | 43.5 mm |
| Depth | 106.5 mm |
| Height | 16 mm |
| Package weight | 100 g |
| Package width | 90 mm |
| Package depth | 160 mm |
| Package height | 25 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Grey |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 100 g |
| Package width | 90 mm |
| Package depth | 160 mm |
| Package height | 25 mm |
| Packaging content | |
| Quick start guide | Yes |
| Quantity per pack | 1 pc(s) |
