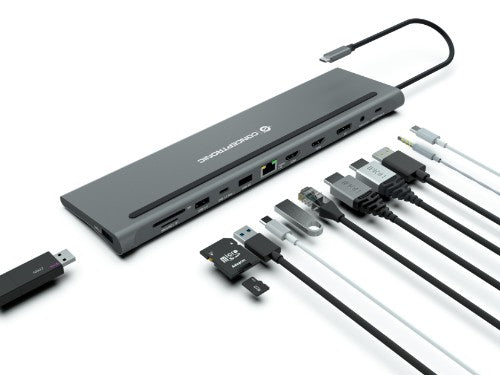

12-in-1 USB 3.2 Gen 1 Docking Station, Triple 4K Display, 100W USB PD, HDMI x 2, DisplayPort, Gigabit LAN, USB-A 3.0 x 2, USB-A 2.0, USB-C Data, SD, TF/MicroSD, Audio
Key Features

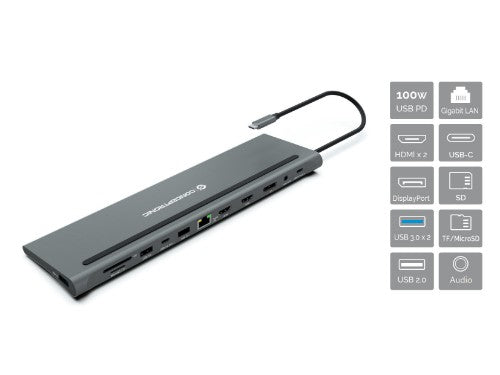

- 12-in-1 USB-C to HDMI/DisplayPort/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX multiport adapter
- Supports HDMI resolution up to 4K 60Hz
- Supports DisplayPort resolution up to 4K 60Hz
- Supports DisplayPort & HDMI simultaneously
- Supports USB Power Delivery (PD) up to 100W
- Provides a Gigabit Ethernet port with speeds up to 1000Mbps
- Built-in Wake-on-LAN feature to startup computers remotely

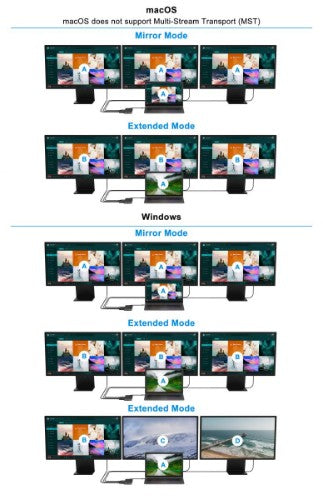

- Display modes : extended, mirror
- Supports MST mode (for Windows only)
- USB 3.2 Gen 1 SuperSpeed (5Gb/s)
- Multi-platform support: Windows, Mac OS, Chrome OS
- Simple Plug and Play installation
- Cable length: 18cm
Description

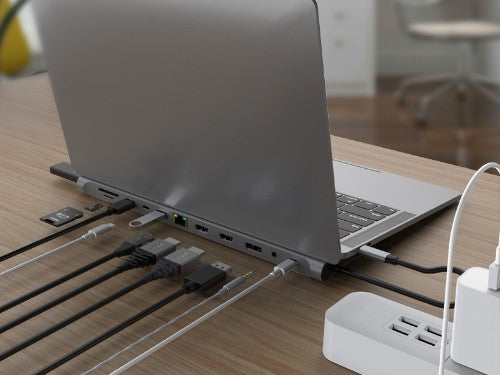

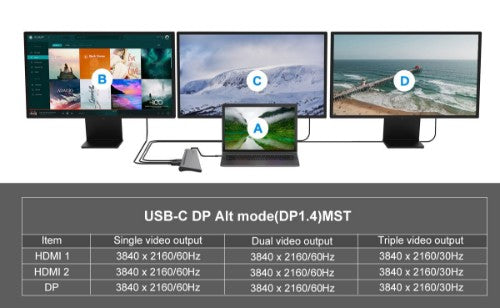

This 12-in-1 docking station makes it possible to expand your device’s USB Type-C capacity with HDMI/DisplayPort/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX ports. The adapter provides an easy way to add HDTV, or equipment such as a monitor or projector to any USB-C device such as a smartphone, portable gaming console, MacBook, Chromebook Pixel or any similar late-model laptop with USB-C ports. The multiport video adapter lets you mirror or extend content on three additional monitors simultaneously (2 x HDMI, 1 x DisplayPort), creating a triple-screen workstation. Perfect for home entertainment, office presentations and classroom teaching.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| Headphone outputs |
1 |
| Connectivity technology |
Wired |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Country of origin |
China |
| Product colour |
Grey |
| Card reader integrated |
Yes |
| Brand compatibility |
Universal |
| Plug and Play |
Yes |
| Data transfer rate |
5 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| HD type |
4K Ultra HD |
| Technical details |
|---|
| Product colour |
Grey |
| Brand compatibility |
Universal |
| Plug and Play |
Yes |
| Data transfer rate |
5 Gbit/s |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Power |
|---|
| Power source type |
USB |
| Power connector |
USB Type-C |
| USB cable length |
0.18 m |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mobile operating systems supported |
Android |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
232 g |
| Width |
80 mm |
| Depth |
280 mm |
| Height |
17 mm |
| Package weight |
315 g |
| Package width |
105 mm |
| Package depth |
305 mm |
| Package height |
25 mm |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Country of origin |
China |
| Product colour |
Grey |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
315 g |
| Package width |
105 mm |
| Package depth |
305 mm |
| Package height |
25 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Quantity per pack |
1 pc(s) |
