Conceptronic DONN30B 13-in-1 Thunderbolt 4 Docking Station

DONN30B 13-in-1 Thunderbolt 4 Docking Station

Key Features

• Transform your Thunderbolt 4 port into a versatile hub with enhanced connectivity
• Supports HDMI resolutions up to 8K 30Hz

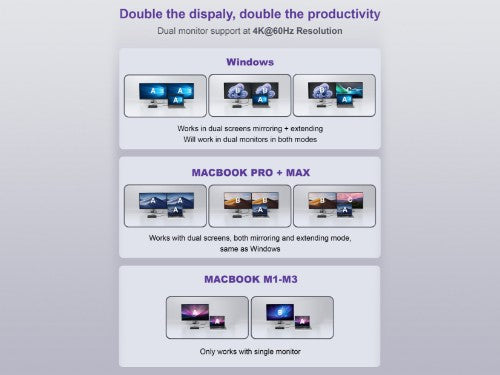

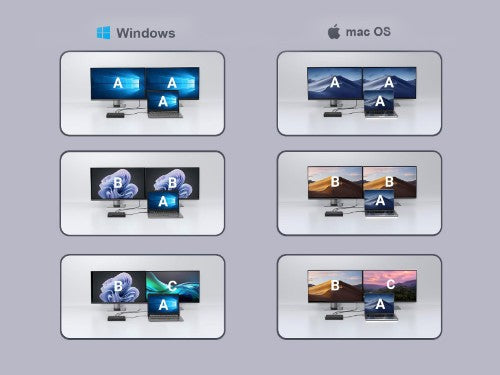

• Supports dual extended-mode displays (MST) on macOS and Windows
• Features four 10Gbps USB ports (2 USB-C, 2 USB-A) and two Thunderbolt 4 ports
• Supports SD 4.0 and UHS-II for high-speed data transfers up to 312MB/s
• Provides a 2.5GbE port with speeds up to 2500Mbps
• Supports MAC address passthrough
• Supports USB PD 3.0 for host charging of up to 96W
• Power button for convenient on/off functionality
• Supports a 3.5mm audio jack for headsets
• Offers both standard and nano security slots for flexible security options
• Includes a 135W power adapter with both EU and UK power cords for flexible regional compatibility

Description

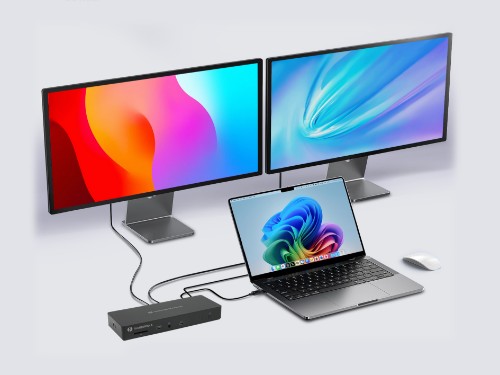

Transform your digital experience with the premium 13-in-1 Thunderbolt 4 Docking Station—the ultimate connectivity solution engineered for professionals who demand excellence. One port becomes your gateway to endless possibilities: enjoy visual brilliance with dual extended displays across macOS and Windows, and stunning clarity with HDMI output up to 8K at 30Hz, enabling advanced multi-monitor setups for maximum productivity.

Experience unmatched connectivity with dual Thunderbolt 4 ports for ultra-fast device integration, four high-performance USB ports (2× USB-C, 2× USB-A) supporting 10Gbps transfer speeds, a professional-grade SD 4.0 card reader with UHS-II support (up to 312MB/s), and advanced 2.5GbE Ethernet with MAC address passthrough for enterprise-level network security.

Power through your workflow with up to 96W USB PD 3.0 host charging, enjoy crystal-clear audio through the integrated 3.5mm jack, and take advantage of intuitive power management via the built-in power button. Enhanced physical security is also ensured with both standard and nano security slots.

Whether you're crafting creative content, managing remote workflows, or optimizing a high-performance workstation, this Thunderbolt 4 Docking Station delivers exceptional capability with refined simplicity. One device. Total connectivity. Limitless potential.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 4
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	96 W
Thunderbolt 4 ports quantity	2
Network
Networking standards	IEEE 802.3bz
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2000,2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	7680 x 4320 pixels
On/off switch	Yes
Country of origin	China
Product colour	Black
Card reader integrated	Yes
Cable lock slot	Yes
Data transfer rate	40 Gbit/s
Compatible memory cards	SD, SDHC, SDXC
HD type	8K Ultra HD
Technical details
Product colour	Black
Cable lock slot	Yes
Data transfer rate	40 Gbit/s
Master (outer) cases per pallet	20 pc(s)
Harmonized System (HS) code	8471800000
Compliance certificates	CE, RoHS
Products per master (outer) case	6 pc(s)
Master (outer) case width	480 mm
Master (outer) case gross weight	11.3 kg
Master (outer) case length	310 mm
Master (outer) case height	314 mm
Storage
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 70 °C
Weight & dimensions
Weight	260 g
Width	199 mm
Depth	74.8 mm
Height	31 mm
Package weight	1.08 kg
Package width	295 mm
Package depth	145 mm
Package height	90 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Country of origin	China
Product colour	Black
Cable lock slot	Yes
Packaging data
Package weight	1.08 kg
Package width	295 mm
Package depth	145 mm
Package height	90 mm
Packaging content
Quick start guide	Yes
Cables included	AC, Thunderbolt
AC adapter included	Yes
Logistics data
Pallet gross width	120 cm
Pallet gross length	80 cm
Pallet gross height	172.2 cm
Products per master (outer) case	6 pc(s)
Master (outer) case width	480 mm
Master (outer) case gross weight	11.3 kg
Master (outer) case length	310 mm
Master (outer) case height	314 mm
Harmonized System (HS) code	8471800000
Other features
Master (outer) cases per pallet	20 pc(s)
