Description

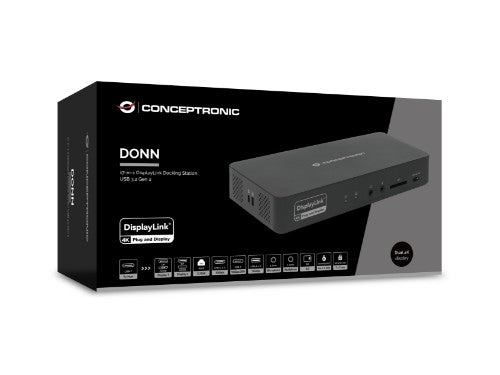

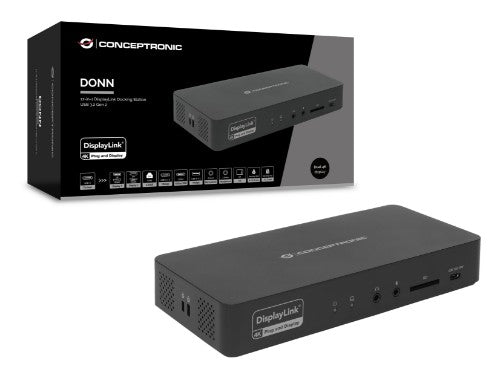

DONN31B 17-in-1 DisplayLink Docking Station USB 3.2 Gen 2
With support for HDMI and DisplayPort resolutions up to 4K at 60Hz, you can enjoy stunning visuals and immersive multimedia experiences. Leveraging DisplayLink technology, the docking station supports multiple extended displays, allowing your MacBook to use up to two monitors with different content. Please note that DisplayLink driver installation is required.
Offering a diverse selection of ports, including 4 x USB-C 10Gbps, 2 x USB-A 10Gbps, with one USB-C supporting 30W charging to effortlessly connect all your peripherals. The SD 4.0 slot ensures convenient and high-speed data transfers.
For added security, the docking station includes both standard and nano security slots, providing flexible security options and peace of mind for your devices.
The docking station seamlessly integrates into your workflow, whether at home, in the office, or on the go.
Key Features
- Supports dual extended-mode displays (MST) on macOS and Windows
- Supports HDMI/DisplayPort resolutions up to 4K 60Hz
- Features six 10Gbps USB ports (4 USB-C, 2 USB-A), with one USB-C supporting 30W charging
- Supports MAC address passthrough
- Supports SD 4.0 and UHS-II for high-speed data transfers up to 312MB/s
- Provides a 2.5GbE port with speeds up to 2500Mbps
- Supports USB PD 3.0 for host charging of up to 96W
- Power button for convenient on/off functionality
- Supports 3.5mm headphone and microphone jacks
- Offers both standard and nano security slots for flexible security options
Description
Introducing the 17-in-1 DisplayLink Docking Station – a versatile and powerful hub designed to enhance your productivity and streamline your workflow.With support for HDMI and DisplayPort resolutions up to 4K at 60Hz, you can enjoy stunning visuals and immersive multimedia experiences. Leveraging DisplayLink technology, the docking station supports multiple extended displays, allowing your MacBook to use up to two monitors with different content. Please note that DisplayLink driver installation is required.
Offering a diverse selection of ports, including 4 x USB-C 10Gbps, 2 x USB-A 10Gbps, with one USB-C supporting 30W charging to effortlessly connect all your peripherals. The SD 4.0 slot ensures convenient and high-speed data transfers.
For added security, the docking station includes both standard and nano security slots, providing flexible security options and peace of mind for your devices.
The docking station seamlessly integrates into your workflow, whether at home, in the office, or on the go.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.2 |
| Network | |
| Networking standards | IEEE 802.3bz |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| On/off switch | Yes |
| Country of origin | China |
| Product colour | Black |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | SD, SDHC, SDXC |
| Cable lock slot type | Nano |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Data transfer rate | 10 Gbit/s |
| Master (outer) cases per pallet | 40 pc(s) |
| Harmonized System (HS) code | 8471800000 |
| Compliance certificates | CE, RoHS |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 278 mm |
| Master (outer) case gross weight | 11.7 kg |
| Master (outer) case length | 376 mm |
| Master (outer) case height | 310 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Power | |
| Power source type | DC |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Mobile operating systems supported | Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 8.1, Android 9.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Weight | 370 g |
| Width | 202.8 mm |
| Depth | 95 mm |
| Height | 32.6 mm |
| Package weight | 1.12 kg |
| Package width | 257 mm |
| Package depth | 135.5 mm |
| Package height | 117.5 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Country of origin | China |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Nano |
| Packaging data | |
| Package weight | 1.12 kg |
| Package width | 257 mm |
| Package depth | 135.5 mm |
| Package height | 117.5 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Logistics data | |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 170.2 cm |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 278 mm |
| Master (outer) case gross weight | 11.7 kg |
| Master (outer) case length | 376 mm |
| Master (outer) case height | 310 mm |
| Customs product code (TARIC) | 8471800000 |
| Harmonized System (HS) code | 8471800000 |
| Other features | |
| Master (outer) cases per pallet | 40 pc(s) |
