Description

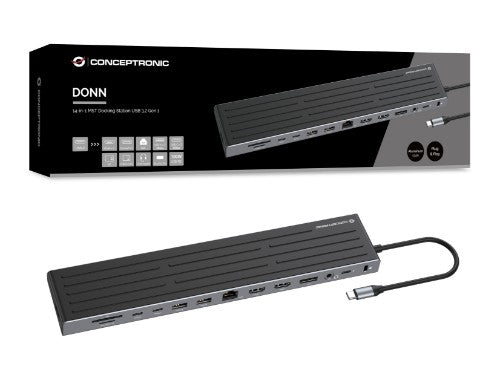

DONN32B 14-in-1 MST Docking Station USB 3.2 Gen 1, HDMI x 2, DP, GbE LAN, USB-A 5Gbps x 3, USB-C 5Gbps x 2, SD, TF/MicroSD, 3.5mm headset, Security Slot, 100W USB PD
Stay connected and efficient with five high-speed USB ports (2 × USB-C, 3 × USB-A) delivering 5Gbps data transfer, plus SD and TF 3.0 card readers supporting UHS-I speeds up to 104MB/s. A Gigabit Ethernet port ensures reliable 1000Mbps wired connectivity, while a 3.5mm combo audio jack keeps communications clear.
Power your laptop with up to 100W via USB Power Delivery. The robust aluminum design offers excellent heat dissipation and includes a built-in security slot for added protection.
With Plug and Play setup, it’s ready to streamline your workspace right out of the box. Whether you're creating, collaborating, or relaxing, this docking station is your all-in-one connectivity solution.
Key Features
- Supports HDMI resolutions up to 4K 60Hz
- Supports DisplayPort resolutions up to 4K 60Hz
- Supports triple extended-mode displays (MST) on Windows
- Provides Gigabit Ethernet port with speeds up to 1000Mbps
- Features five 5Gbps USB ports (2× USB-C, 3× USB-A)
- Supports SD/TF 3.0 with UHS-I for high-speed data transfers up to 104MB/s
- Supports USB Power Delivery (PD) up to 100W
- Includes a security slot for enhanced protection
- 3.5mm combo jack for headphones and microphone
- Multi-platform support: Windows, macOS, ChromeOS, Linux, Android, iOS
- Simple Plug and Play installation
- Aluminum casing for heat dissipation
Description
Unlock full workstation potential with this high-performance 14-in-1 docking station. Designed for professionals who demand more, it supports triple extended displays on Windows via HDMI and DisplayPort with crisp 4K@60Hz resolution.Stay connected and efficient with five high-speed USB ports (2 × USB-C, 3 × USB-A) delivering 5Gbps data transfer, plus SD and TF 3.0 card readers supporting UHS-I speeds up to 104MB/s. A Gigabit Ethernet port ensures reliable 1000Mbps wired connectivity, while a 3.5mm combo audio jack keeps communications clear.
Power your laptop with up to 100W via USB Power Delivery. The robust aluminum design offers excellent heat dissipation and includes a built-in security slot for added protection.
With Plug and Play setup, it’s ready to streamline your workspace right out of the box. Whether you're creating, collaborating, or relaxing, this docking station is your all-in-one connectivity solution.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.2 |
| Network | |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Country of origin | China |
| Product colour | Grey, Silver |
| Card reader integrated | Yes |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Technical details | |
| Product colour | Grey, Silver |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Master (outer) cases per pallet | 40 pc(s) |
| Harmonized System (HS) code | 8471800000 |
| Compliance certificates | CE, RoHS |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 365 mm |
| Master (outer) case gross weight | 15.8 kg |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 345 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Power | |
| Power source type | USB |
| USB cable length | 0.18 m |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mobile operating systems supported | Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 8.1, Android 9.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Weight | 220 g |
| Width | 280 mm |
| Depth | 55 mm |
| Height | 19 mm |
| Package weight | 370 g |
| Package width | 325 mm |
| Package depth | 85 mm |
| Package height | 25 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Country of origin | China |
| Product colour | Grey, Silver |
| Cable lock slot | Yes |
| Packaging data | |
| Package weight | 370 g |
| Package width | 325 mm |
| Package depth | 85 mm |
| Package height | 25 mm |
| Packaging content | |
| Quick start guide | Yes |
| Logistics data | |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 187.7 cm |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 365 mm |
| Master (outer) case gross weight | 15.8 kg |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 345 mm |
| Customs product code (TARIC) | 8471800000 |
| Harmonized System (HS) code | 8471800000 |
| Other features | |
| Master (outer) cases per pallet | 40 pc(s) |
