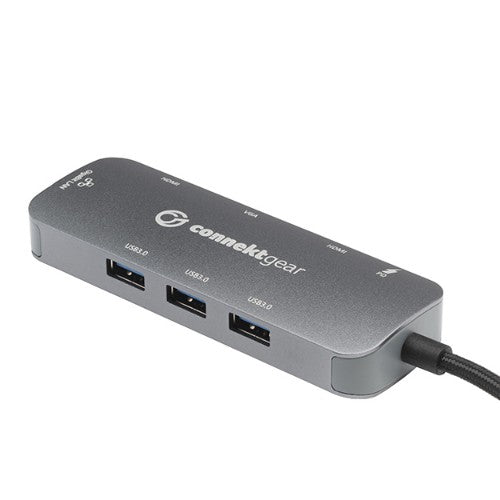

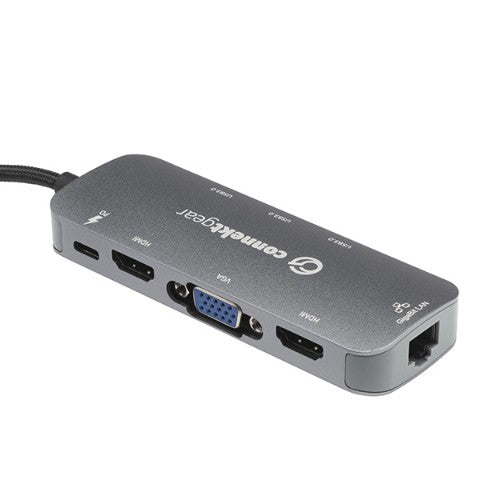

USB 3.1 Type C Dual Screen Docking Station with 100W PD
Key Features
- Interface: USB 3.1 Type C
- Connector 1: USB 3.1 Type C Male
- Connector 2: USB 3.1 Type C Female PD 3 up to 100W
- Connector 3: 3 x USB 3.1 Type A with 5Gbps data transfer
- Connector 4: RJ45 Female 1 Gbps ethernet
- Connector 5: 2 x HDMI Type A Female 4K HDMI port @30Hz display
- Connector 6: VGA Female port 1080p @60Hz
- Dimensions: 109 x 15 x 39mm
- Cable length: 135mm
- System compatibility: Windows (windows 10 and above), Mac (v10.8 and above) & newer android
- DeX compatibility: Galaxy S10
Description
Our compact USB Type C mobile docking station is the perfect solution for connecting your PC accessories to any Type C device, ideal for use at home, in the office or on the go. It features dual HDMI ports for crystal clear, high quality video output, three USB 3 ports for fast data transfer, and a USB Type C port with power delivery for seamless charging._x000D__x000D_For compatibility with older displays, the dock also includes a VGA port. Devices without Wi-Fi are supported as well, thanks to the integrated ethernet port for stable wired network connections. Additionally, the dock is DeX compatible, allowing you to transform your phone into a desktop like experience with ease.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Line-in |
No |
| Line-out |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
No |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3 |
| USB Power Delivery up to |
100 W |
| HDCP version |
1.4/2.2 |
| HDCP |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Full duplex |
No |
| Auto MDI/MDI-X |
No |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Full duplex |
No |
| Auto MDI/MDI-X |
No |
| Number of displays supported |
3 |
| Country of origin |
China |
| Product colour |
Grey |
| Card reader integrated |
No |
| Plug and Play |
Yes |
| Certification |
RoHS, REACH |
| Housing material |
Aluminium |
| Maximum refresh rate |
60 Hz |
| Hub interfaces |
HDMI, VGA, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Technical details |
|---|
| Product colour |
Grey |
| Plug and Play |
Yes |
| Warranty period |
2 year(s) |
| Storage |
|---|
| Card reader integrated |
No |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
300 g |
| Width |
109 mm |
| Depth |
15 mm |
| Height |
39 mm |
| Package weight |
32.5 g |
| Package width |
150 mm |
| Package depth |
40 mm |
| Package height |
97 mm |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Country of origin |
China |
| Product colour |
Grey |
| Certification |
RoHS, REACH |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
32.5 g |
| Package width |
150 mm |
| Package depth |
40 mm |
| Package height |
97 mm |
| Packaging content |
|---|
| Quick start guide |
No |
| AC adapter included |
No |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
RoHS, REACH |
