Description
Online Double Conversion, Active PFC, In 190 - 300 Vac / 9 A / IEC C14, Out 2000 VA / 1800 W / Pure Sein Wave / 8x IEC C13, Battery 3.8 min, LCD, Rack, Tower, 438 x 88 x 430 mm, 2U
The UPS features color LCD panel for users to monitor power system and configure settings easily. This model can be used with compatible Extended Battery Modules (EBM) to prolong system runtime during power interruption. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users. The product also supports power management software to perform real-time monitoring and remote management.
Key Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module Auto-detection
- Critical/Non-critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Variable Speed Fans
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- ECO Mode
Description

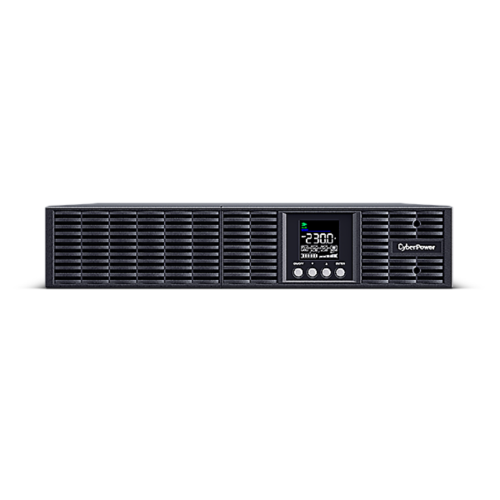

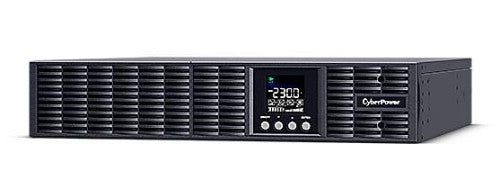

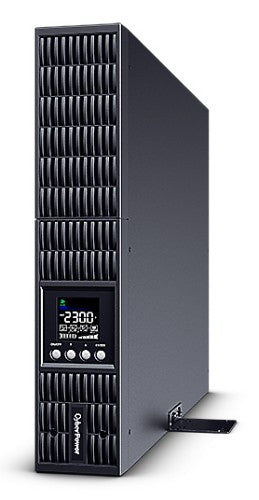

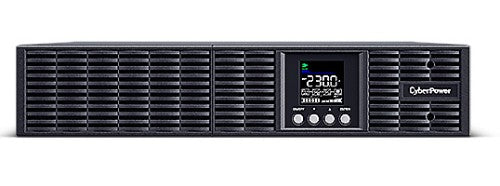

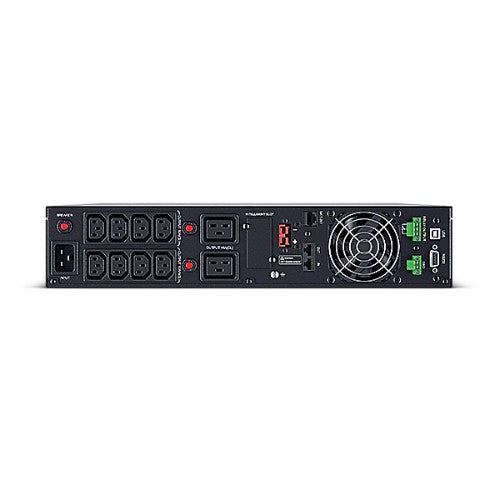

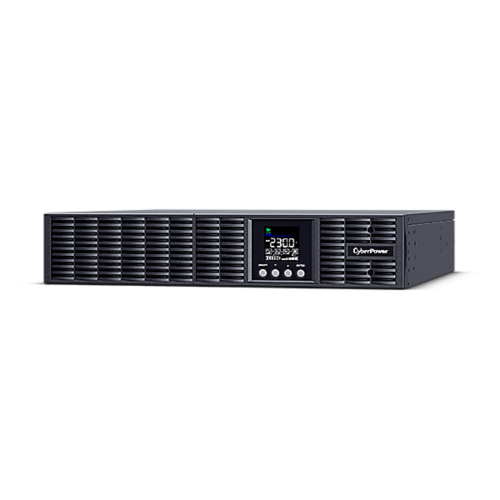

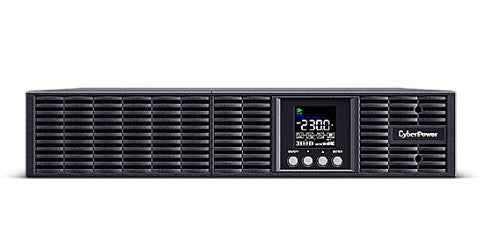

CyberPower OLS2000ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.The UPS features color LCD panel for users to monitor power system and configure settings easily. This model can be used with compatible Extended Battery Modules (EBM) to prolong system runtime during power interruption. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users. The product also supports power management software to perform real-time monitoring and remote management.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 1% |
| Output frequency regulation | 0.5 Hz |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 1800 W |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 363 J |
| Maximum current | 9 A |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Charging current | 1.5 A |
| Efficiency (ECO mode) | 95% |
| ECO mode | Yes |
| Ports & interfaces | |
| Cable length | 1.5 m |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | Type F |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port type | USB Type-B |
| Performance | |
| Audible alarm modes | Battery replacement, Low battery alarm, Overload alarm, Fault, Alarm when on battery |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Response time | 0 ms |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Country of origin | China |
| Audible alarm modes | Battery replacement, Low battery alarm, Overload alarm, Fault, Alarm when on battery |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Output voltage regulation | 1% |
| Output frequency regulation | 0.5 Hz |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Response time | 0 ms |
| Output power | 1800 W |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 363 J |
| Maximum current | 9 A |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overload |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 2 kVA |
| Efficiency (ECO mode) | 95% |
| ECO mode | Yes |
| Input frequency | 50/60 Hz |
| Heat dissipation | 682 BTU/h |
| Charging current | 1.5 A |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 3 |
| Battery voltage | 48 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Typical backup time at half load | 13.1 min |
| Typical backup time at full load | 3.8 min |
| Hot-swap battery | Yes |
| Charging current | 1.5 A |
| Replacement battery cartridge | RBP0157 |
| Number of batteries included | 2 pc(s) |
| Design | |
| Country of origin | China |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Certification | CE, EAC |
| Cable length | 1.5 m |
| Built-in fan | Yes |
| Housing material | Metal |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | -20 - 50% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 1500 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 8504408590 |
| Compliance certificates | CE, EAC, RoHS |
| Certificates | |
| Certification | CE, EAC |
| Compliance certificates | CE, EAC, RoHS |
| Packaging content | |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Batteries included | Yes |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Package width | 540 mm |
| Package depth | 550 mm |
| Package height | 230 mm |
| Weight | 19.2 kg |
| Width | 438 mm |
| Package weight | 23.4 kg |
| Height | 88 mm |
| Depth | 430 mm |
| Packaging data | |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Package width | 540 mm |
| Package depth | 550 mm |
| Package height | 230 mm |
| Package weight | 23.4 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
