Description

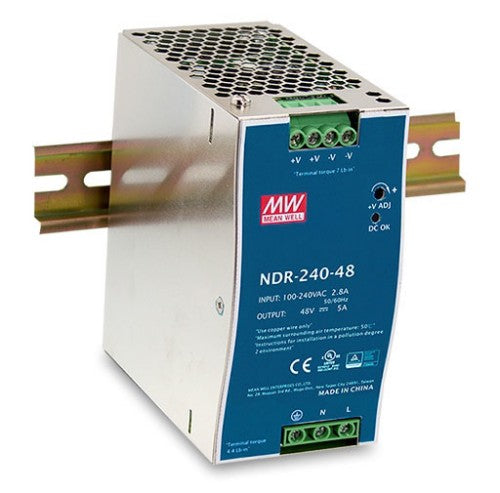

240W, 48VDC, DIN Rail PSU
Description
Specifications
| Power | |
|---|---|
| Total power | 240 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2.5/115VC, 1.3/230VC |
| Power factor | 0.98 |
| Power protection features | Over voltage, Overheating, Overload |
| Hold time | 28 ms |
| Efficiency | 88.5% |
| Performance | |
| Rise time | 100 ms |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Product colour | Stainless steel |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 113.5 mm |
| Height | 125.2 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Rise time | 100 ms |
| Harmonized System (HS) code | 84733020 |
