Description
850W, ATX12V V3.1, 120 mm, APFC, 20+4 Pin, CPU 4+4, 3x PCI-E 6+2 Pin, 12V-2x6(16Pin), 8x SATA, 150 × 140 × 86 mm, EU

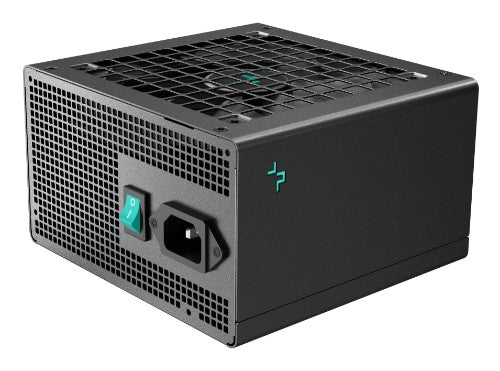

The DeepCool PN850D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN850D provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST

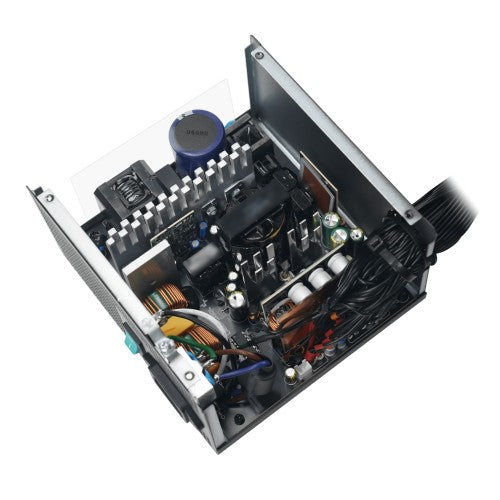

Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850D provides up to 600W for modern GPUs.
DYNAMIC HYDRO BEARING FAN

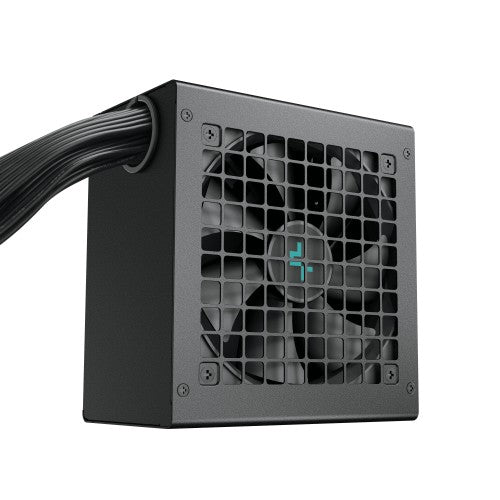

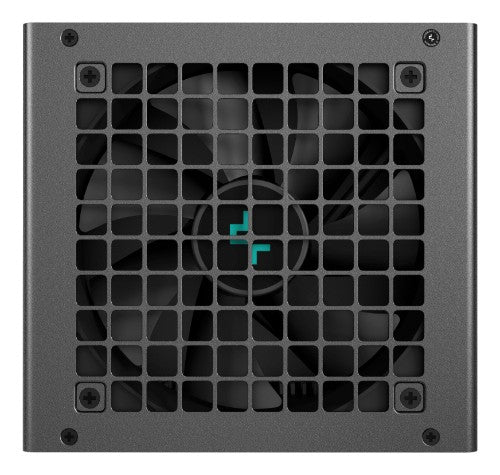

The PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Description
PN850DThe DeepCool PN850D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN850D provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850D provides up to 600W for modern GPUs.
DYNAMIC HYDRO BEARING FAN
The PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HYB |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Power | |

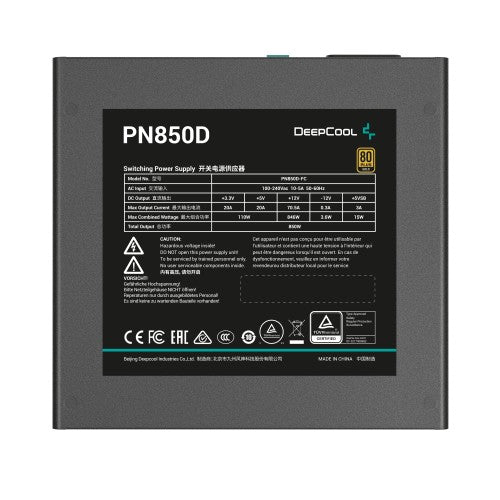

| Total power | 850 W |
| Power Good signal delay range | 100 - 150 ms |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 550,750,450,650 mm |
| Peripheral (Molex) power cable length | 850 mm |
| CPU power cable length | 70 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Number of EPS connectors | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Compliance certificates | CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE |
| 80 PLUS certification | 80 PLUS Gold |

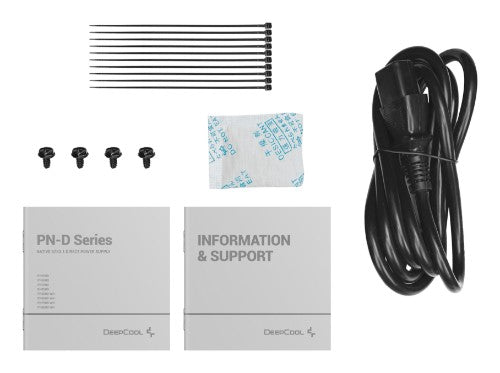

| Packaging content | |
| Cables included | AC |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging data | |
| Cables included | AC |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP, Triman |
| Compliance certificates | CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE |
