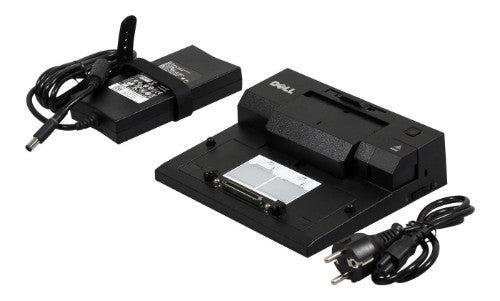

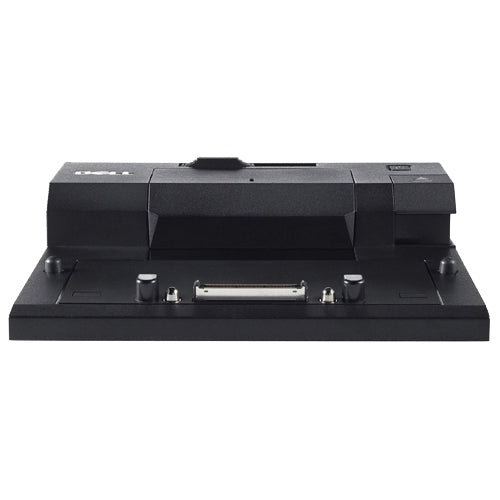

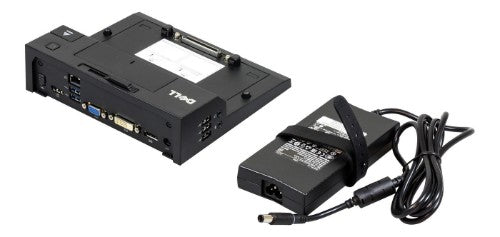

E-Port Replicator with USB 3.0
Description
The E-Port Replicator with USB 3.0 from Dell™ is a space-saving port replicator suitable for home and office environment which enables connection to your desk peripherals. This docking station includes a latest USB 3.0 technology enabled by Intel in Ivy Bridge. It has replaced the 2 USB 2.0 connectors with the USB 3.0. Plus, the Display Port 1.2 adds the ability to daisy chain displays (4 displays via 1 connector). Also it offers an adaptor complexity reduction. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Number of microphone inputs |
1 |
| Headphone connectivity |
3.5 mm |
| USB 2.0 ports quantity |
3 |
| USB connector type |
USB Type-A |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
0 |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Optical drive included |
No |
| Product colour |
Black |
| Card reader integrated |
No |
| Brand compatibility |
Dell |
| Compatibility |
Latitude E5440
Latitude E5540
Latitude E6440
Latitude E6540
Latitude E7240
Latitude E7440 |
| Technical details |
|---|
| Product colour |
Black |
| Brand compatibility |
Dell |
| Compatibility |
Latitude E5440
Latitude E5540
Latitude E6440
Latitude E6540
Latitude E7240
Latitude E7440 |
| Harmonized System (HS) code |
84733020 |
| Storage |
|---|
| Card reader integrated |
No |
| Optical drive |
|---|
| Optical drive included |
No |
| Multimedia |
|---|
| Optical drive included |
No |
| Power |
|---|
| Power consumption (typical) |
130 W |
| Weight & dimensions |
|---|
| Weight |
778 g |
| Width |
201 mm |
| Depth |
170 mm |
| Height |
53.3 mm |
| Design |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Number of microphone inputs |
1 |
