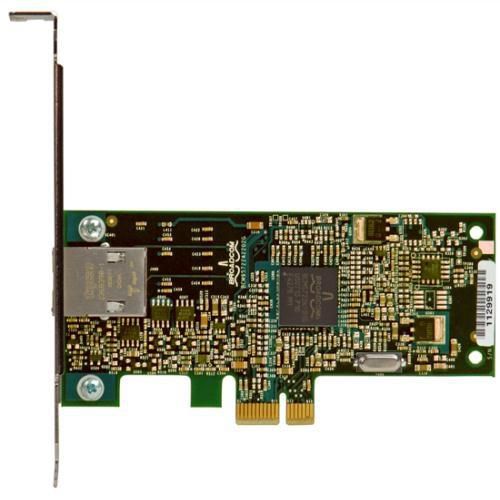

Broadcom 5722 10/100/1000 Mbits BASE-TX network interface card PCIe x1 (Full Height) (Kit)
Description
The BCM5722 is a tenth-generation 10/100/1000BASE-T Ethernet LAN controller solution for high-performance network applications. The device combines a triple-speed IEEE 802.3™ -compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, x1 PCIe™ bus interface, and on-chip buffer memory in a single device. The device is fabricated in a 1.2V CMOS process providing a low-power system solution.
The device performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet on standard Category 5 UTP cable. Based on proven DSP technology, the device is a highly integrated solution combining digital adaptive equalizers, ADCs, PLLs, line drivers, echo cancellers, crosstalk cancellers, and all other required support circuitry. A full-featured MAC provides full-/half-duplex capability at all speeds.
The device provides an x1 PCIe v1.1 bus interface. The on-chip high performance processor enables custom frame processing features.
This product is compatible with the following systems:
- Precision Workstation T1700.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Compatible products |
Dell Precision Workstation T1700 |
| Product colour |
Black |
| Harmonized System (HS) code |
85176990 |
| Network |
|---|
| Networking standards |
IEEE 802.3 |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
|---|
| Compatible products |
Dell Precision Workstation T1700 |
| Product colour |
Black |
| Internal |
Yes |
| Performance |
|---|
| Compatible products |
Dell Precision Workstation T1700 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Harmonized System (HS) code |
85176990 |
