Description
145x145x52mm, 0.72kg, 210W, Gigabit Ethernet, VGA, HDMI, DP, Mini DP, Thunderbolt

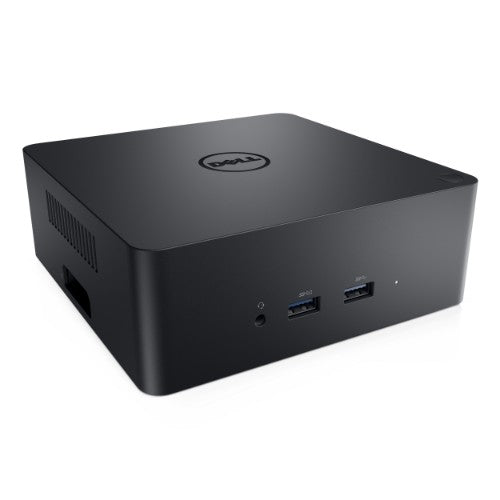

Introducing Dell’s most powerful dock to date, the Dell Precision Dual USB-C Thunderbolt Dock - TB18DC for Precision 7530 and 7730 workstations, offering incredibly high power delivery of up to 210W. Charge up to 80% of your Precision 7530 or 7730 within an hour, and be fully charged in under two hours with Dell ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of battery backing you up.
Lightning fast data transfer speeds
Transfer large files at lightning fast speeds of up to 40Gbps when you connect Thunderbolt storage devices
One cable for both docking and power
Leave your power brick at home and conveniently plug in one cable to dock and power your laptop. Boost productivity with the ability to connect up to three Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a single cable.
Flexible placement with 0.8m cable length
With the flexibility of a long, 0.8m cable length you can place your dock just about anywhere in your workspace.
Most manageable with Dell Business Class features
The dock supports Dell Business Class features which allows for easy manageability. ITDMs will be able to remotely troubleshoot, manage systems, and secure dock ports.
Description
Incredibly powerful Thunderbolt Dock delivers up to 210WIntroducing Dell’s most powerful dock to date, the Dell Precision Dual USB-C Thunderbolt Dock - TB18DC for Precision 7530 and 7730 workstations, offering incredibly high power delivery of up to 210W. Charge up to 80% of your Precision 7530 or 7730 within an hour, and be fully charged in under two hours with Dell ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of battery backing you up.
Lightning fast data transfer speeds
Transfer large files at lightning fast speeds of up to 40Gbps when you connect Thunderbolt storage devices
One cable for both docking and power
Leave your power brick at home and conveniently plug in one cable to dock and power your laptop. Boost productivity with the ability to connect up to three Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a single cable.
Flexible placement with 0.8m cable length
With the flexibility of a long, 0.8m cable length you can place your dock just about anywhere in your workspace.
Most manageable with Dell Business Class features
The dock supports Dell Business Class features which allows for easy manageability. ITDMs will be able to remotely troubleshoot, manage systems, and secure dock ports.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Thunderbolt 3 ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Line-in | Yes |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-TX |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Card reader integrated | No |
| Compatibility | Precision Mobile Workstation 7530, 7730 |
| Cable lock slot | Yes |
| Technical details | |
| Product colour | Black |
| Compatibility | Precision Mobile Workstation 7530, 7730 |
| Cable lock slot | Yes |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| AC input voltage | 120-230 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 210 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Ubuntu 16.04 |
| Weight & dimensions | |
| Weight | 720 g |
| Height (front) | 5.2 cm |
| Height (rear) | 5.2 cm |
| Width | 145 mm |
| Depth | 145 mm |
| Height | 52 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Product colour | Black |
| Cable lock slot | Yes |
| Packaging content | |
| Drivers included | Yes |
| Manual | Yes |
| Cables included | Thunderbolt |
| Warranty card | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
