Description

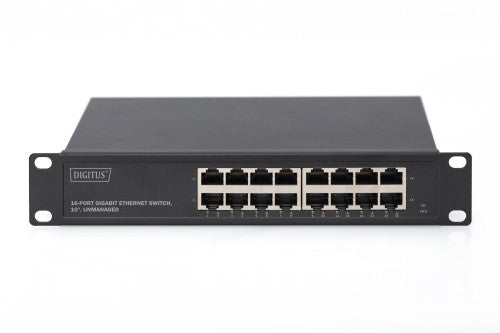

Gigabit Ethernet Switch 16-port, 10 inch, unmanaged
- 16 × 10/100/1000Base-T RJ45 ports
- Simple plug & play installation
- 10" rack mounting (25 cm)
- Switching capacity: 32 Gbps
- Forwarding rate: up to 1,488 Mpps per port
- Store-and-forward switching
- Non-blocking architecture
- IEEE 802.3x Flow Control
- Auto-negotiation
- Auto MDI/MDI-X on all ports
- 8K MAC address table
- Fanless metal housing
- Power consumption: max. 15 W

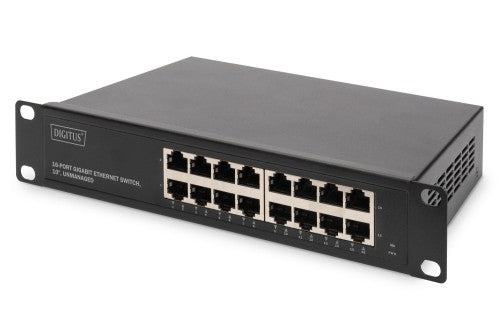

The DIGITUS® DN-80115-1 is a compact 16-port Gigabit switch for high-performance network infrastructures with many wired end devices. With 16 × 10/100/1000Base-T ports and a switching capacity of 32 Gbps, the device offers sufficient performance reserves for parallel data transmissions at high utilization rates. The switch operates as an unmanaged Layer 2 device and requires no configuration. Auto-negotiation automatically detects speed and duplex mode, while Auto MDI/MDI-X enables the use of different cable types without manual adjustment. The non-blocking architecture combined with store-and-forward technology ensures reliable, packet-checked data forwarding. IEEE 802.3x Flow Control (Full Duplex) and Back-Pressure (Half Duplex) support stable performance even with increased network load. The fanless metal housing ensures silent operation and reduces mechanical wear parts. Thanks to its 10" compatibility (1U), the switch is particularly suitable for compact network cabinets, wall distributors or structured building cabling.
Key Features
- Ports: 16 × 10/100/1000Base-TX
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
- Switching capacity: 32 Gbps
- Forwarding: Non-blocking
- Architecture: Store-and-Forward
- MAC addresses: 8K
- Duplex mode: Half / Full Duplex Auto-Detection
- Flow Control: IEEE 802.3x (Full Duplex), Back-Pressure (Half Duplex)
- Design: 10" (25 cm)
- Mounting: Rack or desktop
- Housing: Metal
- Fan: No (passive cooling)
- Dimensions: approx. 252 × 150 × 42 mm
- Input voltage: 100-240 V AC, 50/60 Hz
- Internal power supply unit
- Power consumption: max. 15 W
- Operating temperature: 0 °C to 40 °C
- Storage temperature: -10 °C to 70 °C
- Humidity: 5 % - 95 % (non-condensing)
Description
Expands networks quickly and cost-effectively by 16 Gigabit ports, ideal for compact 10" distribution solutions.- 16 × 10/100/1000Base-T RJ45 ports
- Simple plug & play installation
- 10" rack mounting (25 cm)
- Switching capacity: 32 Gbps
- Forwarding rate: up to 1,488 Mpps per port
- Store-and-forward switching
- Non-blocking architecture
- IEEE 802.3x Flow Control
- Auto-negotiation
- Auto MDI/MDI-X on all ports
- 8K MAC address table
- Fanless metal housing
- Power consumption: max. 15 W
The DIGITUS® DN-80115-1 is a compact 16-port Gigabit switch for high-performance network infrastructures with many wired end devices. With 16 × 10/100/1000Base-T ports and a switching capacity of 32 Gbps, the device offers sufficient performance reserves for parallel data transmissions at high utilization rates. The switch operates as an unmanaged Layer 2 device and requires no configuration. Auto-negotiation automatically detects speed and duplex mode, while Auto MDI/MDI-X enables the use of different cable types without manual adjustment. The non-blocking architecture combined with store-and-forward technology ensures reliable, packet-checked data forwarding. IEEE 802.3x Flow Control (Full Duplex) and Back-Pressure (Half Duplex) support stable performance even with increased network load. The fanless metal housing ensures silent operation and reduces mechanical wear parts. Thanks to its 10" compatibility (1U), the switch is particularly suitable for compact network cabinets, wall distributors or structured building cabling.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 1488 Mpps |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | Yes |
| Vandal-proof | No |
| Suitable for outdoor use | No |
| Country of origin | China |
| Performance | |
| Fanless | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power supply location | Internal |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | No |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 150 mm |
| Height | 42 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Package volume | 5145.6 cm³ |
| Package width | 320 mm |
| Package depth | 240 mm |
| Package height | 37 mm |
| Package weight | 1.44 kg |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Metal |
| Rack mounting | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Shipping (inner) case gross weight | 1.6 kg |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 490 mm |
| Master (outer) case gross weight | 12.8 kg |
| Products per master (outer) case | 8 pc(s) |
| Harmonized System (HS) code | 85176990 |
