Digitus 2,5" SATA HDD Enclosure M.2 or mSATA

2,5" SATA HDD Enclosure M.2 or mSATA SATA 3 6 Gbit/s, write speed up to 520 MB/s

Key Features

• 2.5" SATA HDD Enclosure with 7 mm height
• Suitable for M.2 SSD (2230, 2242, 2260, 2280) with B-Key or B+M-Key
• Suitable for mSATA SSD (full size)
• Allows booting from the built-in SSD
• SATA III interface with 6 Gbit/s
• Reading speed up to 520 MB/s
• SATA Rev.3.2 with DEVSLP energy saving mode
• Mode Setting via DIP Switch

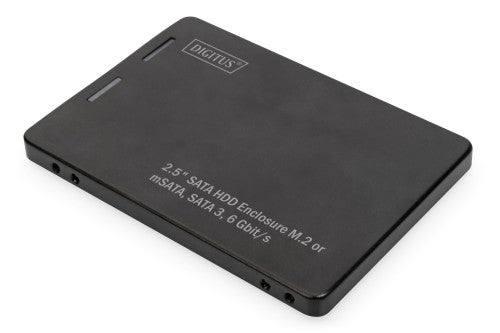

• Completely closed aluminium housing
• PCI Express M.2 Spec. Revision 0.7, Version 1.0
• PCI Express Mini Card Electromechanical Spec. 1.2
• Dimension: 100 x 70 x 7 mm

Description

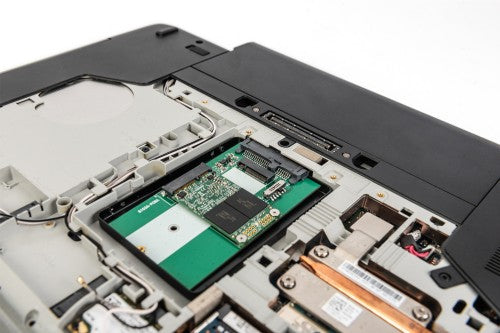

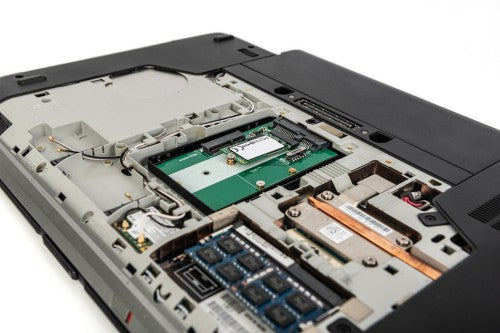

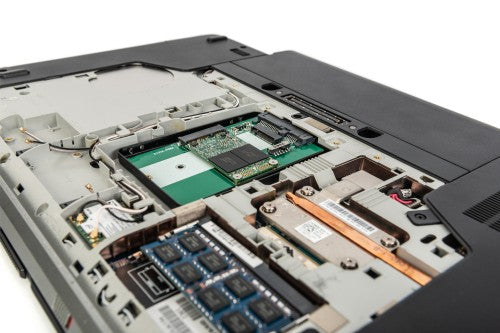

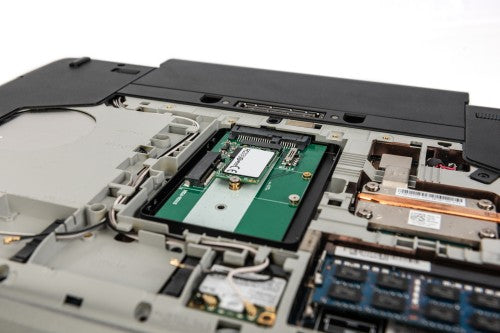

Use an M.2 or mSATA SSD as a 2.5" hard disk for your PC or notebook

- Suitable for M.2 SSD (2230, 2242, 2260, 2280) with B-Key or B+M-Key
- Suitable for mSATA SSD (full size)
- Allows booting from the built-in SSD

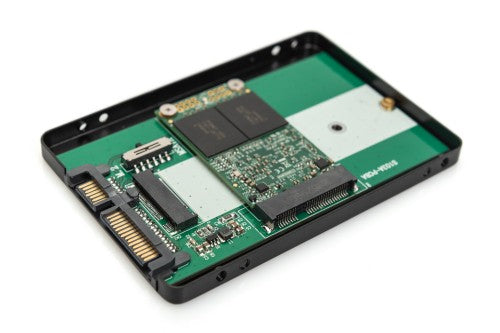

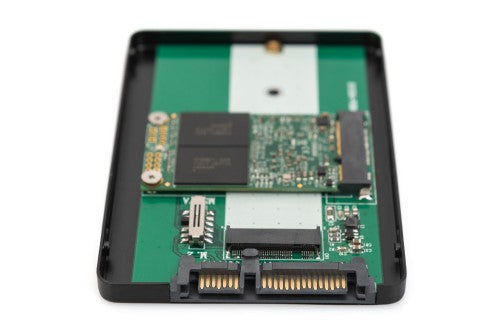

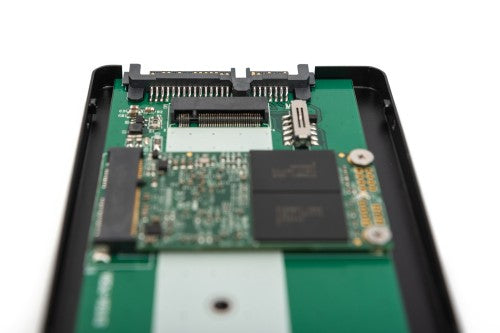

With the DIGITUS® 2.5" SATA HDD Enclosure, you can increase system speed and performance cost-effectively by installing an M.2 or mSATA SSD in your PC or notebook. The hard disk adapter is used like a standard 2.5" hard disk with SATA III connection. Due to the low installation height of only 7 mm, it can be installed in all common notebooks. M.2 (NGFF) SSDs of the following type are supported: M.2 Types 2230, 2242, 2260, 2280 with B-Key and B+M-Key. M.2 PCIe NVMe SSDs with M-Key are not supported. Furthermore mSATA SSDs with Mini PCIe 52 PIN are supported as full size version. The built-in SSD is selected via DIP switch on the board. Boot processes are supported by the adapter for all standard operating systems such as Windows, Mac OS or Linux. The internal SSD memory is protected from dust and damage by the completely closed aluminum housing. The SATA III interface offers a data transmission speed of 6 Gbit/s, the reading speed can be up to 520 MB/s, depending on the SSD used. The adapter supports SATA Rev.3.2 with DEVSLP power saving mode.

Specifications

Storage
Number of storage drives supported	1
Storage drive size	2.5"
Installed storage drive type	SSD
Supported storage drive interfaces	M.2, mSATA
Installed storage drive interface	Serial ATA III
Ports & interfaces
USB connectivity	No
Technical details
Material	Aluminium
Data transfer rate	6 Gbit/s
Product colour	Black
Country of origin	China
Harmonized System (HS) code	84733080
Design
Product type	SSD enclosure
Material	Aluminium
Product colour	Black
Performance
Country of origin	China
Data transfer rate	6 Gbit/s
Packaging data
Package weight	100 g
Package width	120 mm
Package depth	100 mm
Package height	15 mm
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Weight & dimensions
Width	100 mm
Depth	70 mm
Height	7 mm
Package weight	100 g
Package width	120 mm
Package depth	100 mm
Package height	15 mm
Logistics data
Harmonized System (HS) code	84733080
