Description

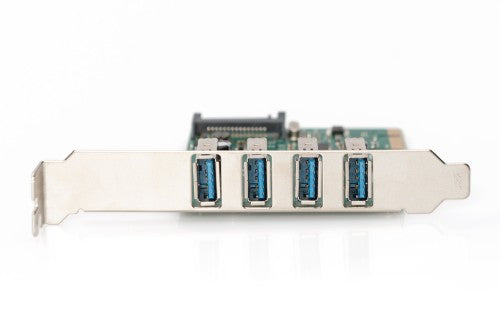

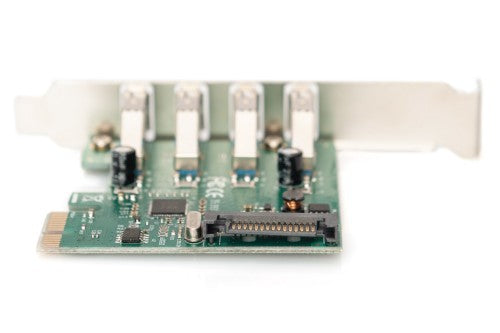

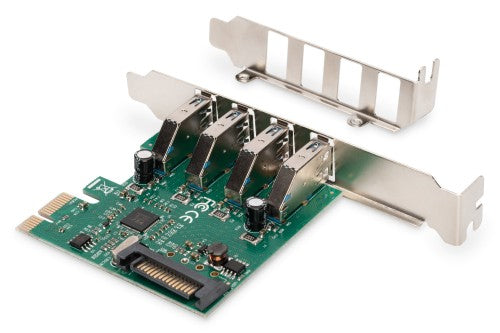

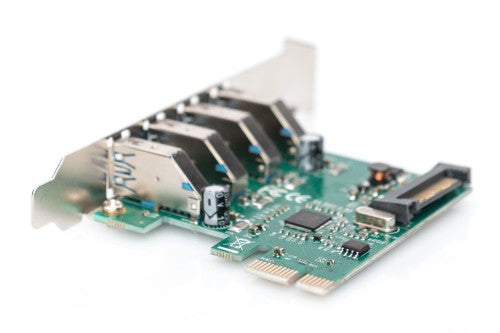

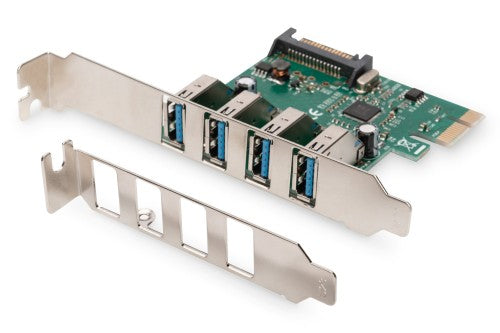

USB 3.0, 4 Port, PCI Express Add-On card 4 Ports A/F External, VL805 chipset
- Data transfer rate up to 5 Gbps
- Supports plug and play and hot swapping
- 4x USB 3.0 ports
The performance boost for the new generation of ultra fast USB peripherals
Key Features
- 4x USB 3.0 ports
- Downward compatible to USB 2.0/1.1 devices
- Supported data transfer rates: Super-Speed (5Gbps), High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps)
- Supports plug and play and hot swapping
- Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 1.x
- Supports PCI bus power management interface specification revision 1.2
- Microsoft certified WHQL drivers for Windows 7 32/64-bit, Vista 32/64-bit and XP 32/64-bit
- Operating temperature: 0 °C - 70 °C
- Operating humidity: 25% - 65% RH (non-condensing)
- Supports Windows 10, 8, 7, Vista and XP
Description
Data transfer rate up to 5 Gbps- Data transfer rate up to 5 Gbps
- Supports plug and play and hot swapping
- 4x USB 3.0 ports
The performance boost for the new generation of ultra fast USB peripherals
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| Interface | USB |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| USB connector form factor | Straight |
| Bandwidth | |
| Maximum data transfer rate | 5000 Mbit/s |
| Network | |
| Chipset | VL805 |
| Security algorithms | WHQL |
| Maximum data transfer rate | 5000 Mbit/s |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Design | |
| Chipset | VL805 |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Internal | Yes |
| Country of origin | China |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 25 - 65% |
| Security | |
| Security algorithms | WHQL |
| Packaging data | |
| Drivers included | Yes |
| Package weight | 131 g |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| Performance | |
| Security algorithms | WHQL |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
| Package weight | 131 g |
| Other features | |
| Chipset | VL805 |
| Manual | Yes |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
