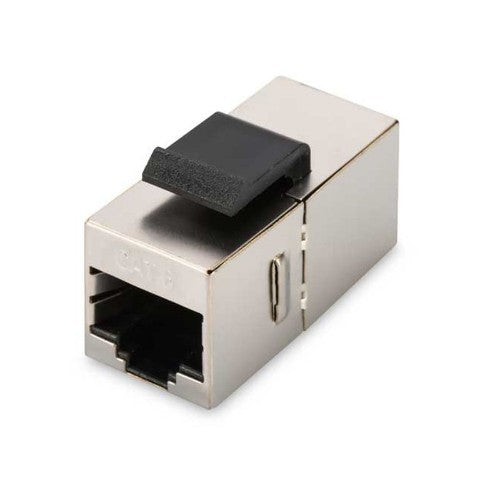

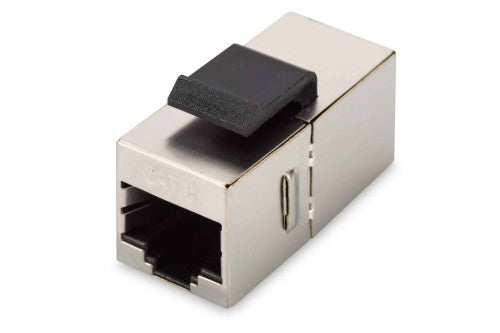

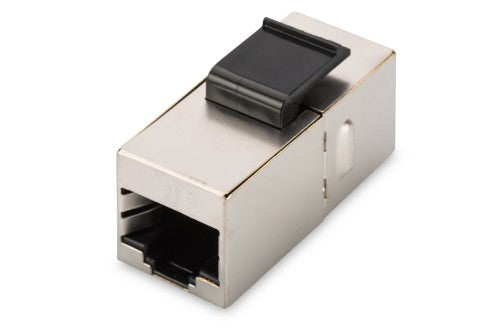

Digitus CAT 6 Class E Modular coupling, shielded

CAT 6 modular coupler, shielded RJ45 to RJ45, for panel connection

Key Features

• Transmission property: Category 6
• Application areas: Up to 250 MHz, 1GBase-T
• Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
• General properties:
• Suitable for 483 mm (19") rack mounting
• 2x RJ45 sockets, 8P8C
• 360° shield contacting
• 1:1 Occupied
• Technical features:
• Housing material: Zinc die-cast, nickel-plated
• RJ45 socket material: ABS UL 94V-0
• Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
• RJ-45 shielding: Nickel-plated bronze
• Printed circuit board: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Tensile load: 7.7 kg between socket and plug
• Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• In accordance with IEC 60512-5, IEC 60512-6-5
• Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• Core receptacle: 22-26 AWG solid and stranded conductors
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 milliOhms
• Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Description

The modular couplers from DIGITUS® are shielded and offer excellent performance and connection quality for your network. Equipped with 2 RJ45 sockets in the 1:1 assignment, they are suitable for patch panel mounting.

Specifications

Features
Connector(s)	RJ-45
Material	ABS synthetics, Copper, Nickel
Connector contacts plating	Gold
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Packaging data
Package width	60 mm
Package length	2 cm
Package height	90 mm
Technical details
Package width	60 mm
Package length	2 cm
Package height	90 mm
Connector(s)	RJ-45
Ports quantity	2
Material	ABS synthetics, Copper, Nickel
Connector contacts plating	Gold
Logistics data
Country of origin	China
