Description

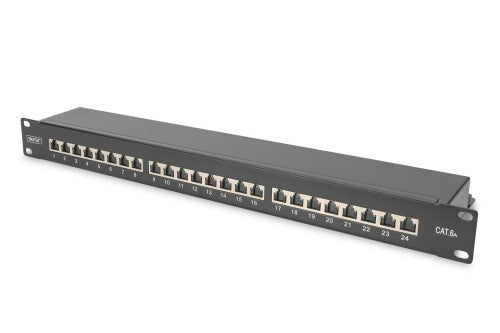

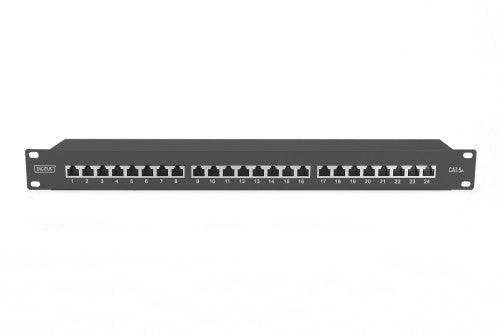

CAT 6A Patch Panel, shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483 mm (19") / 482.6x44x109
- Robust patch panel with sturdy metal housing
- Complete shielding of housing and shield contacting

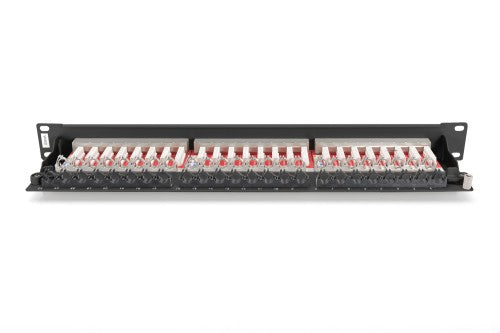

- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- Metal-coated (electrically conductive) cable fixation for earthing the cable shielding
The DIGITUS® "DN-91624S-EA" CAT 6A patch panel is available in a 24-port version and, with its 1.5 mm galvanized cold-rolled steel, is a robust patch panel for 19" rack mounting. It complies with the 802.3at PoE+ and 802.3af PoE standard and is equipped with dust protection flaps.
Key Features
- Transmission characteristics: Category 6A, class EA
- Application areas: Up to 500 MHz, 10GBase-T
- Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- General properties:
- Suitable for 483 mm (19") rack mounting

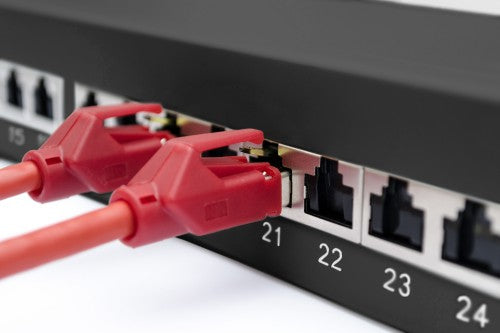

- RJ45 sockets, 8P8C
- Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B

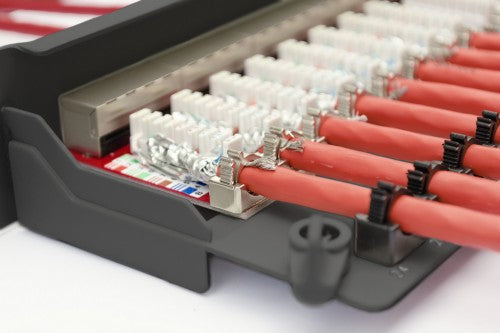

- Cable fixing by means of quick latches
- Central earthing connection
- 360° shield contacting
- Mechanical properties:
- Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 socket material: ABS UL 94V-0
- Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
- RJ-45 shielding: Nickel-plated bronze
- LSA cutting clamp: Krone LSA+, UL 94V-0, galvanized phosphor bronze
- Earthing wire: Not included in the scope of delivery
- Printed circuit board: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Tensile load: 7.7 kg between socket and plug
- Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- Core receptacle: 22-26 AWG solid and stranded conductors"
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 milliOhms
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Description
Future-oriented standards and high-end quality for your network.- Robust patch panel with sturdy metal housing
- Complete shielding of housing and shield contacting
- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- Metal-coated (electrically conductive) cable fixation for earthing the cable shielding
The DIGITUS® "DN-91624S-EA" CAT 6A patch panel is available in a 24-port version and, with its 1.5 mm galvanized cold-rolled steel, is a robust patch panel for 19" rack mounting. It complies with the 802.3at PoE+ and 802.3af PoE standard and is equipped with dust protection flaps.
Specifications
| Network | |
|---|---|
| Cable types supported | Cat6a |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Steel |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Width | 482.6 mm |
| Height | 44 mm |
| Depth | 109 mm |
| Package weight | 1.69 kg |
| Package volume | 2390.85 cm³ |
| Package width | 483 mm |
| Packaging content | |
| Anti-dust plug | Yes |
| Packaging data | |
| Package weight | 1.69 kg |
| Package volume | 2390.85 cm³ |
| Package depth | 110 mm |
| Package width | 483 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Mounting | Rack mounting |
| Operating temperature (T-T) | -20 - 70 °C |
| Package width | 483 mm |
| Material | Steel |
| Harmonized System (HS) code | 85371098 |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85371098 |
| UK Trade Tariff code | 85369010 |
