Digitus Charging Trolley for 30 Notebooks / Tablets up to 16 inch, USB-A

Charging trolley, 16", USB-A 30 charge bases, PDU, fan, 1260 x 824 x 650 mm

Key Features

• Double Folding Front and Back Door
• Pressure lock system with swiveling lever handle on the front and back door, lockable
• 180° door opening angle
• 2-point locking (rod lock)
• Incl. 4 rollers (2 lockable)
• Including handles for better mobility (enclosed)
• Product dimensions (H x W x D) in mm: 1260 x 824 x 650 mm
• Safety plug socket (AC) with switch on the side
• C20 connection on the side
• Incl. RCD 30 mA (residual current operated device)
• Delivery is completely assembled
• Depth of inner tray: 415 mm (suitable for up to 16" devices)
• Casters can be dismantled if necessary
• USB-A Port Output: 10W (5 V 2.1A) per port; 300W max.
• Temperature control: Fans start automatically when the internal temperature exceeds 40 °C

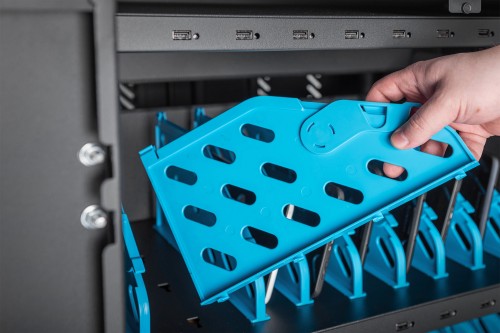

• Blue plastic holders can be dismantled if necessary

Description

The ideal solution for storing and charging your portable devices.

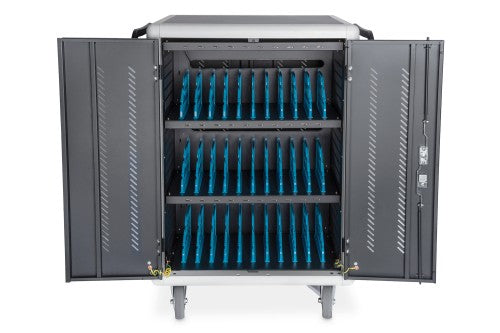

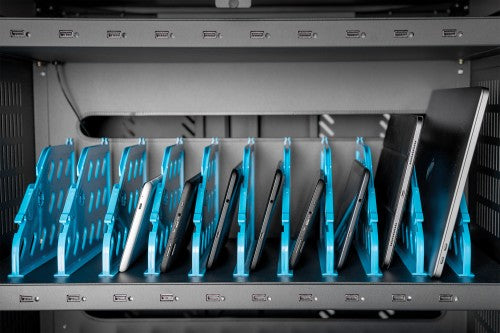

- 30 stations (3x10) for devices

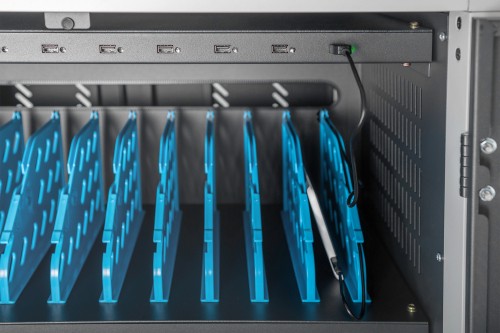

- 30 x USB-A connection (5V, 2.1A)

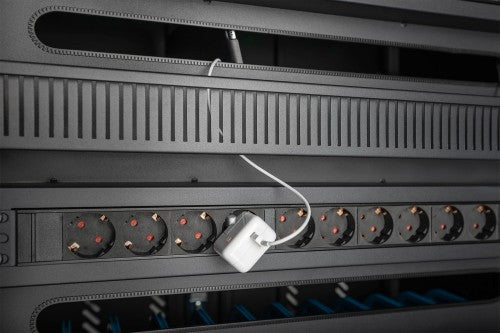

- 3 x socket strip installed on the back (10 x safety sockets)
- Cable feedthrough and excessive cable storage on each level
- Compact housing, mobile thanks to installed rollers
- 3 x ventilator (24 V) for active cooling of the cabinet
- Incl. RCD 30 mA (residual current operated device)

The mobile charging cabinet from DIGITUS® is the ideal and compact solution for storing and charging your portable devices such as notebooks and tablets. Mobile charging cabinets are frequently used in public facilities such as schools in order to store devices securely at a central location while charging them at the same time. The cabinet includes 3 rows with 10 charging stations each, all of which have their own USB connection on the front. The devices can also be connected with installed socket strips (3 x 10 safety sockets) at the back. Thanks to ample cable feedthroughs and excess cable storage, optimal cable management is guaranteed. Installed ventilators (3 x 24 V) combined with ventilation slits ensure active cooling of the cabinet.

Specifications

Technical details
Lock type	Key
LED indicators	Yes
Handle(s)	Yes
Type	Freestanding
Placement	Floor
Supported portable devices	Laptop
Number of devices supported	30
Maximum screen size	39.6 cm (15.6")
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Steel
Certification	CCC, CE, RoHS
Ventilation	Yes
Castor wheels	Yes
Locking	Yes
Package volume	669438 cm³
Design
Handle(s)	Yes
Type	Freestanding
Placement	Floor
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Steel
Castor wheels	Yes
Lockable wheels	Yes
Features
Lock type	Key
LED indicators	Yes
Supported portable devices	Laptop
Number of devices supported	30
Maximum screen size	39.6 cm (15.6")
Certification	CCC, CE, RoHS
Ventilation	Yes
Locking	Yes
Charging source	AC
AC outlet types	C20 coupler
Power
Output voltage	110 - 220 V
Input current	16 A
AC input voltage	110 - 220 V
AC input frequency	50 - 60 Hz
Total power	3500 W
Power per device	20 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-15 - 45 °C
Storage relative humidity (H-H)	20 - 80%
Certificates
Certification	CCC, CE, RoHS
Weight & dimensions
Width	700 mm
Depth	650 mm
Height	1100 mm
Package width	770 mm
Package depth	690 mm
Package height	1150 mm
Package weight	128 kg
Packaging content
Manual	Yes
Cables included	AC
Packaging data
Package width	770 mm
Package depth	690 mm
Package height	1150 mm
Package weight	128 kg
Logistics data
Country of origin	China
Package volume	669438 cm³
UK Trade Tariff code	94039910
