Description

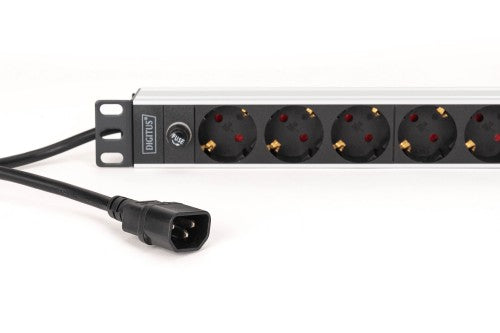

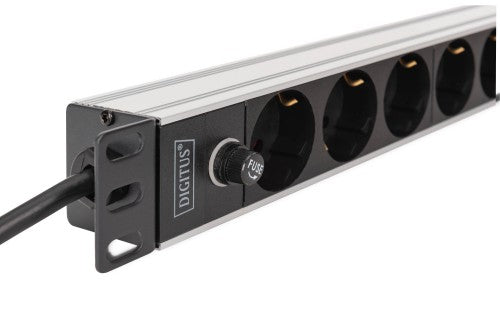

1U Alu PDU,rackmount.,9x CEE 7/7 outlet,1x outlet 10A Plug, 250VAC 50/60Hz, IEC C14 plug, pre-fuse
- Perfect power source for your 482.6 mm (19") enclosure
- Sockets are rotated by 45° for optimum space management and easy access
The DIGITUS® power strips are the perfect solution for your 482.6 mm (19") network or server cabinet. Optimized for cabinet mounting, the DIGITUS® power strips with 220-240V at 50-60 Hz offer you the best performance with a suitable load. The 482.6 mm (19") mounting material supplied ensures optimum attachment to the profile rails of your cabinets. Each socket strip can be mounted horizontally or vertically and, depending on the cabinet type, it is possible to mount the socket strip with the taps facing upwards or downwards.
Key Features
- 9x socket outlets with earthing contact 250VAC 50/60Hz / 10A / 2500W
- Aluminum profile
- 2x angle profiles for cabinet assembly
- 2 m supply cable H05VV-F 35 1.5 mm² with IEC C14 plug
- Plastic components made of ABS UL-94V-0
- Earthing on the aluminum profile
- Sockets with earthing contact rotated by 45
- Back-up fuse
Description
Safe and professional power supply in the 482.6 mm (19") range- Perfect power source for your 482.6 mm (19") enclosure
- Sockets are rotated by 45° for optimum space management and easy access
The DIGITUS® power strips are the perfect solution for your 482.6 mm (19") network or server cabinet. Optimized for cabinet mounting, the DIGITUS® power strips with 220-240V at 50-60 Hz offer you the best performance with a suitable load. The 482.6 mm (19") mounting material supplied ensures optimum attachment to the profile rails of your cabinets. Each socket strip can be mounted horizontally or vertically and, depending on the cabinet type, it is possible to mount the socket strip with the taps facing upwards or downwards.
Specifications
| Design | |
|---|---|
| Mounting | Horizontal/Vertical |
| Product colour | Black, Silver |
| Cable colour | Black |
| Rack capacity | 1U |
| Housing material | ABS synthetics, Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | Type F |
| Power plug | C14 coupler |
| Features | |
| Cable length | 2 m |
| Cable type | H05VV-F 35 |
| Ergonomics | |
| Cable length | 2 m |
| Cable type | H05VV-F 35 |
| Power | |
| Maximum power | 2500 W |
| Nominal input voltage | 250 V |
| Output voltage | 250 V |
| Power protection features | Overload |
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Weight | 750 g |
| Size (imperial) | 48.3 cm (19") |
| Width | 45 mm |
| Depth | 45 mm |
| Height | 483 mm |
| Package width | 970 mm |
| Package depth | 580 mm |
| Package height | 510 mm |
| Package weight | 930 g |
| Packaging data | |
| Package width | 970 mm |
| Package depth | 580 mm |
| Package height | 510 mm |
| Package weight | 930 g |
