Description
Dual Monitor Mount, 2x 45", 2x 20 kg Mechanical Spring, VESA: 75x75, 100x100, Black
- Suitable for flat & curved screens up to 45"
- Heavy-duty construction: offers a maximum load capacity of up to 20 kg
- Space-saving design with integrated cable management
- VESA Quick-Release function (quick-release fastener) - enables quick attachment or removal of the monitor
- Quick-release coupling to connect the two arms for quick & easy installation
- 2 mounting options: Clamp mounting and table feed-through
- Built-in spring tensioning mechanism: for perfect weight adjustment
- 180° rotation stop: prevents the monitor arm from swinging against screens or walls
- VESA compatibility: 75x75, 100x100
- Tested & certified ergonomic product - Certified by IGR (Institute for Health and Ergonomics)
Powerful monitor mount for maximum flexibility and stability This fully mobile desk mount has been specially developed for large monitors up to 45 inches and a weight per arm of up to 20 kg - ideal for demanding work environments and high-quality setups. Whether flat screen or curved display: the mount offers maximum stability and flexibility in a space-saving design. Thanks to the robust heavy-duty construction, it also supports heavy monitors effortlessly while allowing precise alignment in all directions. The integrated spring tension ensures fine adjustment of the weight so that the monitor can be brought into the desired position effortlessly - without any readjustment. The VESA quick-release function ensures maximum user-friendliness: the monitor can be mounted or removed quickly and easily. The innovative quick-release coupling also makes it easier to connect the two arm segments and significantly reduces the installation effort. With two flexible mounting options - table clamp or grommet - the mount can be attached to almost any workstation. The integrated 180° rotation stop prevents accidental knocks against walls or neighboring screens, while the clever cable management ensures a tidy, professional look. Ideal for users who value ergonomics, stability and functionality - whether in the office, studio or home office.

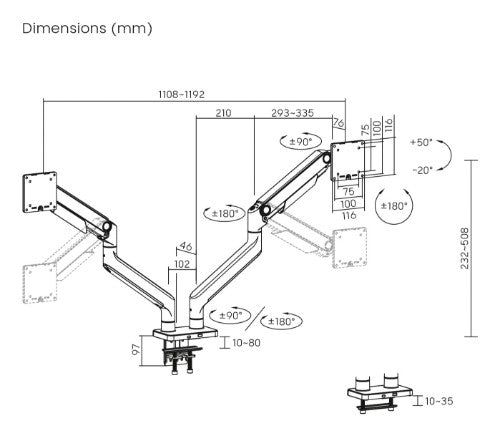

Key Features
- Maximum monitor size: 45"
- Maximum load: 20 kg
- Mechanical spring with tension adjustment
- VESA compatibility: 75x75, 100x100
- Suitable for flat and curved monitors
- Tilting the monitor: 70° (+ 50° to -20°)
- Pivoting the monitor: 180° (+90° to -90°)
- Rotating the monitor: 360° (+180° to -180°)
- Full arm extension: 54.5 cm
- Mounting type: Clamp bracket or table feed-through
- Recommended tabletop thickness: Clamp: 10 - 80 mm, table bushing: 10 - 35 mm
- VESA Quick-Release function (quick-release fastener)
- 180° rotation stop
- Integrated cable management
- Material: steel, aluminum, plastic
- Dimensions: D 12.3 x W 122.4 x H 66.3 cm
- Weight: 8.67 kg
- Color: Black
- Tested & certified ergonomic product - Certified by IGR (Institute for Health and Ergonomics)
Description
Fully mobile table mount for 2 screens up to 45" with a maximum weight capacity of 2x 20 kg - suitable for flat screens as well as curved displays- Suitable for flat & curved screens up to 45"
- Heavy-duty construction: offers a maximum load capacity of up to 20 kg
- Space-saving design with integrated cable management
- VESA Quick-Release function (quick-release fastener) - enables quick attachment or removal of the monitor
- Quick-release coupling to connect the two arms for quick & easy installation
- 2 mounting options: Clamp mounting and table feed-through
- Built-in spring tensioning mechanism: for perfect weight adjustment
- 180° rotation stop: prevents the monitor arm from swinging against screens or walls
- VESA compatibility: 75x75, 100x100
- Tested & certified ergonomic product - Certified by IGR (Institute for Health and Ergonomics)
Powerful monitor mount for maximum flexibility and stability This fully mobile desk mount has been specially developed for large monitors up to 45 inches and a weight per arm of up to 20 kg - ideal for demanding work environments and high-quality setups. Whether flat screen or curved display: the mount offers maximum stability and flexibility in a space-saving design. Thanks to the robust heavy-duty construction, it also supports heavy monitors effortlessly while allowing precise alignment in all directions. The integrated spring tension ensures fine adjustment of the weight so that the monitor can be brought into the desired position effortlessly - without any readjustment. The VESA quick-release function ensures maximum user-friendliness: the monitor can be mounted or removed quickly and easily. The innovative quick-release coupling also makes it easier to connect the two arm segments and significantly reduces the installation effort. With two flexible mounting options - table clamp or grommet - the mount can be attached to almost any workstation. The integrated 180° rotation stop prevents accidental knocks against walls or neighboring screens, while the clever cable management ensures a tidy, professional look. Ideal for users who value ergonomics, stability and functionality - whether in the office, studio or home office.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 20 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 3.5 cm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Maximum weight capacity | 40 kg |
| Maximum screen size | 114.3 cm (45") |
| Extension arm (max) | 54.5 cm |
| Clamp mount desk thickness (max) | 8 cm |
| Ergonomics | |
| Cable management | Yes |
| Height adjustment | Yes |
| Pivot angle | -90 - 90° |
| Tilt angle range | -20 - 50° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Feet | Yes |
| Feet colour | Black |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Housing material | Aluminium, Plastic, Steel |
| Orientation | Landscape/Portrait |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 1224 mm |
| Depth | 123 mm |
| Height | 663 mm |
| Weight | 8.67 kg |
| Package width | 327 mm |
| Package depth | 435 mm |
| Package height | 123 mm |
| Package type | Box |
| Package weight | 9.95 kg |
| Packaging data | |
| Package width | 327 mm |
| Package depth | 435 mm |
| Package height | 123 mm |
| Package type | Box |
| Package weight | 9.95 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp |
