Description

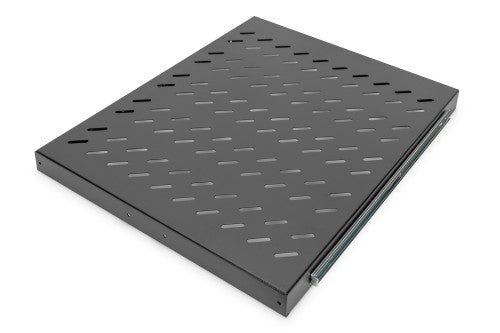

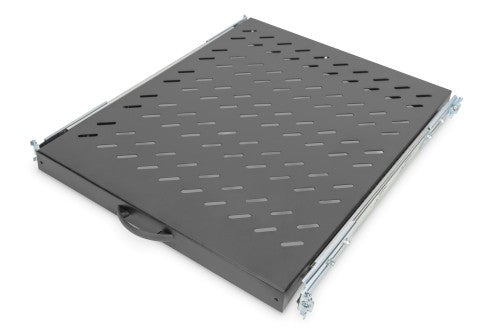

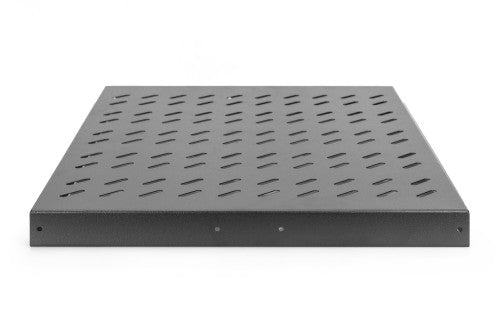

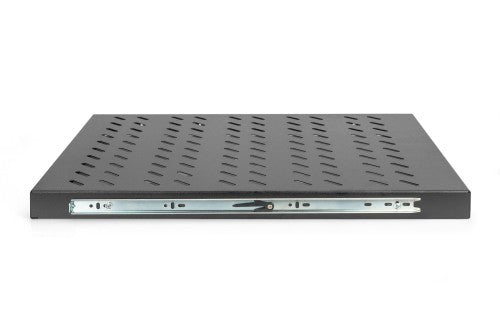

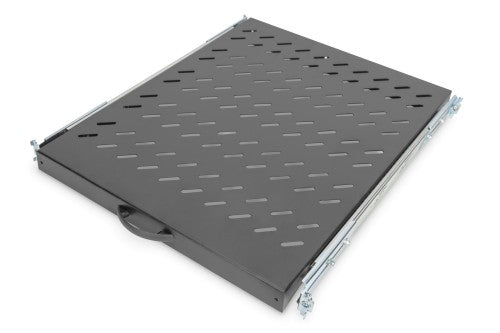

1U extendible shelf for 800 mm depth racks 40x484x568 mm, up to 25 kg, black (RAL 9005)
- For fixing at the four 483 mm (19") mounting profile rails
The extendible Shelves are easy to install at the four 483 mm (19") profile rails of your 483 mm (19") cabinets. Due to the sturdy, perforated sheet steel with a high load capacity, they are the optimal surface for your network components. An attached handle can be installed to faciliate the extension of the shelf. Available in standard color grey (RAL 7035) and black (RAL 9005).
Key Features
- For fixing at the four 483 mm (19") mounting profile rails
- Extractable, with handle bar
- Sturdy, perforated sheet steel
- Delivery with complete set of needed fixing material
- Adjustable mounting brackets MIN.-MAX.: 355 - 680 mm
- 4-point fixing (front- and rear 19" profile rails)
Description
- Extractable, with handle bar- For fixing at the four 483 mm (19") mounting profile rails
The extendible Shelves are easy to install at the four 483 mm (19") profile rails of your 483 mm (19") cabinets. Due to the sturdy, perforated sheet steel with a high load capacity, they are the optimal surface for your network components. An attached handle can be installed to faciliate the extension of the shelf. Available in standard color grey (RAL 7035) and black (RAL 9005).
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 25 kg |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Country of origin | Turkey |
| Weight & dimensions | |
| Package volume | 12852.7 cm³ |
| Package width | 490 mm |
| Package depth | 610 mm |
| Package weight | 3.97 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 25 kg |
| Packaging data | |
| Package volume | 12852.7 cm³ |
| Package width | 490 mm |
| Package depth | 610 mm |
| Package weight | 3.97 kg |
| Technical details | |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 465 x 525 x 30 mm |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
| UK Trade Tariff code | 94039910 |
| Other features | |
| Dimensions (WxDxH) | 465 x 525 x 30 mm |
