Description

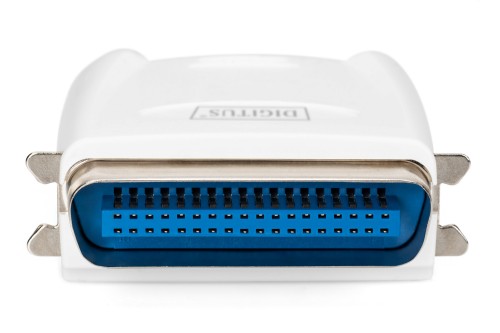

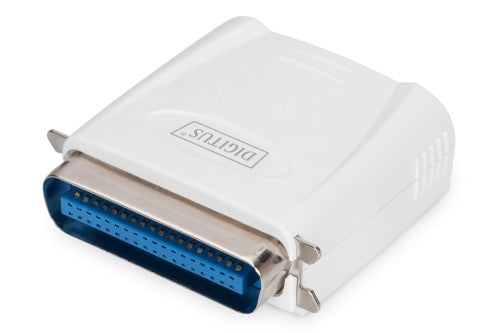

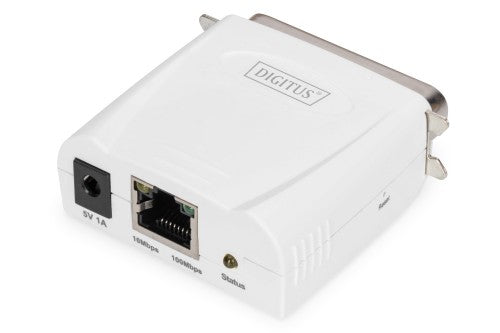

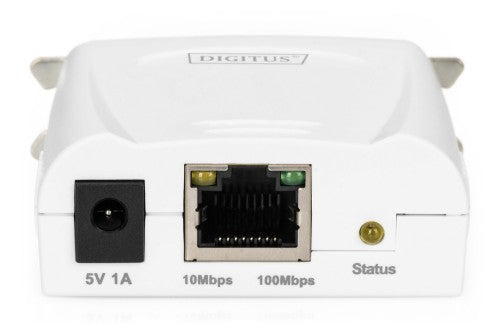

Parallel Print Server, 1-port 1x RJ45, 1x DB-36-pin male Centronics
- Parallel port enables older printers to be integrated in the network
- Automatic recognition of the data transfer speed
- Automatic recognition of the data transfer speed
Parallel Print Server, 1-Port,1x RJ45, 1x DB-36-pin male Centronics
Key Features
- Complies with IEEE 802.3, IEEE 802.3u Wired Ethernet standards
- One parallel port suitable for printer connections
- Supports TCP/IP, IPX/SPX, NetBEUI, and AppleTalk network protocols
- Supports LPR, RAW, IPP and SMB printing protocols
- Supports peer-to-peer printing (TCP/IP/IPX/NetBEUI/AppleTalk)
- Supports server based printing (Novell NetWare (3.12 or above) and Windows)
- Supports DHCP client protocols
- Supports web based management, Windows configuration utility, and SNMP protocol
- Offers a simple installation procedure, setup programs, and diagnostic programs
- Incl. power supply
- Supports Windows (2000, XP, Vista, 7, 8, 10), Mac (OS 8.1 and higher) and Linux
- Power Spec: AC100~240V
- Power consmption: 2W
- DC plug Size: 1.35*3.5*9.5mm
Description
Easily turns a workplace printer into a network printer- Parallel port enables older printers to be integrated in the network
- Automatic recognition of the data transfer speed
- Automatic recognition of the data transfer speed
Parallel Print Server, 1-Port,1x RJ45, 1x DB-36-pin male Centronics
Specifications
| Features | |
|---|---|
| Internal | No |
| Product colour | White |
| Built-in display | No |
| LED indicators | LAN, Status |
| DHCP client | Yes |
| Country of origin | Taiwan |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Network connection type | Ethernet LAN |
| Protocols | |
| Supported network protocols | TCP/IP, IPX/SPX, NetBEUI, AppleTalk |
| Management protocols | SNMP |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 0 |
| DC-in jack | Yes |
| Technical details | |
| Internal | No |
| Product colour | White |
| Built-in display | No |
| DHCP client | Yes |
| Country of origin | Taiwan |
| Software | |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x |
| Packaging data | |
| Package width | 230 mm |
| Package type | Box |
| Package height | 70 mm |
| Package depth | 150 mm |
| Package weight | 480 g |
| Package dimensions (WxDxH) | 230 x 150 x 70 mm |
| Indication | |
| LED indicators | LAN, Status |
| Power | |
| External power adapter | Yes |
| Packaging content | |
| External power adapter | Yes |
| Other features | |
| Package width | 230 mm |
| Package height | 70 mm |
| Package depth | 150 mm |
| Country of origin | Taiwan |
