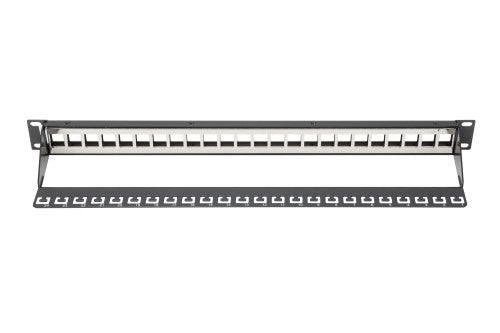

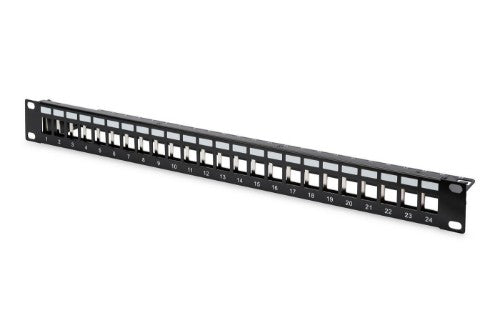

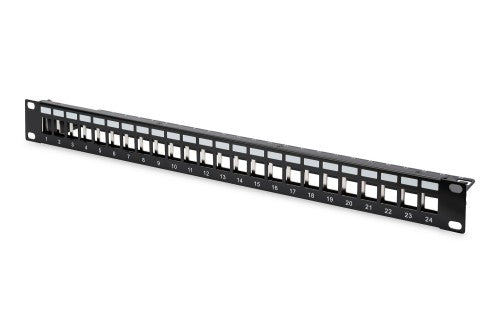

Modular Patch Panel, shielded 24-port, blank, 1U, rack mount, black RAL 9005
Key Features
- Keystone mount version: Straight
- Application areas: 483 mm (19") distribution cabinet
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.2
- General properties:
- Suitable for 483 mm (19") rack mounting
- Suitable for shielded Digitus® Keystone modules and connectors
- Central earthing connection
- Technical features:
- Housing material: 1.5 mm SPCC cold-rolled sheet steel, powder-coated
- Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
- Material earthing bar: galvanized steel
- Physical properties:
- Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Color: Black RAL9005
Description
The modular patch panel from DIGITUS® is available as a 16- or 24-port version. The 1.5 mm cold-rolled carbon steel provides optimum support for your Keystone modules.
Specifications
| Network |
|---|
| Ports quantity |
24 |
| Design |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
483 mm |
| Depth |
1.5 mm |
| Package weight |
873.333 g |
| Package volume |
4200 cm³ |
| Package width |
560 mm |
| Packaging data |
|---|
| Package weight |
873.333 g |
| Package volume |
4200 cm³ |
| Package depth |
75 mm |
| Package width |
560 mm |
| Features |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Product colour |
Black |
| Technical details |
|---|
| Mounting |
Rack mounting |
| Package width |
560 mm |
| Harmonized System (HS) code |
85371098 |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
85371098 |
| UK Trade Tariff code |
83024900 |
