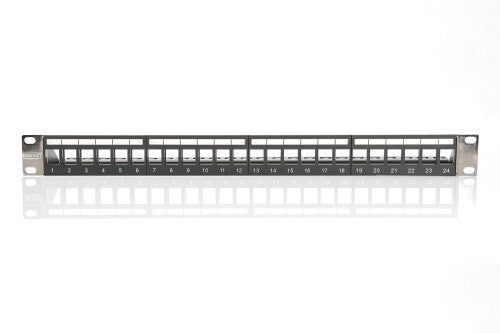

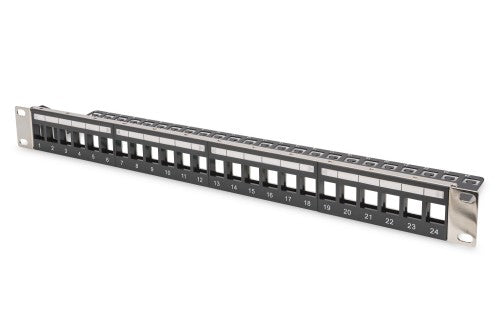

Modular Patch Panel, shielded, 24-port blank, 1U, Rack Mount, transp. label field, black
Key Features
- Compatible with DIGITUS® CAT5e, CAT6 & CAT6A jacks
- Part or fully load
- Compatible with DIGITUS® shielded and unshielded jacks
- Available in grey and black color
- Modular version is perfect for pre-terminated and standard installations
- Delivered with rear management tray
- Operating temperature range: -20 to +75 °C
- Transparent label fields
Description

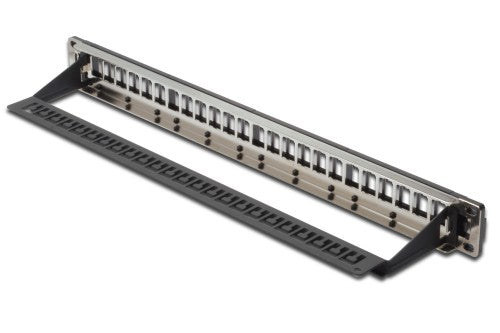

DIGITUS® modular patch panel are specially designed for 19" rack installation and for mounting DIGITUS® keystone jacks. The modular patch panel is available in two different colors, grey RAL 7035 and black RAL 9005. The material consists of SPCC, 1.55 mm cold-rolled carbon steel in compliance with JIS G3141-1996. The front part of the modular patch panel is manufactured of ABS High-Impact UL-94V-0. The rear management tray with special designed cable tie positions, is delivered as snapping in tool for simple installation.
Specifications
| Network |
|---|
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Ports quantity |
24 |
| Design |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Material |
Acrylonitrile butadiene styrene (ABS), Steel |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 75 °C |
| Packaging data |
|---|
| Package weight |
770 g |
| Package volume |
3120 cm³ |
| Package depth |
120 mm |
| Package width |
520 mm |
| Package height |
50 mm |
| Features |
|---|
| Mounting |
Rack mounting |
| Rack capacity |
1U |
| Material |
Acrylonitrile butadiene styrene (ABS), Steel |
| Product colour |
Black |
| Technical details |
|---|
| Mounting |
Rack mounting |
| Operating temperature (T-T) |
-20 - 75 °C |
| Package width |
520 mm |
| Package height |
50 mm |
| Material |
Acrylonitrile butadiene styrene (ABS), Steel |
| Harmonized System (HS) code |
85371098 |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case gross weight |
7.7 kg |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
540 mm |
| Master (outer) case length |
310 mm |
| Master (outer) case height |
280 mm |
| Country of origin |
China |
| Harmonized System (HS) code |
85371098 |
| UK Trade Tariff code |
83024900 |
| Weight & dimensions |
|---|
| Package weight |
770 g |
| Package volume |
3120 cm³ |
| Package width |
520 mm |
| Package height |
50 mm |
