Description
OnLine UPS Module, 1500VA/1500W
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

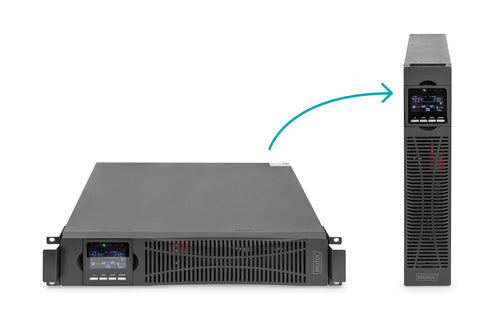

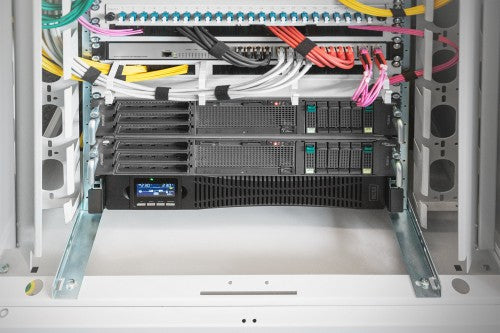

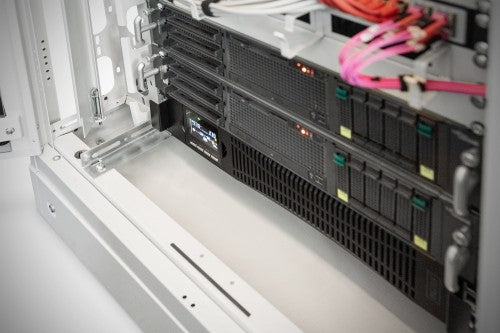

- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO (Remote Emergency Power Off) function switches the UPS off in the event of an emergency. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops supplying power to the load. The UPS stops charging.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.
Key Features
- Online double conversion system (VFI-SS-111)

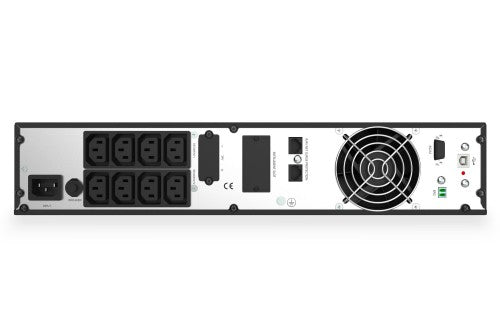

- Input: IEC60320 C14 socket, 208/220/230/240 Vac
- Output: 8 x IEC60320 C13, max. 10A per socket outlet
- Nominal system power: 1500 VA / 1500 W, power factor 1.0
- AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
- Internal battery pack can be replaced during operation.
- Battery: Valve-protected, non-spillable lead-acid battery
- Battery quantity: 3 x 12V x 9.0 Ah
- Full load running time: 4 min; half load running time: 12 min
- Charging: 4 hours to 90% capacity after full discharge
- Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.
- Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
- Emergency Power-off (EPO) contact for switching off the UPS in an emergency
- Maximum operating temperature: 0 - 40 °C
- Storage temperature: -25 - 55 °C
- Relative humidity: 20 - 90% non-condensing
- Operating altitude: < 1500 m
- Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
- Product weight: 15.5 kg
- Shipping dimensions WxDxH (mm): 555 x 595 x 202
- Shipping weight: 20.2 kg
- Safety standards: IEC/EN62040-1,IEC/EN60950-1
- EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
- Approval: CE declaration
- Scope of delivery: UPS device, UPS manual, UPS QSG, feet for tower installation, UPS software license, USB cable, mains cable (1.8m earthed socket (type 7/4) to IEC socket C14), IEC60320 C13 connection cable, 19" installation bracket
- Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
- IP protection class: IP21
- Heat dissipation: 486 BTU/h
- Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).
Description
The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.
- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO (Remote Emergency Power Off) function switches the UPS off in the event of an emergency. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops supplying power to the load. The UPS stops charging.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.
Specifications
| Power | |
|---|---|
| Output power | 1500 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 10 A |
| Efficiency | 93% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 1 |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 98% |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Features | |
| Country of origin | China |
| UPS topology | Double-conversion (Online) |
| Output power | 1500 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 10 A |
| Efficiency | 93% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 1 |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 98% |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Battery | |
| Number of batteries supported | 3 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Typical backup time at half load | 12 min |
| Typical backup time at full load | 4 min |
| Battery recharge time(90%) | 4 h |
| Design | |
| Country of origin | China |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Certification | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 1500 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Software CD | Yes |
| Safety regulation & standards | |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Weight & dimensions | |
| Package width | 555 mm |
| Package depth | 595 mm |
| Package height | 202 mm |
| Weight | 15.5 kg |
| Width | 440 mm |
| Package weight | 19.8 kg |
| Height | 86.5 mm |
| Depth | 460 mm |
| Package volume | 66705.5 cm³ |
| Packaging data | |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Software CD | Yes |
| Package volume | 66705.5 cm³ |
| Package width | 555 mm |
| Package depth | 595 mm |
| Package height | 202 mm |
| Package weight | 19.8 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85078000 |
| UK Trade Tariff code | 85044085 |
| Other features | |
| Size (imperial) | 48.3 cm (19") |
