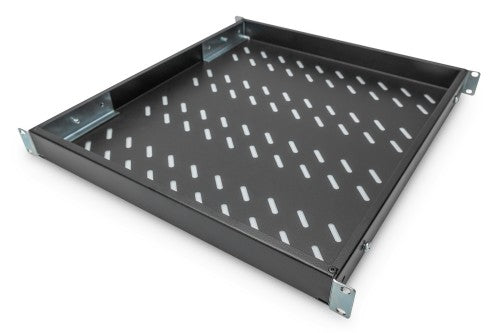

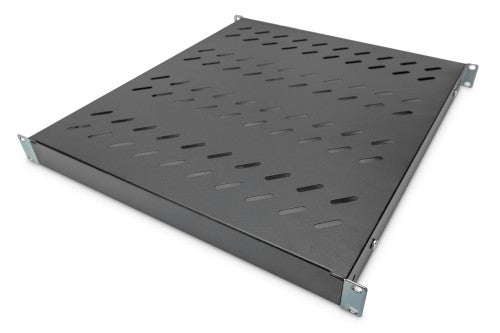

1U fixed shelf for 800 mm depth racks 43x483x508 mm, adjust. up to 700 mm depth, black
Key Features
- for fixed mounting on the four 483 mm (19“) profile rails
- sturdy, perforated steel sheet
- incl. fixing material, M6
- 4-point fixing (front- and rear 19" profile rails)
Description
The shelves for fixed mounting can be installed easy on the four 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to their stable, perforated steel sheet with a load capacity of 50 kg, they are the optimal surface for components which are not 483 mm (19”) suitable. The fixing rails are can be adjusted if needed.
Specifications
| Features |
|---|
| Type |
Adjustable shelf |
| Size (imperial) |
48.3 cm (19") |
| Rack capacity |
1U |
| Maximum weight capacity |
50 kg |
| Product colour |
Black |
| Harmonized System (HS) code |
85389099 |
| Housing material |
Steel |
| Country of origin |
Turkey |
| Weight & dimensions |
|---|
| Package volume |
14437.5 cm³ |
| Package width |
500 mm |
| Package height |
55 mm |
| Package depth |
525 mm |
| Package weight |
3.2 kg |
| Depth (max) |
75 cm |
| Width |
482 mm |
| Weight |
3.2 kg |
| Size (imperial) |
48.3 cm (19") |
| Height |
44 mm |
| Depth |
500 mm |
| Maximum weight capacity |
50 kg |
| Packaging data |
|---|
| Package volume |
14437.5 cm³ |
| Package width |
500 mm |
| Package height |
55 mm |
| Package depth |
525 mm |
| Package weight |
3.2 kg |
| Technical details |
|---|
| Type |
Adjustable shelf |
| Size (imperial) |
48.3 cm (19") |
| Rack capacity |
1U |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
85389099 |
| UK Trade Tariff code |
94039910 |
