Description

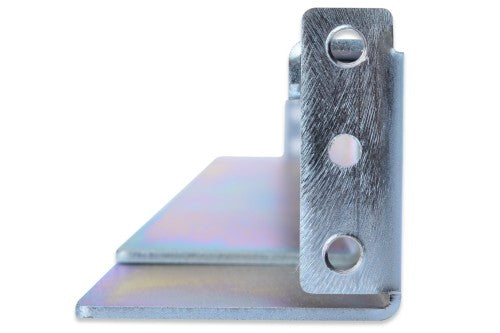

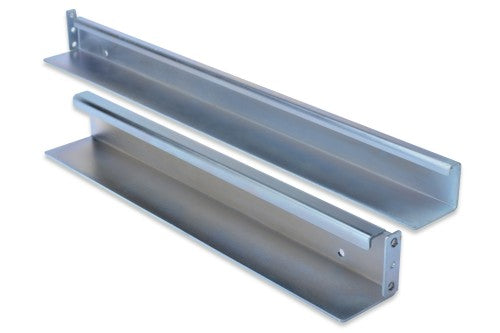

Slide rails, L shape, for 800-1000 mm depth racks adjustable 500-750 mm depth, set with 2 pieces
- Easy installation in the 19" level without cage nuts thanks to threaded holes.
- For DIGITUS® network cabinets Unique, Unique Light with 800 mm or 1000 mm external depth.
- For DIGITUS® server enclosures Unique Server-N with 1000 mm external depth.
- Infinitely variable depth: 500 mm to 750 mm
- Load capacity: 100 kg
The slide rails are used to support heavy installations in DIGITUS® network enclosures of the Unique & Unique Light series and server enclosures of the Unique Server-N series. They are attached to the front and rear 482.6 mm 19" profile rails. Made of galvanized sheet steel and loadable up to 100 kg. The rails are infinitely variable in depth to adapt to individual spacing in the 19" level.
Key Features
- For fixed installation on the four 482.6 mm (19") profile rails
- Galvanized sheet steel with a thickness of 2.00 mm
- Load capacity: 100 kg
- 1 piece consists of two parts (internal and external profile system)
- 1 set = 2 pieces
- Variable depth: 500 mm to 750 mm
- incl. mounting material
Description
For supporting heavy built-in components, such as UPS systems or servers. Infinitely variable depth and suitable for 19" installation.- Easy installation in the 19" level without cage nuts thanks to threaded holes.
- For DIGITUS® network cabinets Unique, Unique Light with 800 mm or 1000 mm external depth.
- For DIGITUS® server enclosures Unique Server-N with 1000 mm external depth.
- Infinitely variable depth: 500 mm to 750 mm
- Load capacity: 100 kg
The slide rails are used to support heavy installations in DIGITUS® network enclosures of the Unique & Unique Light series and server enclosures of the Unique Server-N series. They are attached to the front and rear 482.6 mm 19" profile rails. Made of galvanized sheet steel and loadable up to 100 kg. The rails are infinitely variable in depth to adapt to individual spacing in the 19" level.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 100 kg |
| Product colour | Metallic |
| Harmonized System (HS) code | 85389099 |
| Country of origin | Turkey |
| Weight & dimensions | |
| Mounting depth (min) | 50 cm |
| Mounting depth (max) | 75 cm |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 100 kg |
| Technical details | |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | Metallic |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
