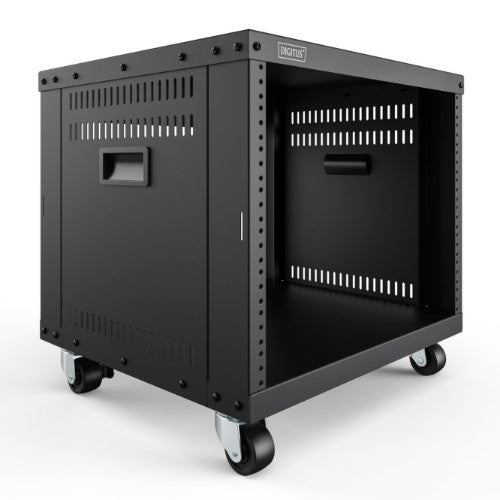

Description
8U AVS rack, 420 x 507 x 460 mm threaded mounting holes, castors, bl
- 19-inch thread perforation for simplified installation work without captive nuts
- Compatible with US or EU screw sizes
- Robust design made of sheet steel with load capacity up to 136 kg

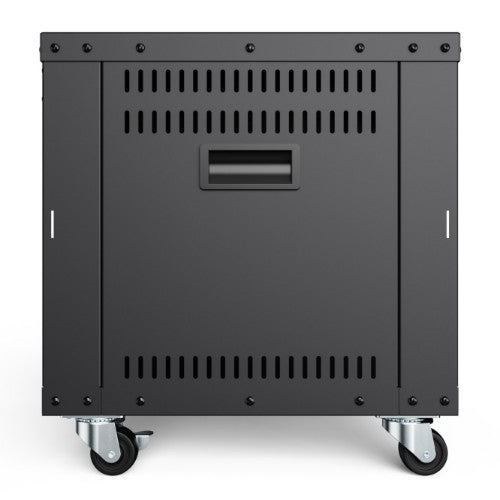

- Side walls with ventilation slits for passive cooling
- Including rollers and carrying handles
- Including screwdriver and 483 mm (19”) dummy cover
- Unassembled delivery as flat pack

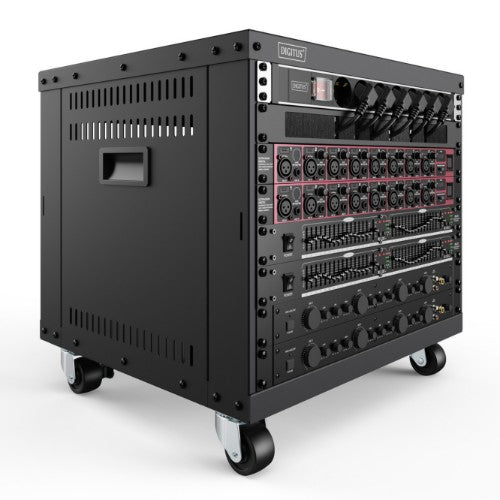

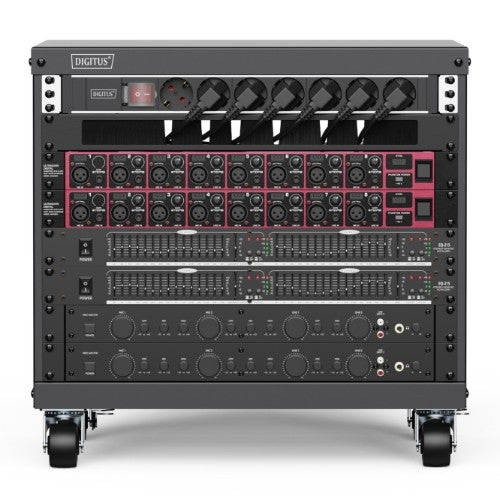

The 19-inch racks from DIGITUS® can be used universally thanks to their 19-inch thread perforation. Audiovisual accessories (AVS) or active and passive network components can be installed in the blink of an eye without needing captive nuts. The thread perforation of the profiles enables compatibility with US or EU screw sizes. Both screw types are included in delivery. Durable sheet steel design ensures the necessary robustness and allows maximum loads of up to 136 kg. Ventilation slits on both side walls ensure passive cooling of installation components. Equipped with rollers and carrying handles, the 19-inch racks are portable as needed for optimal positioning. Delivery is carried out as an unassembled flat pack to optimize logistics effort. The rack is easy and quick to assemble thanks to the included screwdriver and simple design. The portfolio includes various sizes to meet any requirements.
Key Features
- 483 mm (19”) thread perforation on front and back side
- Compatible with US or EU screw sizes
- Robust design made of sheet steel with load capacity up to 136 kg
- Side walls with ventilation slits for passive cooling
- Including rollers and carrying handles
- Including screwdriver and 483 mm (19”) dummy cover
- Unassembled delivery as flat pack
- Product dimensions (H x W x D): 420 x 507 x 460 mm
- Product dimensions flat pack (H x W x D): 160 x 515 x 477 mm
- Weight (net/gross): 13.2 kg / 14.7 kg
- Color: Black (RAL 9005)
- Installation depth for components max.: 457,8 mm
Description
The 19-inch racks from DIGITUS® can be used universally thanks to their 19-inch thread perforation. Audiovisual accessories (AVS) or active and passive network components can be installed in the blink of an eye. Compatible with US or EU screw sizes- 19-inch thread perforation for simplified installation work without captive nuts
- Compatible with US or EU screw sizes
- Robust design made of sheet steel with load capacity up to 136 kg
- Side walls with ventilation slits for passive cooling
- Including rollers and carrying handles
- Including screwdriver and 483 mm (19”) dummy cover
- Unassembled delivery as flat pack
The 19-inch racks from DIGITUS® can be used universally thanks to their 19-inch thread perforation. Audiovisual accessories (AVS) or active and passive network components can be installed in the blink of an eye without needing captive nuts. The thread perforation of the profiles enables compatibility with US or EU screw sizes. Both screw types are included in delivery. Durable sheet steel design ensures the necessary robustness and allows maximum loads of up to 136 kg. Ventilation slits on both side walls ensure passive cooling of installation components. Equipped with rollers and carrying handles, the 19-inch racks are portable as needed for optimal positioning. Delivery is carried out as an unassembled flat pack to optimize logistics effort. The rack is easy and quick to assemble thanks to the included screwdriver and simple design. The portfolio includes various sizes to meet any requirements.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 8U |
| Castor wheels | Yes |
| Maximum weight capacity (rolling) | 136 kg |
| Side panel construction | Steel |
| Type | Freestanding rack |
| Side panels included | Yes |
| Maximum weight capacity | 136 kg |
| Material | Steel |
| Cooling type | Passive |
| Product colour | Black |
| Weight & dimensions | |
| Package volume | 36085.5 cm³ |
| Package depth | 540 mm |
| Package width | 495 mm |
| Package height | 175 mm |
| Package weight | 13.9 kg |
| Width | 507 mm |
| Depth | 460 mm |
| Height | 420 mm |
| Weight | 13.2 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 136 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Screws included | Yes |
| Side panels included | Yes |
| Packaging data | |
| Quick installation guide | Yes |
| Package volume | 36085.5 cm³ |
| Package depth | 540 mm |
| Package width | 495 mm |
| Package height | 175 mm |
| Package weight | 13.9 kg |
| Screws included | Yes |
| Technical details | |
| Package width | 495 mm |
| Package height | 175 mm |
| Type | Freestanding rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Cooling type | Passive |
| Rack capacity | 8U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 94032080 |
