Description

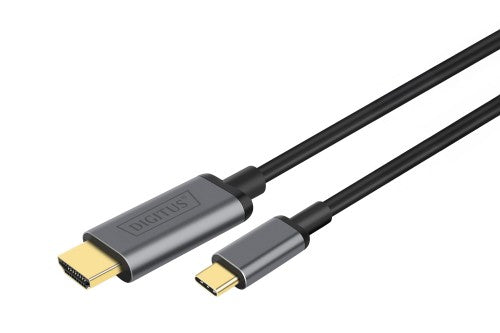

USB-C - HDMI Adapter, 1.8 m 4K/30Hz, black, metal housing
- Supports 4K / 30 Hz
- Latency: Zero frame delay
- Data transfer rate: 5 Gbps
- Length: 1.8 m
- Supports USB 3.1 Gen 1
- Power supply via USB-C connection - no power supply unit required
- Elegant aluminum housing
- Plug and play - no driver installation necessary
The USB-C to HDMI adapter cable from DIGITUS® allows you to connect a monitor, projector or TV to the USB-C port on your notebook or tablet. No additional adapters are required. Depending on the source device, this cable supports resolutions of up to 4K / 30 Hz incl. 3D and ARC support. Data transfer rates of up to 5 Gbps and USB 3.1 features are also supported by this cable. Save yourself additional adapters or converters and use the DIGITUS® USB-C to HDMI adapter cable.
Key Features
- Supported resolution: 4K /30 Hz (3840 x 2160p), 1080p@120Hz, 720p, 480p
- Data transfer rate: 5 Gbps
- USB version 3.1 Gen 1
- Supports 4K 3D, Full HD 3D HFR
- Supports ARC
- Supports YUV 4:4:4
- Supports HDCP 2.0
- Supports HDMI 1.4b
- Supported color depth: 12 bit
- Supports Consumer Electronic Control (CEC)
- Supports lip-sync (audio/video synchronization)
- Supports Multi Stream Audio/Video
- Supports 21:9 Cinemascope
- Supports 32 channel audio
- Supports 8-channel LPCM, 192 kHz, 24-bit audio capability
- Supports DTS-HD Master Audio bitstream
- Supports Super Audio CD (DSD)
- Supports DVD-Audio
- Supports Blu-Ray Disc and HD-DVD audio and video
- Supports EDID 2.0 (device detection)
- Supports DVI Version 1.0
- Latency: Zero frame delay
- Power consumption: 250 mW max.
- Compatible operating systems: Windows 10/8/8.1/7, MacOS® (OS X), Android, Chromebook Pixel
- Operating humidity: 20% - 80% RH
- Operating temperature: -10°C ~ +50°C
- Length: 1.8 m
- Cable sheath: PVC
- Plug housing: Aluminum
- Dimensions: L 46 x 37.6 W x H 13.2 mm
- Weight: 62 g
- Manufacturer's instructions:
- Your USB-C equipped device must support DisplayPort video mode (DP Alt Mode) to be compatible with this adapter/converter.
- The video output capability depends on the graphics card of your notebook and the connected monitor. Some monitors also limit the available resolution.
Description
Outputs an HDMI signal in UHD 4K via the USB-C interface- Supports 4K / 30 Hz
- Latency: Zero frame delay
- Data transfer rate: 5 Gbps
- Length: 1.8 m
- Supports USB 3.1 Gen 1
- Power supply via USB-C connection - no power supply unit required
- Elegant aluminum housing
- Plug and play - no driver installation necessary
The USB-C to HDMI adapter cable from DIGITUS® allows you to connect a monitor, projector or TV to the USB-C port on your notebook or tablet. No additional adapters are required. Depending on the source device, this cable supports resolutions of up to 4K / 30 Hz incl. 3D and ARC support. Data transfer rates of up to 5 Gbps and USB 3.1 features are also supported by this cable. Save yourself additional adapters or converters and use the DIGITUS® USB-C to HDMI adapter cable.
Specifications
| Features | |
|---|---|
| Country of origin | China |
| Colour depth | 12 bit |
| HDMI version | 1.4b |
| Product colour | Grey |
| Cable length | 1.8 m |
| Connector 1 | USB Type-C |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 5 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| HDCP | Yes |
| Certification | CE |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Audio Return Channel (ARC) | Yes |
| Other operating systems supported | Android |
| Maximum refresh rate | 30 Hz |
| HDCP version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | CE |
| Technical details | |
| Country of origin | China |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions | |
| Weight | 62 g |
| Package width | 150 mm |
| Package depth | 225 mm |
| Package height | 150 mm |
| Package weight | 93.75 g |
| Package volume | 506.25 cm³ |
| Packaging data | |
| Manual | Yes |
| Package width | 150 mm |
| Package depth | 225 mm |
| Package height | 150 mm |
| Package weight | 93.75 g |
| Package volume | 506.25 cm³ |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 381 mm |
| Master (outer) case length | 302 mm |
| Master (outer) case height | 311 mm |
| Master (outer) case gross weight | 7.5 kg |
| Products per master (outer) case | 80 pc(s) |
| Master (outer) case volume | 35784.3 cm³ |
| Harmonized System (HS) code | 84733080 |
| UK Trade Tariff code | 84718000 |
| Other features | |
| Material | Aluminium |
