Description

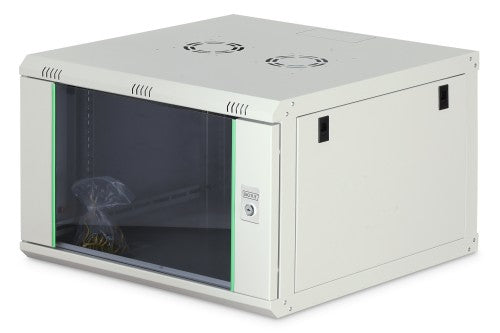

7U wall mounting cabinet, Dynamic Basic 385x600x600 mm, color grey (RAL 7035)
- Lockable glass door guarantees security
- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

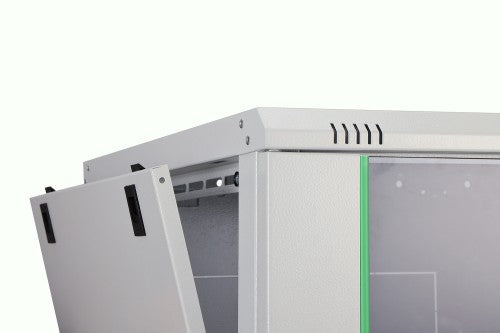

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.
Key Features
- Protection class IP20
- Lockable safety glass door with steel frame

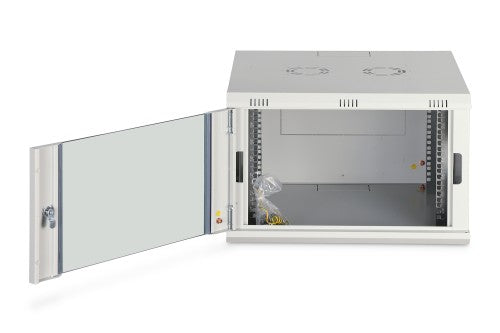

- 230° door opening angle

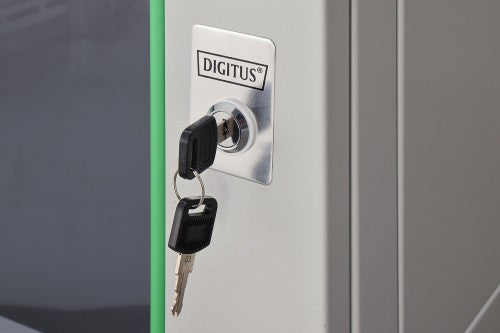

- 1-point locking on the front door
- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized
- 483 mm (19") profile rails are adjustable in depth and marked with the height unit
- 1.0 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated

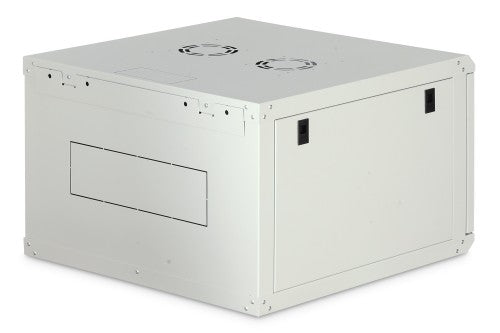

- Cable entry possible at the rear, roof and base (pre-punched cut-outs)

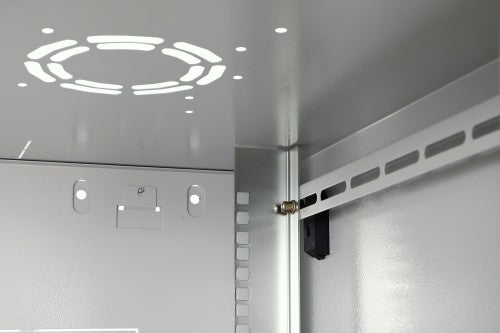

- Roof is prepared to accommodate a fan element (punched-out mounts)
- Ventilation slots for active and passive ventilation

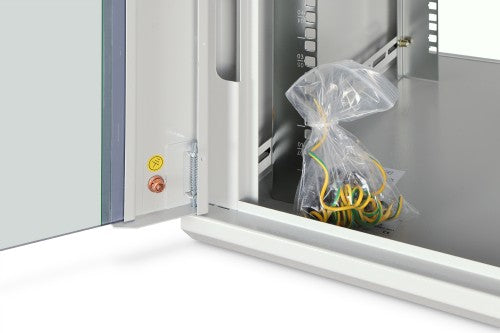

- 4 earthing points (base, side panel and front door) with protective cap
- Installation depth for components (standard maximum): 369 - 470 mm
Description
- Optimum ventilation and air extraction- Lockable glass door guarantees security
- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized
The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.
Specifications
| Weight & dimensions | |
|---|---|
| Package volume | 167958 cm³ |
| Package depth | 430 mm |
| Package width | 630 mm |
| Package weight | 18 kg |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 416 mm |
| Maximum weight capacity | 60 kg |
| Features | |
| Key lock | Yes |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Removable side panels | Yes |
| Front door construction | Glass |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 60 kg |
| Material | Steel |
| Product colour | Grey |
| Packaging data | |
| Package volume | 167958 cm³ |
| Package depth | 430 mm |
| Package width | 630 mm |
| Package weight | 18 kg |
| Technical details | |
| Package width | 630 mm |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Grey |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | Steel |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85381000 |
| UK Trade Tariff code | 94032080 |
