Description

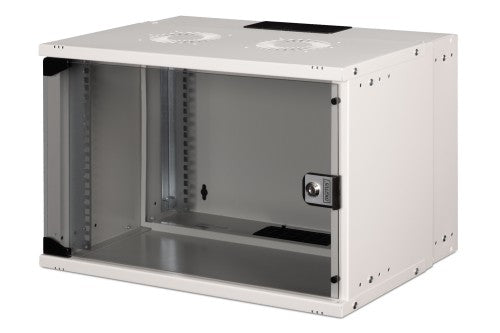

19" 7U wall mounting cabinet, SOHO Pro 370 x 540 x 400 mm, unmounted, grey
- Compact housing for 483 mm (19") installations
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg
Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO Pro series, you can install your network wherever you want. Available in four height units (4U, 7U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the top and bottom. Two pairs of galvanized 483 mm (19") profile rails, labelled with legible height units, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
Key Features
- Protection class IP20
- Lockable safety glass door, type 9473
- 200° door opening angle

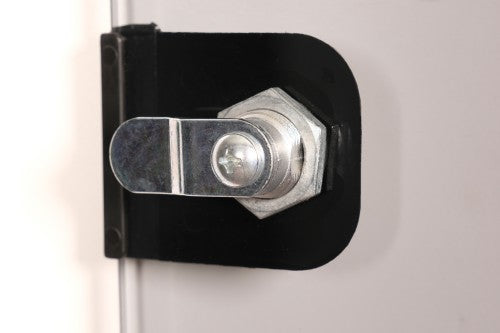

- 1-point locking on the front door

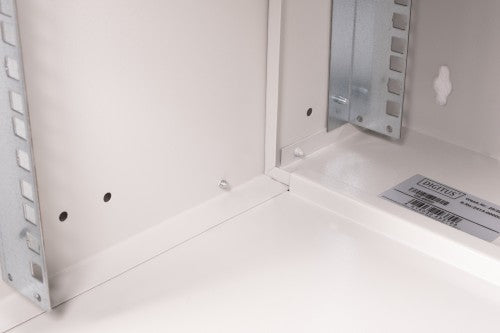

- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized
- 483 mm (19") profile rails are adjustable in depth
- 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated
- Cable entry with plastic cover in the roof and floor

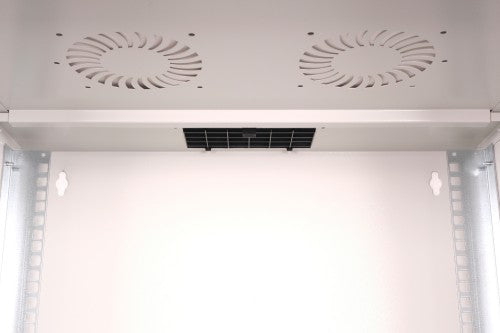

- Ventilation slots for active and passive ventilation
- Installation depth for components max.: 319.25 mm
- Product dimensions (H x W x D): 370 x 540 x 400 mm
Description
The DIGITUS® wall-mounted enclosure SOHO Pro series is characterized by efficient delivery in an optimized flat pack and particularly user-friendly installation.- Compact housing for 483 mm (19") installations
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg
Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO Pro series, you can install your network wherever you want. Available in four height units (4U, 7U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the top and bottom. Two pairs of galvanized 483 mm (19") profile rails, labelled with legible height units, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Adjustable mounting rails | Yes |
| Back door construction | Steel |
| Front door construction | Glass |
| Side panel construction | Steel |
| Cable management | Yes |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Material | Steel |
| Cooling type | Passive |
| Product colour | Grey |
| Rack rails | Yes |
| Adjustable depth | Yes |
| Door opening angle | 200° |
| Side panel style | Blind |
| Front door style | Glass door |
| Back door style | Blind |
| Weight & dimensions | |
| Package depth | 580 mm |
| Package width | 385 mm |
| Package height | 175 mm |
| Package weight | 9.88 kg |
| Width | 540 mm |
| Depth | 400 mm |
| Height | 370 mm |
| Weight | 9.11 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 60 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Quick installation guide | Yes |
| Package depth | 580 mm |
| Package width | 385 mm |
| Package height | 175 mm |
| Package weight | 9.88 kg |
| Technical details | |
| Package width | 385 mm |
| Package height | 175 mm |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Cooling type | Passive |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Grey |
| Material | |
| Material | Steel |
