Description
4U wall mounting patch bracket, 195x505x250 mm adjustable depth, stackable, black (RAL 9005)

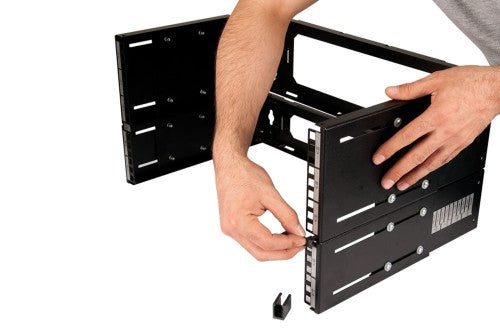

- stackable (fixing brackets included)

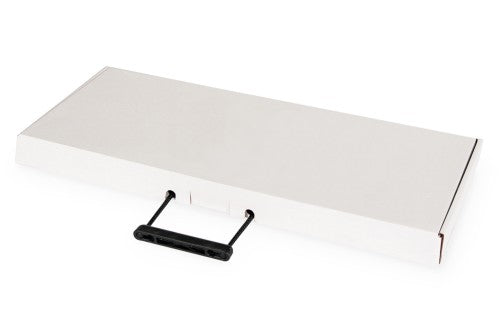

- Flat-pack delivery (folded)
- extensible with top-/base chassis (available seperately)
- rear side with cut-outs for cabling

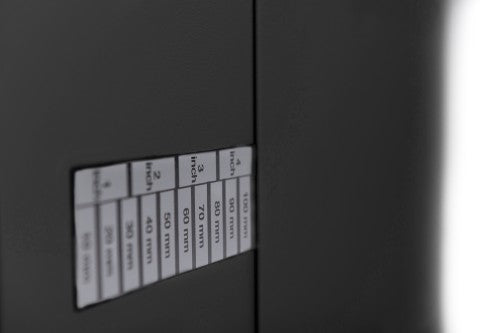

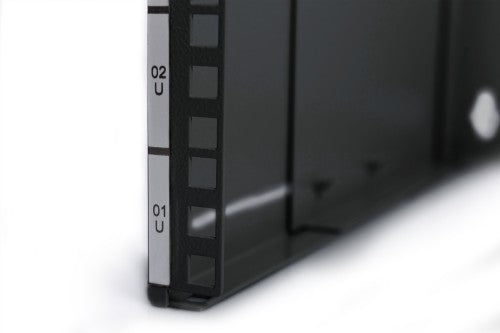

- height and depth indicators

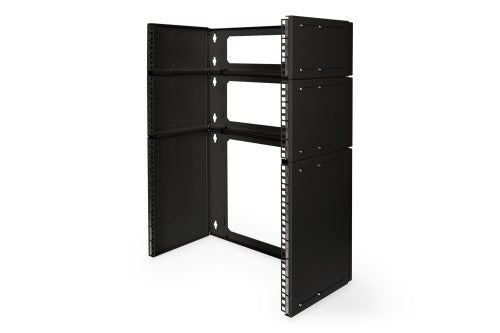

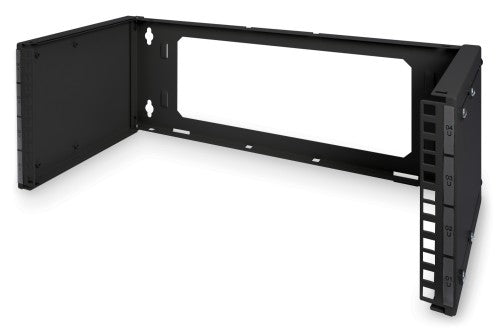

The Wall Mounting Patch Brackets for 483 mm (19”) installations are used for open mountings of 483 mm (19”) components. They are available in several height units to suit to your individual needs of space. The brackets are adjustable in depth (from 225 mm up to 399 mm) which makes the installation of larger components possible. The rear side has a big cut-out area that can be used to guide cables which come directly from the wall.
Key Features
- for installation of 483 mm (19”) components
- 1.1 - 1.5 strong sheet steel, powder coated

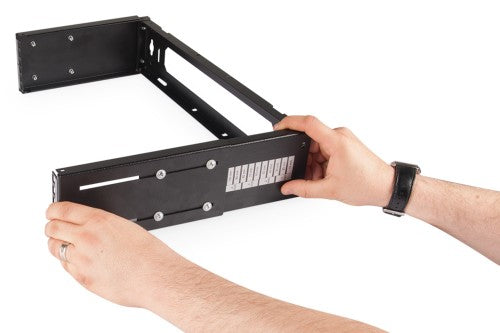

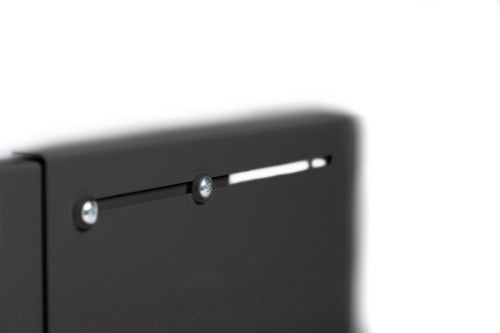

- adjustable depth (min. 225 mm; max. 399 mm)
- with four holes for wall mounting
- rear side with cut-out e.g. for cabling
Description
- adjustable depth- stackable (fixing brackets included)
- Flat-pack delivery (folded)
- extensible with top-/base chassis (available seperately)
- rear side with cut-outs for cabling
- height and depth indicators
The Wall Mounting Patch Brackets for 483 mm (19”) installations are used for open mountings of 483 mm (19”) components. They are available in several height units to suit to your individual needs of space. The brackets are adjustable in depth (from 225 mm up to 399 mm) which makes the installation of larger components possible. The rear side has a big cut-out area that can be used to guide cables which come directly from the wall.
Specifications
| Weight & dimensions | |
|---|---|
| Package volume | 4346 cm³ |
| Package depth | 205 mm |
| Package width | 530 mm |
| Package weight | 3.64 kg |
| Width | 505 mm |
| Maximum weight capacity | 15 kg |
| Features | |
| Rack capacity | 4U |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 15 kg |
| Product colour | Black |
| Packaging data | |
| Package volume | 4346 cm³ |
| Package depth | 205 mm |
| Package width | 530 mm |
| Package weight | 3.64 kg |
| Technical details | |
| Package width | 530 mm |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 4U |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Side panels included | Yes |
| Logistics data | |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| UK Trade Tariff code | 94032080 |
