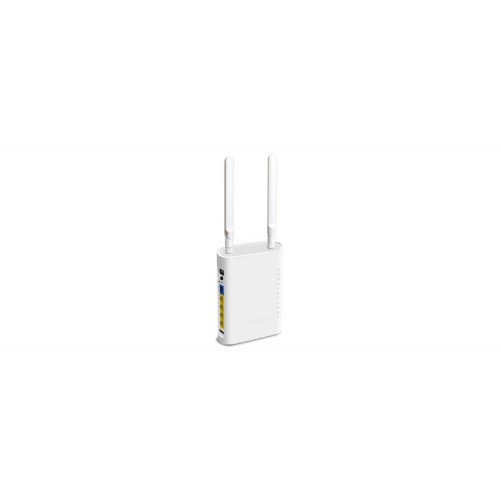

VigorAP 905 WiFi 6 AX3000 Mesh Wireless Access Point, 2.5GbE Uplink, 4x additional 1GbE for Wired Connectivity, Desk/Wall Form-factor
Key Features
- Wi-Fi 6 Mesh Wireless Access Point
- AX3000 – 11ax Dual Band Wireless
- WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
- Power through DC Power Adapter (included)
- Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
- 2.5Gb Ethernet Uplink & Four Additional GbE Interfaces
- Centrally Managed or Standalone Operation
- Root AP for AP Management
Description
The VigorAP 905 is a high-performance WiFi 6 Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The additional Gigabit Ethernet ports can be used as a mini switch to connect computers or printers. The AP can be mounted on a wall or placed on a desk.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximum data transfer rate |
3000 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wireless isolation |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Syslog |
Yes |
| On/off switch |
Yes |
| Reset button |
Yes |
| Firmware upgradeable |
Yes |
| Web-based management |
Yes |
| VLAN support |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximum data transfer rate |
3000 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Operating system installed |
DrayOS |
| Management features |
|---|
| VLAN support |
Yes |
| Syslog |
Yes |
| Firmware upgradeable |
Yes |
| Web-based management |
Yes |
| Command-line interface (CLI) |
Yes |
| Access point management |
Wi-Fi schedule |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wireless isolation |
Yes |
| VLAN support |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximum data transfer rate |
3000 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Maximum data transfer rate (2.4 GHz) |
600 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2400 Mbit/s |
| Number of simultaneously connected devices (max) |
256 |
| Wireless meshing |
Yes |
| Operating system installed |
DrayOS |
| Security |
|---|
| Auto Wireless Distribution System (WDS) |
Yes |
| Security algorithms |
802.1x RADIUS, SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA2, WPA3, WPS |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Whitelist |
Yes |
| Blacklist |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Service Set Identifier (SSID) features |
Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| Protocols |
|---|
| DHCP server |
Yes |
| DHCP client |
Yes |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Ports & interfaces |
|---|
| Internal RJ-45 ports quantity |
5 |
| USB 2.0 ports quantity |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (max) |
17 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Design |
|---|
| Housing material |
Plastic |
| Placement |
Desk, Shelf, Table, Wall |
| On/off switch |
Yes |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Power, USB, WLAN, Wi-Fi |
| WPS push button |
Yes |
| Antenna |
|---|
| Antenna type |
Internal & external |
| Antenna direction type |
Omni-directional |
| Antenna features |
Detachable antenna |
| Technical details |
|---|
| Reset button |
Yes |
| Firmware upgradeable |
Yes |
| WPS push button |
Yes |
| Indication |
|---|
| LED indicators |
Power, USB, WLAN, Wi-Fi |
| Software |
|---|
| Access Control List (ACL) |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Other features |
|---|
| WPS push button |
Yes |
