1x RJ-11 for G.fast/VDSL2 35b/ADSL2+, 1x 10/100/1000Base-TX RJ-45, 5x 10/100/1000Base-TX RJ-45, 2x USB 2.0, 2x Dual-Band (3.5dBi for 5GHz, 2.3dBi for 2.4GHz)
Description
The Ultimate DSL Router for SMB

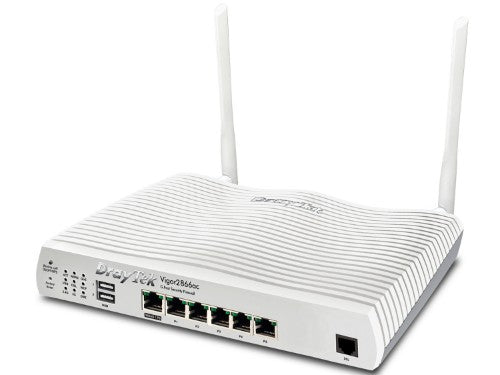

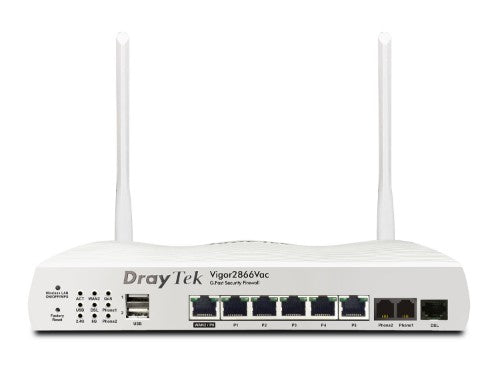

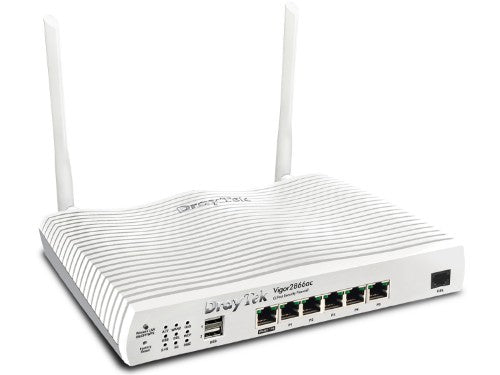

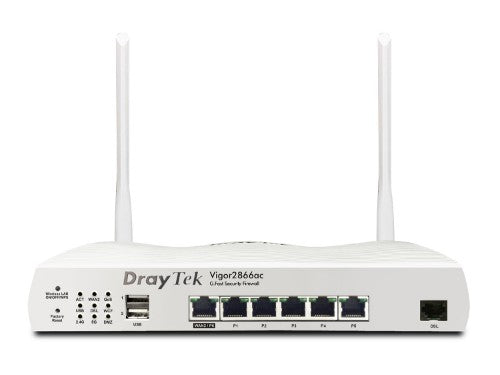

Vigor2866 Series is a dual WAN firewall router. It has one G.fast supported DSL WAN, delivering fiber-like speed up to 1 Gbps, and one configurable Ethernet WAN. The built-in DSL modem is backward compatible with VDSL2 profile 35b supervectoring and ADSL2+. Vigor2866 Series provides load-balancing and failover for your business continuity. Featuring VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more, this is the ultimate DSL router that does it all for SMB. The series includes built-in 802.11ax wireless models.
Hardware Acceleration
Without sacrificing traffic control features, such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph, Data Flow Monitor, the accelerator brings great performance.
VoIP First
VoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
Specifications
| Ethernet LAN features |
|---|
| Ethernet WAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Management features |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| Security |
|---|
| VPN tunnels quantity |
32 |
| Security algorithms |
WEP, WPA, WPA2, WPA3 |
| Firewall |
Yes |
| Access Control List (ACL) |
No |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2402 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| Network |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| VPN tunnels quantity |
32 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Static route |
Yes |
| Load balancing system |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
5 |
| DC-in jack |
Yes |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Product colour |
Grey |
| Indication light |
Yes |
| Antenna |
|---|
| Antenna design |
External |
| Antennas quantity |
2 |
| Power |
|---|
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
2 A |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
241 mm |
| Height |
46 mm |
| Depth |
166 mm |
