Description

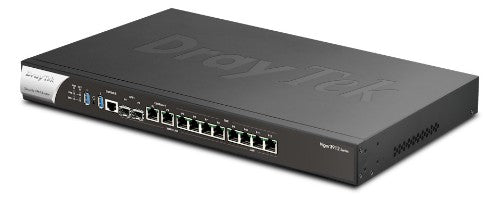

Vigor 3912 VPN Enterprise Router
Key Features
- Multi-WAN Router with over 12Gbps NAT Throughput

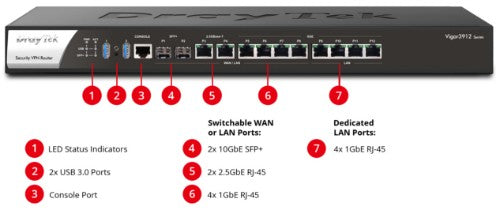

- 8x WAN/LAN Switchable Ports & 4x fixed Ethernet LAN Ports
- 2x 10GbE SFP+ and 2x 2.5GbE for WAN/LAN
- Up to 5Gbps Total IPsec VPN Throughput
- Up to 3.5Gbps Total SSL VPN Throughput
- 500 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 200 DrayTek SSL VPN or OpenVPN Tunnels
- Up to 100 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS central management platform
Description
The DrayTek Vigor 3912 series is a premium next generation multi-WAN router making it ideal for your most demanding and complex networks. This VPN concentration is the evolution of our powerful 3910 model with even faster hardware to solve your large network challenges.Specifications
| Data transmission | |
|---|---|
| IPSec VPN throughput | 5 Gbit/s |
| VoIP | Yes |
| Load balancing | Yes |
| Firewall throughput | 12.5 Gbit/s |
| VPN throughput | 5 Gbit/s |
| Firewall throughput | 12500 Mbit/s |
| VPN throughput | 5000 Mbit/s |
| Performance | |
| Reset button | Yes |
| Syslog | Yes |
| Network | |
| Maximum Number of VPN connections supported | 500 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Number of VPN connections | 500 |
| Number of users | 500 user(s) |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Number of VLANs | 100 |
| Multicast support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Static route | Yes |
| Dynamic routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Security | |
| Security algorithms | 3DES, DES, EAP, HTTPS, MD5, SHA-1, SHA-256 |
| VPN support | IPsec IKEv1 IKEv2 IKEv2 EAP IPsec-XAuth DrayTek SSL VPN OpenVPN WireGuard GRE over IPsec PPTP L2TP L2TP over IPsec |
| DDoS protection | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Protocols | |
| Management protocols | http, https, ssh, telnet, tr-069 |
| Routing protocols | BGP, OSPF |
| Management features | |
| On/off switch | Yes |
| LED indicators | Power, System, USB |
| Web-based management | Yes |
| Remote administration | yes |
| Management platform | VigorACS |
| URL filtering | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Connectivity technology | Wired |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 10 |
| Console port | RJ-45 |
| 10G (fiber) ports quantity | 2 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Built-in fan | Yes |
| Power | |
| Power consumption (typical) | 35 W |
| On/off switch | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
| Weight | 3.76 kg |
| Width | 443 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Screws included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Technical details | |
| Rack mounting | Yes |
| Form factor | 1U |
| Syslog | Yes |
| Other features | |
| Firewall throughput | 12500 Mbit/s |
| VPN throughput | 5000 Mbit/s |
