3x 10/100/1000Base-T, RJ-45, 2x USB 2.0, 1 Gbps, IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
Description

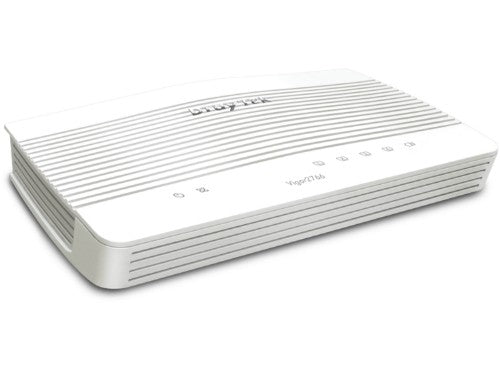

Vigor2766 Series has one G.fast supported DSL WAN, delivering fiber-like link rate up to 1 Gbps, and one configurable Ethernet WAN for backup. The built-in DSL modem is backward compatible with VDSL2 profile 35b supervectoring and ADSL2+. Featuring VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more, Vigor2766 Series is perfect for tech-savvies who would like to take full control of the network. The series includes models with built-in 11ac Wave 2 WiFi.
G.fast Modem
Integrated VDSL modem, supporting G.fast to deliver fiber-like DSL speed.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2766 Series to the remote offices and teleworkers over the Internet. Learn more
VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
VoIP Friendly
Vigor2766 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN. Learn more
Central AP Management
Use the Vigor2766 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more
Specifications
| Ethernet LAN features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Performance |
|---|
| Voice codecs |
G.711,G.711a,G.711ulaw,G.726,G.729,G.729A,G.729B |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.1Q |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Throughput |
1 Gbit/s |
| VLAN support |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| DSL features |
|---|
| ADSL |
Yes |
| ADSL2+ |
Yes |
| DSL |
Yes |
| VDSL |
Yes |
| VDSL2 |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Serial ports quantity |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
3 |
| RJ-11 ports quantity |
1 |
| Protocols |
|---|
| Management protocols |
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| VoIP protocols |
SIP, RTP/RTCP, ZRTP |
| Voice codecs |
G.711,G.711a,G.711ulaw,G.726,G.729,G.729A,G.729B |
| Supported network protocols |
PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP, PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| DHCP server |
Yes |
| Technical details |
|---|
| Voice codecs |
G.711,G.711a,G.711ulaw,G.726,G.729,G.729A,G.729B |
| LED indicators |
Yes |
| Product colour |
White |
| Security |
|---|
| Firewall |
Yes |
| Security algorithms |
HTTPS,SSH,WEP,WPA,WPA2,WPA3 |
| VPN support |
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
White |
| Power |
|---|
| Output voltage |
12 V |
| Output current |
2 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
207 mm |
| Depth |
131 mm |
| Height |
42 mm |
| Weight |
540 g |
