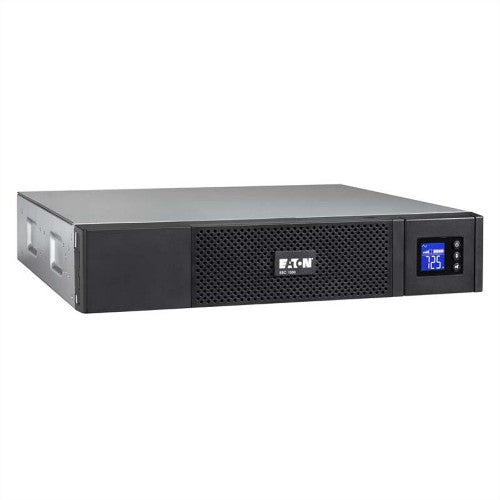

Eaton 5SC 1500I RACK2U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1050 W 8 AC outlet(s)

Rack 2U, 1500VA, 1050W, 220-240V, USB, RS232. 45dB, 440x405x86.2mm, 17.78kg, Black

Description

5SC UPS, 1500 VA, 1050 W, Input: C14, Outputs: (8) C13, Rack, 2U

Specifications

Power
Output frequency regulation	50/60 Hz
Output power	1050 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output power capacity	1.5 kVA
Performance
UPS topology	Line-Interactive
Power protection features	Overdischarge
Noise level	45 dB
Features
UPS topology	Line-Interactive
Output frequency regulation	50/60 Hz
Output power	1050 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power protection features	Overdischarge
Noise level	45 dB
Output power capacity	1.5 kVA
Input frequency	45/65 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Certification	IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
Display type	LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Harmonized System (HS) code	85078000
Certificates
Certification	IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
Weight & dimensions
Weight	17.8 kg
Width	440 mm
Height	86.2 mm
Depth	405 mm
Logistics data
Harmonized System (HS) code	85078000
