Description

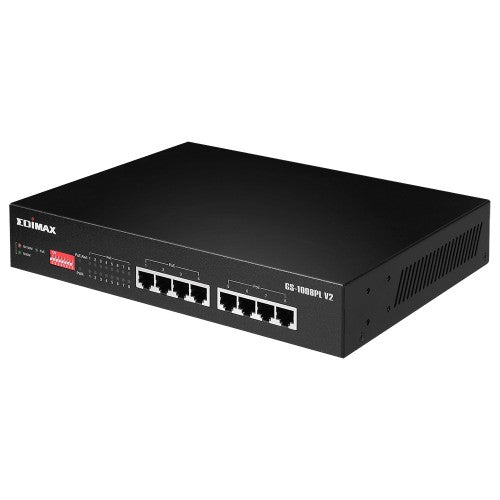

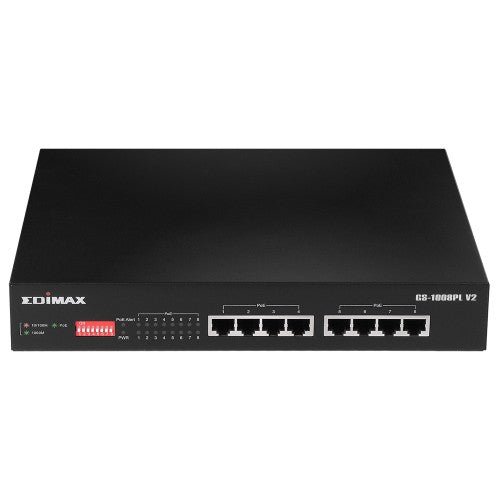

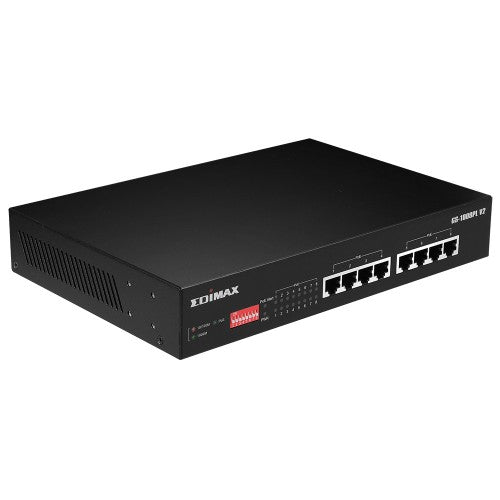

Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch
Break Through 100 Meters PoE Distance Limitation
Supports PoE power output over a distance up to 200 meters overcoming the 100 meters limit on Ethernet UTP cable with the PoE Extend “ON”, the GS-1008PL V2 provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Innovative Port-based VLAN
Port Isolated from Affecting Each Other
The GS-1008PL V2 features port-based VLAN where ports can be easily isolated from each other. This can help to prevent IP camera’s multicast or broadcast storms from affecting each other.
Easy Hardware QoS
Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
Safe Power Backfeed Protection
Avoid Damaging the PoE Ports
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch, PoE power backfeed protection
Key Features
- Gigabit High Speed PoE+: Equipped with 8 Gigabit PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 70W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated from each other to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid from being damaged by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment and Energy Efficient
- Fanless, Compact, Rack-Mount, Durable Metal Casing
Description
PoE Long Range ExtensionBreak Through 100 Meters PoE Distance Limitation
Supports PoE power output over a distance up to 200 meters overcoming the 100 meters limit on Ethernet UTP cable with the PoE Extend “ON”, the GS-1008PL V2 provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Innovative Port-based VLAN
Port Isolated from Affecting Each Other
The GS-1008PL V2 features port-based VLAN where ports can be easily isolated from each other. This can help to prevent IP camera’s multicast or broadcast storms from affecting each other.
Easy Hardware QoS
Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
Safe Power Backfeed Protection
Avoid Damaging the PoE Ports
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch, PoE power backfeed protection
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 4096 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 1.488 Mpps |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CE, FCC, LVD |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Certification | CE, FCC, LVD |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power | |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 70 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 265 mm |
| Depth | 184 mm |
| Height | 44 mm |
| Weight | 1.61 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
