215.9 mm x 6096 mm, A4, CIS, 27 - 413 g/m², LAN, USB 2.0 Type B, 3.6 kg
Description
Connect your business with this affordable and highly efficient standalone network scanner. It's the intelligent choice for business document management, offering the ability to scan to separate locations – at the touch of a button, allowing you to capture, convert and distribute scanned information within your organisation.
Shared

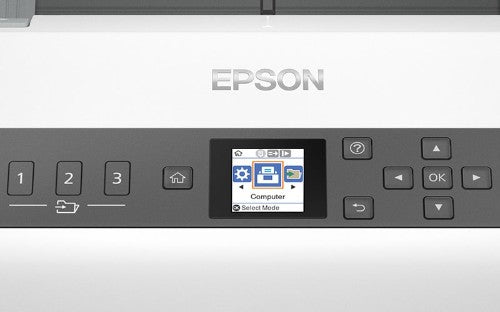

Scan to email, folder, FTP, SFTP, cloud services and Microsoft applications at the touch of a button¹. The control panel with built in 1.44’’ colour LCD display and three individual job buttons enables you to choose the correct job and send documents to the right destination without delay, making the digital files available across multiple departments.
High performance
With a high capacity 100 sheet ADF and scan speeds of up to 40ppm/80ipm, bulk jobs can be captured quickly and easily as a single file, with minimal user intervention.
Intelligent
Take control with a range of intelligent features, including ultra-sonic sensors and a paper protection function. Slow mode allows difficult media to be captured by reducing roller speed, without increasing file sizes. Double feed detection skip means difficult documents like envelopes and post-it notes can be processed rapidly.
Reliable
Paper protection, double feed and dirt detection warning ensure high quality digital images are captured carefully and precisely, from 27gsm to 413gsm. The Active Separation Roller System and on-board sensors help prevent document double-feeds and ensures every piece of paper is scanned accurately.
Specifications
| Scanning |
|---|
| Output greyscale depth |
8 bit |
| Output monochrome depth |
8 bit |
| Black/white scanning colour modes |
Monochrome |
| Maximum scan size |
215.9 x 6096 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
30 bit |
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
40 ppm |
| ADF scan speed (colour, A4) |
40 ppm |
| Input greyscale depth |
10 bit |
| Sensor type |
CIS |
| Light source |
ReadyScan LED |
| Scan file formats |
JPEG, PDF, TIFF |
| Daily duty cycle (max) |
4500 pages |
| Scan to |
E-mail, FTP, Network folder |
| Output resolutions |
75, 100, 150, 200, 240, 300, 600, 1200 dpi |
| Design |
|---|
| Built-in display |
Yes |
| Scanner type |
Sheet-fed scanner |
| Display diagonal |
3.81 cm (1.5") |
| Display |
LCD |
| Product colour |
Black, Grey |
| Colour display |
Yes |
| Performance |
|---|
| Sensor type |
CIS |
| Light source |
ReadyScan LED |
| Scan file formats |
JPEG, PDF, TIFF |
| Daily duty cycle (max) |
4500 pages |
| Scan to |
E-mail, FTP, Network folder |
| Scan drivers |
TWAIN, ISIS, SANE, WIA, ICA |
| Password protection |
Yes |
| Ultrasonic sensor |
Yes |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
100 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Plastic Card, Post Card(JPN) |
| Auto Document Feeder (ADF) media weight |
27 - 413 g/m² |
| Letter |
Yes |
| Legal |
Yes |
| ISO B-series sizes (B0...B9) |
B4, B5, B6 |
| ISO A-series sizes (A0...A9) |
A4, A5, A6 |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-B |
| USB port |
Yes |
| USB version |
2.0 |
| Software |
|---|
| Bundled software |
Epson Device Admin (EDA), Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager, Epson Scan 2, Webbrowser-Schnittstelle |
| Scan drivers |
TWAIN, ISIS, SANE, WIA, ICA |
| Power |
|---|
| Power consumption (typical) |
14 W |
| Power consumption (off) |
0.1 W |
| Input voltage |
100 - 240 V |
| Power supply type |
AC |
| Power consumption (sleep) |
1.5 W |
| AC input frequency |
50 - 60 Hz |
| Sleep mode |
Yes |
| Technical details |
|---|
| Products per pallet (UK) |
60 pc(s) |
| Black/white scanning colour modes |
Monochrome |
| Scanner type |
Sheet-fed scanner |
| Image formats supported |
BMP, JPEG, TIFF, PNG |
| Country of origin |
Indonesia |
| Product colour |
Black, Grey |
| Harmonized System (HS) code |
84716070 |
| Display |
|---|
| Display diagonal |
3.81 cm (1.5") |
| Display |
LCD |
| Media formats |
|---|
| Letter |
Yes |
| Legal |
Yes |
| ISO B-series sizes (B0...B9) |
B4, B5, B6 |
| ISO A-series sizes (A0...A9) |
A4, A5, A6 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| IPv6 support |
Yes |
| Packaging data |
|---|
| Package depth |
370 mm |
| Package weight |
4.93 kg |
| Package width |
270 mm |
| Package height |
320 mm |
| Products per pallet |
48 pc(s) |
| Quantity per pack |
1 pc(s) |
| Features |
|---|
| Country of origin |
Indonesia |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
25 - 60 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Storage relative humidity (H-H) |
15 - 85% |
| Weight & dimensions |
|---|
| Package depth |
370 mm |
| Package weight |
4.93 kg |
| Width |
296 mm |
| Depth |
169 mm |
| Height |
167 mm |
| Weight |
3.6 kg |
| Package width |
270 mm |
| Package height |
320 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Bundled software |
Epson Device Admin (EDA), Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager, Epson Scan 2, Webbrowser-Schnittstelle |
| Other features |
|---|
| Ethernet LAN |
Yes |
| Scanner type |
Sheet-fed scanner |
| Image formats supported |
BMP, JPEG, TIFF, PNG |
| Country of origin |
Indonesia |
| Cabling technology |
10/100/1000Base-T(X) |
| Products per pallet |
48 pc(s) |
| Output resolutions |
75, 100, 150, 200, 240, 300, 600, 1200 dpi |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per pallet |
48 pc(s) |
| Quantity per pack |
1 pc(s) |
| Products per pallet (UK) |
60 pc(s) |
| Harmonized System (HS) code |
84716070 |
