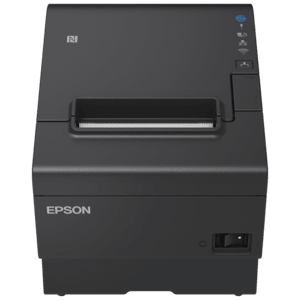

Epson TM-T88VII (111) 180 x 180 DPI Wired & Wireless Thermal POS printer

Epson TM-T88VII (111), Thermal, POS printer, 180 x 180 DPI, 500 mm/sec, 1.41 x 3.39 mm, Text, Graphic, Barcode, 2D barcode

Description

Epson TM-T88VII (111). Print technology: Thermal, Type: POS printer, Maximum resolution: 180 x 180 DPI. Printing media thickness: 48 - 80 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 80 mm. Connectivity technology: Wired & Wireless, USB connector: USB Type-A / USB Type-B, Serial interface type: RS-232. Sound pressure level (printing): 52 dB, Sound pressure level (standby): 52 dB, Mean time between failures (MTBF): 360000 h. Product colour: White

Specifications

Printing
Character sets	ANK
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Character size	1.41 x 3.39 mm
Printing characters	Text, Graphic, Barcode, 2D barcode
Performance
Character sets	ANK
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Character size	1.41 x 3.39 mm
Paper handling
Media thickness	48 - 80 mm
Supported paper width	80 mm
Printing media thickness	48 - 80 µm
Maximum roll diameter	8.3 cm

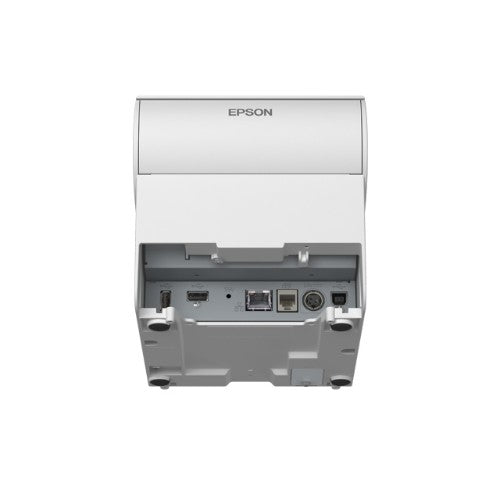

Ports & interfaces
Connectivity technology	Wired & Wireless
USB port	Yes
USB connector	USB Type-A / USB Type-B
Serial interface	Yes
Serial interface type	RS-232
Near Field Communication (NFC)	Yes
Optional connectivity	Wireless LAN
Network
Ethernet LAN	Yes
Print technology
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Character size	1.41 x 3.39 mm
Column capacity	42/56
Print quality
Maximum resolution	180 x 180 DPI
Technical details
Pre-installed software	Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Character sets	ANK
Built-in sensors details	Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
Product colour	White
Buffer size	4 KB
Autocutter durability	3 million cuts
Products per pallet	112 pc(s)
Quantity per pack	1 pc(s)
Country of origin	Philippines
Products per pallet (UK)	168 pc(s)
Lifetime	20000000 lines
Changeable interface	Yes
Harmonized System (HS) code	84433210
Features
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Character sets	ANK
Built-in sensors details	Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
Mean time between failures (MTBF)	360000 h
Product colour	White
Certification	CE
Autocutter durability	3 million cuts
Sound pressure level (printing)	52 dB
Print head life	200 km
Country of origin	Philippines
Sound pressure level (standby)	52 dB

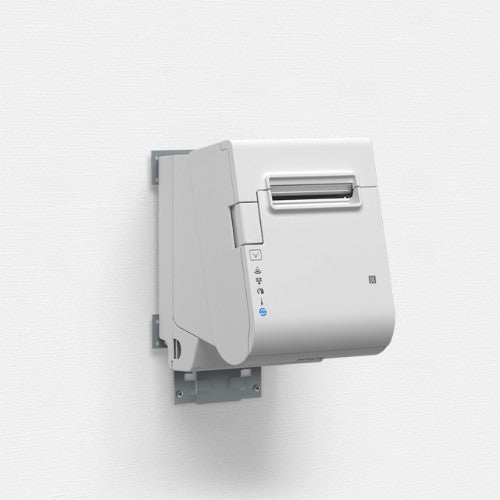

Wall mountable	Yes
Mounting position	Horizontal/Vertical
Paper save function	Yes
Design
Product colour	White
Memory
Buffer size	4 KB
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power consumption	27900 mA
Power consumption (printing)	27.9 W
Power consumption (standby)	1400 mA
Power consumption (standby)	1.4 W
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
System requirements
Pre-installed software	Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print
Certificates
Certification	CE
Weight & dimensions
Width	145 mm
Depth	195 mm
Height	148 mm
Package width	195 mm
Package depth	235 mm
Package height	260 mm
Package weight	2.7 kg
Weight	1.7 kg
Packaging data
Package width	195 mm
Package depth	235 mm
Package height	260 mm
Package weight	2.7 kg
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Software
Pre-installed software	Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print
Logistics data
Products per pallet	112 pc(s)
Products per pallet (UK)	168 pc(s)
Other features
Mean cycles between failures (MCBF)	70000000
Buffer size	4 KB
Print head life	200 km
